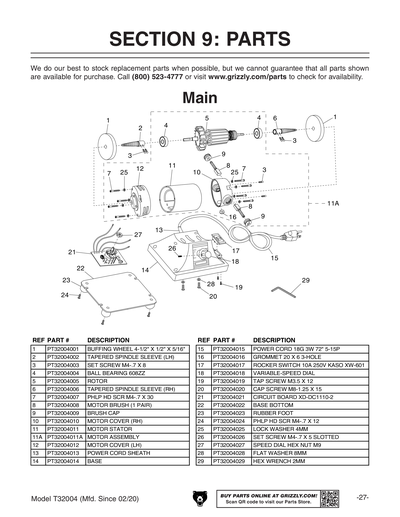

Parts for T32004 3/4 HP Variable-Speed Mini Benchtop Buffer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BUFFING WHEEL 4-1/2" X 1/2 X 5/16"
Price
N/A
2
TAPERED SPINDLE SLEEVE (LH)
Price
N/A
3
SET SCREW M4-.7 X 8
Price
N/A
4
BALL BEARING 608ZZ
Price
N/A
5
ROTOR
6
TAPERED SPINDLE SLEEVE (RH)
Price
N/A
7
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
8
MOTOR BRUSH (1 PAIR)
9
BRUSH CAP
10
MOTOR COVER (RH)
11
MOTOR STATOR
11A
MOTOR ASSEMBLY
12
MOTOR COVER (LH)
13
POWER CORD SHEATH
14
BASE
15
POWER CORD 18G 3W 72" 5-15P
16
GROMMET 20 X 6 3-HOLE
17
ROCKER SWITCH 10A 250V KASO XW-601
18
VARIABLE-SPEED DIAL
Price
N/A
19
TAP SCREW M3.5 X 12
Price
N/A
20
CAP SCREW M8-1.25 X 15
Price
N/A
21
CIRCUIT BOARD XD-DC1110-2
22
BASE BOTTOM
23
RUBBER FOOT
24
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
25
LOCK WASHER 4MM
Price
N/A
26
CIRCUIT BOARD XD-1110 W/ NUT & SCREW
Price
N/A
27
CIRCUIT BOARD XD-1110 W/ NUT & SCREW
Price
N/A
28
Now: PW01M
FLAT WASHER 8MM
Price
N/A
29
HEX WRENCH 2MM
Price
N/A

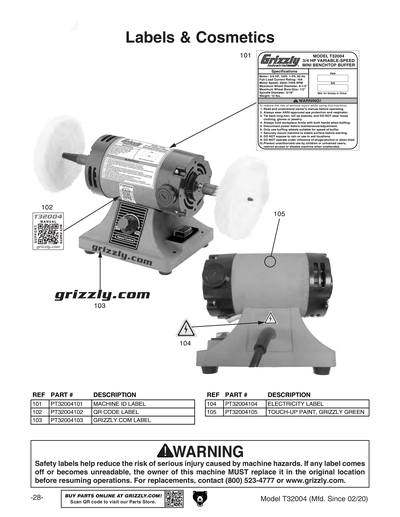

101
MACHINE ID LABEL
102
QR CODE LABEL
103
GRIZZLY.COM LABEL 3.50",BLACK
Price
N/A
104
ELECTRICITY 0.7W X 0.6H
Price
N/A
105
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T32004 MFD-02.20+ V1.05.20
