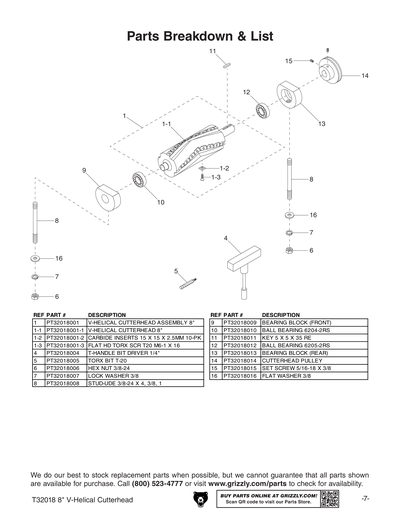

Parts for T32018 8" V-helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
V-HELICAL CUTTERHEAD ASSEMBLY 8"
1-1
V-HELICAL CUTTERHEAD 8"
1-2
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10 Pack
Price
N/A
1-3
FLAT HD TORX SCR T20 M6-1 X 16
Price
N/A
4
T-HANDLE BIT DRIVER 1/4"
Price
N/A
5
Now: PBT01
TORX BIT T-20
Price
N/A
6
Now: PN11
HEX NUT 3/8-24
Price
N/A
7
Now: PLW04
LOCK WASHER 3/8
Price
N/A
8
STUD-UDE 3/8-24 X 4, 3/8, 1
Price
N/A
9
BEARING BLOCK (FRONT)
10
BALL BEARING 6204-2RS
Price
N/A
11
KEY 5 X 5 X 35 RE
12
BALL BEARING 6205-2RS
Price
N/A
13
BEARING BLOCK (REAR)
14
CUTTERHEAD PULLEY
Price
N/A
15
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
16
Now: PW02
FLAT WASHER 3/8
Price
N/A
MAN
MANUAL T32018 MFD-11.20+ V1.05.21
