Parts for T32304 - 10" 3/4 HP Meat-Cutting Bandsaw

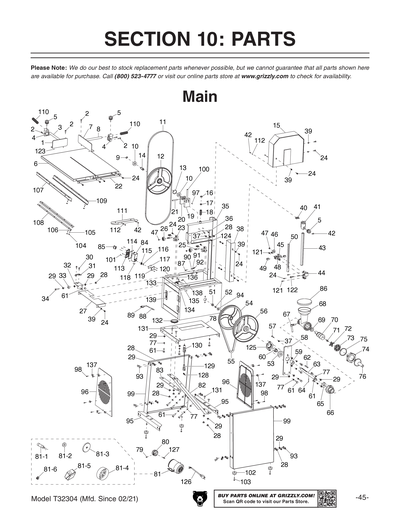

Part Diagram for T32304
Part Diagram for T32304
Part Diagram for T32304
Part Diagram for T32304
Part Diagram for T32304
Part Diagram for T32304
Part Diagram for T32304
Part Diagram for T32304

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

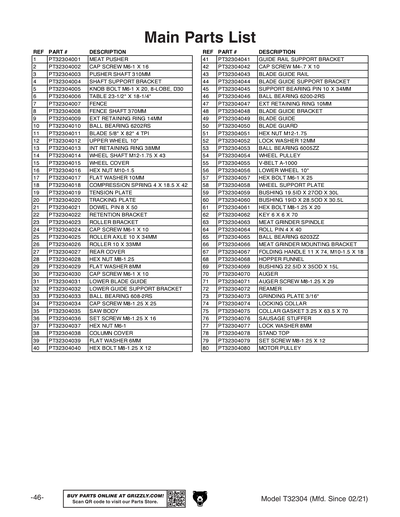

Ref #
Part #
Description
1
MEAT PUSHER
Price
$4.70
2
CAP SCREW M6-1 X 16
Price
N/A
3
PUSHER SHAFT 248MM
Price
$1.90
4
SHAFT SUPPORT BRACKET
Price
$3.65
5
KNOB BOLT M6-1 X 20, 8-LOBE, D30
Price
$1.90
6
TABLE 23-1/2" X 18-1/4"
Price
$55.35
7
FENCE
Price
$13.95
8
FENCE SHAFT 305MM
Price
$11.65
9
EXT RETAINING RING 14MM
Price
N/A
10
BALL BEARING 6202RS
Price
N/A
11
BLADE 5/8" X 82" 4 TPI
Price
$18.00
12
UPPER WHEEL 10"
Price
$21.25
13
INT RETAINING RING 38MM
Price
N/A
14
WHEEL SHAFT M12-1.75 X 43
Price
$7.20
15
WHEEL COVER
Price
$27.00
16
HEX NUT M10-1.5
Price
N/A
17
FLAT WASHER 10MM
Price
N/A
18
COMPRESSION SPRING 4 X 18.5 X 42
Price
$1.90
19
TENSION PLATE
Price
$1.90
20
TRACKING PLATE
Price
$1.90
21
DOWEL PIN 8 X 50
Price
$1.90
22
RETENTION BRACKET
Price
$3.50
23
ROLLER BRACKET
Price
$1.90
24
CAP SCREW M6-1 X 10
Price
N/A
25
ROLLER AXLE 10 X 34MM
Price
$5.40
26
ROLLER 10 X 33MM
Price
$2.25
27
REAR COVER
Price
$14.40
28
HEX NUT M8-1.25
Price
N/A
29
FLAT WASHER 8MM
Price
N/A
30
CAP SCREW M6-1 X 10
Price
N/A
31
LOWER BLADE GUIDE
Price
$1.90
32
LOWER GUIDE SUPPORT BRACKET
Price
$1.90
33
BALL BEARING 608-2RS
Price
N/A
34
CAP SCREW M8-1.25 X 25
Price
N/A
35
SAW BODY
Price
$71.60
36
SET SCREW M8-1.25 X 16
Price
N/A
37
HEX NUT M6-1
Price
N/A
38
COLUMN COVER
Price
$19.85
39
FLAT WASHER 6MM
Price
N/A
40
HEX BOLT M8-1.25 X 12
Price
N/A
41
GUIDE RAIL SUPPORT BRACKET
Price
$7.20
42
CAP SCREW M4-.7 X 10
Price
N/A
43
BLADE GUIDE RAIL
Price
$5.45
44
BLADE GUIDE SUPPORT BRACKET
Price
$3.65
45
SUPPORT BEARING PIN 10 X 34MM
Price
$2.60
46
BALL BEARING 6200-2RS
Price
N/A
47
EXT RETAINING RING 10MM
Price
N/A
48
BLADE GUIDE BRACKET
Price
$2.25
49
BLADE GUIDE
Price
$2.25
50
BLADE GUARD
Price
$7.20
51
HEX NUT M12-1.75
Price
N/A
52
LOCK WASHER 12MM
Price
N/A
53
BALL BEARING 6005ZZ
Price
N/A
54
WHEEL PULLEY
Price
$19.85
55
V-BELT A-1000
Price
$7.20
56
LOWER WHEEL 10"
Price
$25.60
57
HEX BOLT M6-1 X 25
Price
N/A
58
WHEEL SUPPORT PLATE
Price
$3.65
59
BUSHING 19.5ID X 27OD X 30L
Price
$2.25
60
BUSHING 19ID X 28.5OD X 30.5L
Price
$1.90
61
HEX BOLT M8-1.25 X 20
Price
N/A
62
KEY 6 X 6 X 70
Price
$1.90
63
MEAT GRINDER SPINDLE
Price
$10.85
64
ROLL PIN 4 X 40
Price
N/A
65
BALL BEARING 6203ZZ
Price
N/A
66
MEAT GRINDER MOUNTING BRACKET
Price
$22.35
67
FOLDING HANDLE 11 X 74, M10-1.5 X 18
Price
$2.10
68
HOPPER FUNNEL
Price
$12.65
69
BUSHING 22.5ID X 35OD X 15L
Price
$3.15
70
AUGER
Price
$12.35
71
AUGER SCREW M8-1.25 X 29
Price
$2.10
72
REAMER
Price
$6.50
73
GRINDING PLATE 3/16"
Price
$6.50
74
LOCKING COLLAR
Price
$3.15
75
COLLAR GASKET 3.25 X 63.5 X 70
Price
$2.40
76
SAUSAGE STUFFER
Price
$3.25
77
LOCK WASHER 8MM
Price
N/A
78
STAND TOP
Price
$5.45
79
SET SCREW M8-1.25 X 12
Price
N/A
80
MOTOR PULLEY
Price
$7.20

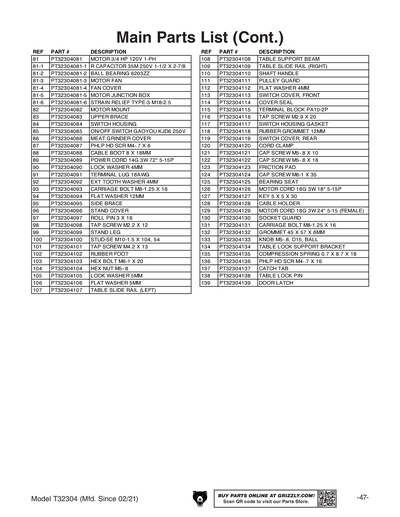

81
MOTOR 3/4 HP 120V 1-PH
Price
$205.25
81-1
R CAPACITOR 35M 250V 1-1/2 X 2-7/8
Price
$5.45
81-2
BALL BEARING 6203ZZ
Price
N/A
81-3
MOTOR FAN
Price
$4.70
81-4
FAN COVER
Price
$5.45
81-5
MOTOR JUNCTION BOX
Price
$2.90
81-6
STRAIN RELIEF TYPE-3 M18-2.5
Price
$2.90
82
MOTOR MOUNT
Price
$3.65
83
UPPER BRACE
Price
$3.65
84
SWITCH HOUSING
Price
$1.90
85
ON/OFF SWITCH GAOYOU KJD6 250V
Price
$13.70
86
MEAT GRINDER COVER
Price
$2.70
87
PHLP HD SCR M4-.7 X 6
Price
N/A
88
CABLE BOOT 8 X 18MM
Price
$1.90
89
POWER CORD 14G 3W 72" 5-15P
Price
$10.85
90
LOCK WASHER 4MM
Price
N/A
91
TERMINAL LUG 18AWG
Price
$1.90
92
EXT TOOTH WASHER 4MM
Price
N/A
93
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
94
FLAT WASHER 12MM
Price
N/A
95
SIDE BRACE
Price
$5.45
96
STAND COVER
Price
$7.20
97
ROLL PIN 3 X 16
Price
N/A
98
TAP SCREW M4 X 12
Price
N/A
99
STAND LEG
Price
$16.20
100
STUD-SE M10-1.5 X 104, 54
Price
$1.90
101
TAP SCREW M4.2 X 13
Price
$1.90
102
RUBBER FOOT
Price
$1.90
103
HEX BOLT M6-1 X 20
Price
N/A
104
HEX NUT M5-.8
Price
N/A
105
LOCK WASHER 5MM
Price
N/A
106
FLAT WASHER 5MM
Price
N/A
107
TABLE SLIDE RAIL (LEFT)
Price
$8.35
108
TABLE SUPPORT BEAM
Price
$7.20
109
TABLE SLIDE RAIL (RIGHT)
Price
$8.35
110
SHAFT HANDLE
Price
$3.65
111
PULLEY GUARD
Price
$2.70
112
FLAT WASHER 4MM
Price
N/A
113
ON/OFF SWITCH GAOYOU KJD6 250V
Price
N/A
114
ON/OFF SWITCH GAOYOU KJD6 250V
Price
N/A
115
ON/OFF SWITCH GAOYOU KJD6 250V
Price
N/A
116
TAP SCREW M6 X 20
Price
N/A
117
ON/OFF SWITCH GAOYOU KJD6 250V
Price
N/A
118
ON/OFF SWITCH GAOYOU KJD6 250V
Price
N/A
119
ON/OFF SWITCH GAOYOU KJD6 250V
Price
N/A
120
ON/OFF SWITCH GAOYOU KJD6 250V
Price
N/A
121
CAP SCREW M5-.8 X 10
Price
N/A
122
CAP SCREW M5-.8 X 16
Price
N/A
123
FRICTION PAD
Price
$7.20
124
CAP SCREW M6-1 X 35
Price
N/A
125
BEARING SEAT
Price
$3.65
126
MOTOR CORD 18G 3W 18" 5-15P
Price
$7.20
127
KEY 5 X 5 X 30
Price
N/A
128
CABLE HOLDER
Price
$1.90
129
MOTOR CORD 18G 3W 24" 5-15 (FEMALE)
Price
$2.90
130
SOCKET GUARD
Price
$1.90
131
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
132
GROMMET 45 X 57 X 6MM
Price
$1.90
133
KNOB M5-.8, D15, BALL
Price
$1.90
134
TABLE LOCK SUPPORT BRACKET
Price
$1.90
135
COMPRESSION SPRING 0.7 X 8.7 X 18
Price
$1.90
136
PHLP HD SCR M4-.7 X 16
Price
N/A
137
CATCH TAB
Price
$1.90
138
TABLE LOCK PIN
Price
$1.90
139
DOOR LATCH
Price
$1.90

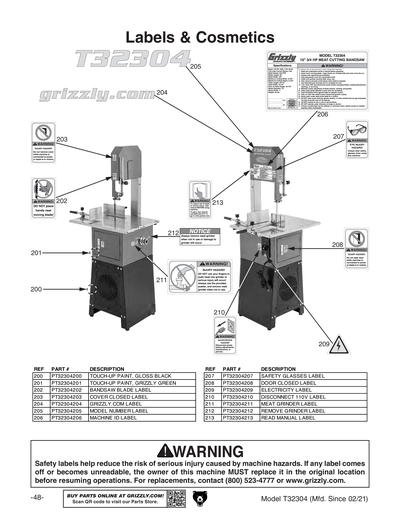

200
GLOSSY BLACK
Price
N/A
201
N/S GRIZZLY GREEN G1023S
Price
N/A
202
BANDSAW BLADE 2W X 3.3H V2.04.08
Price
N/A
203
COVER CLOSED LABEL
Price
$1.25
204
GRIZZLY.COM LABEL 7",GRAY
Price
N/A
205
MODEL NUMBER LABEL
Price
$2.20
206
MACHINE ID LABEL
Price
$1.60
207
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
208
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
209
ELECTRICITY 1.4W X 1.2H
Price
N/A
210
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
211
MEAT GRINDER LABEL
Price
$1.60
212
REMOVE GRINDER LABEL
Price
$1.25
213
READ MANUAL 1.5W X 2.5H
Price
N/A
214
Nameplate - Mini
Price
N/A
MAN
MANUAL T32304 MFD-02.21 V1.04.21
Price
$4.75
