Parts for T32336 4-Gallon Oil-Free Quiet Series Air Compressor

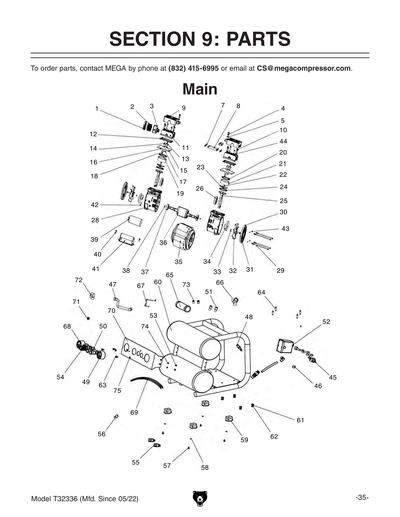

Parts Diagrams for T32336 - 4-Gallon Oil-Free Quiet Series Air Compressor

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

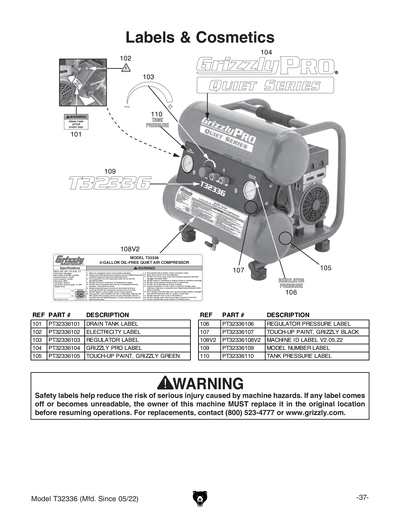

Parts List for Parts for T32336 4-Gallon Oil-Free Quiet Series Air Compressor

101
DRAIN TANK LABEL
Price
N/A
102
ELECTRICITY 0.5W X 0.4H
Price
N/A
103
REGULATOR LABEL
$16.40
Enter quantity between 1 and 99
104
GRIZZLY PRO LABEL
Price
N/A
105
N/S GRIZZLY GREEN G1023S
Price
N/A
106
REGULATOR PRESSURE LABEL
$16.40
Enter quantity between 1 and 99
107
GLOSSY BLACK
Price
N/A
108
MACHINE ID LABEL V1
$16.40
Enter quantity between 1 and 99
108V2
MACHINE ID LABEL V2.05.22
$16.40
Enter quantity between 1 and 99
109
MODEL NUMBER LABEL
$16.40
Enter quantity between 1 and 99
110
TANK PRESSURE LABEL
$16.40
Enter quantity between 1 and 99
MAN
MANUAL T32336 MFD-11.20-04.22 V1.04.22
$14.65
Enter quantity between 1 and 99
MANV2
MANUAL T32336 MFD-05.22+ V2.04.22
$14.65
Enter quantity between 1 and 99
