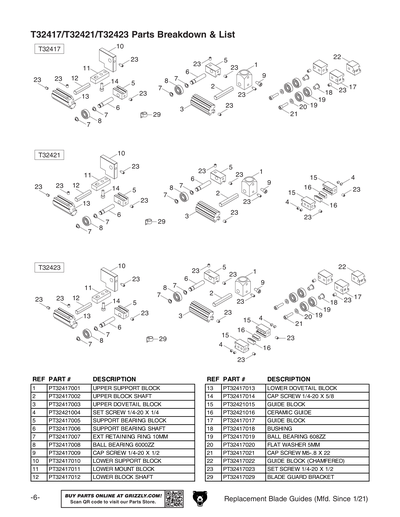

Parts for T32417 14" Bandsaw Blade Guide 10-Bearing Upgrade Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
UPPER SUPPORT BLOCK
2
UPPER BLOCK SHAFT
3
UPPER DOVETAIL BLOCK
5
SUPPORT BEARING BLOCK
6
SUPPORT BEARING SHAFT
7
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
8
BALL BEARING 6000ZZ
Price
N/A
9
CAP SCREW 1/4-20 X 1/2
Price
N/A
10
LOWER SUPPORT BLOCK
11
LOWER MOUNT BLOCK
12
LOWER BLOCK SHAFT
13
LOWER DOVETAIL BLOCK
14
CAP SCREW 1/4-20 X 5/8
Price
N/A
17
GUIDE BLOCK
18
BUSHING
19
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
20
Now: PW02M
FLAT WASHER 5MM
Price
N/A
21
CAP SCREW M5-.8 X 22
Price
N/A
22
GUIDE BLOCK (CHAMFERED)
23
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
29
BLADE GUARD BRACKET
MAN
MANUAL T32417-30 MFD-01.21+ V1.09.21
