Parts for T32428 - 37" Bear Roll Outfeed System

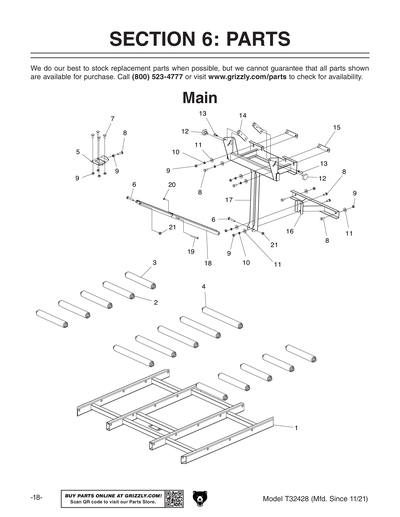

Part Diagram for T32428
Part Diagram for T32428
Part Diagram for T32428
Part Diagram for T32428
Part Diagram for T32428
Part Diagram for T32428

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

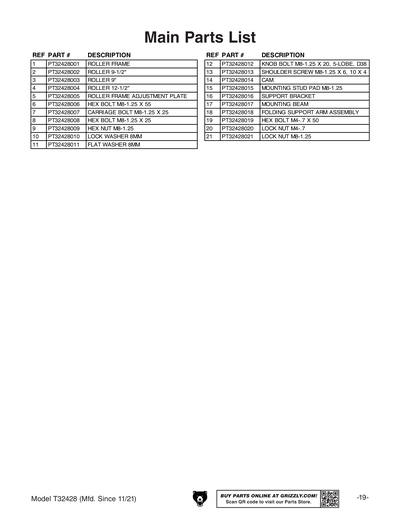

Ref #
Part #
Description
1
Price
$44.60
2
Price
$18.00
3
Price
$18.00
4
Price
$18.00
5
ROLLER FRAME ADJUSTMENT PLATE
Price
$4.70
6
HEX BOLT M8-1.25 X 55
Price
N/A
7
CARRIAGE BOLT M8-1.25 X 25
Price
N/A
8
HEX BOLT M8-1.25 X 25
Price
N/A
9
HEX NUT M8-1.25
Price
N/A
10
LOCK WASHER 8MM
Price
N/A
11
FLAT WASHER 8MM
Price
N/A
12
KNOB BOLT M8-1.25 X 20, 5-LOBE, D38
Price
$4.70
13
SHOULDER SCREW M8-1.25 X 6, 10 X 4
Price
$4.50
14
Price
$4.70
15
MOUNTING STUD PAD M8-1.25
Price
$8.95
16
Price
$35.95
17
Price
$44.60
18
FOLDING SUPPORT ARM ASSEMBLY
Price
$22.35
19
Price
$2.60
20
LOCK NUT M4-.7
Price
N/A
21
LOCK NUT M8-1.25
Price
N/A

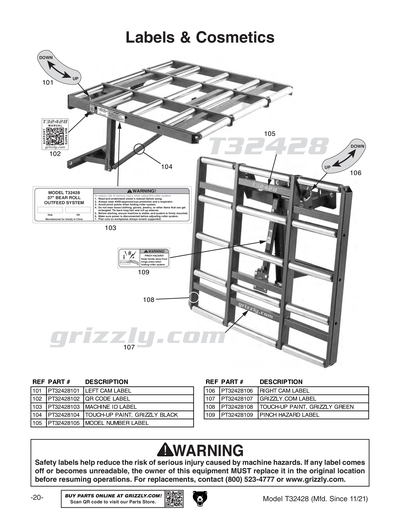

101
Price
$4.10
102
Price
$4.10
103
Price
$18.45
104
GLOSSY BLACK
Price
N/A
105
Price
$18.45
106
Price
$4.10
107
GRIZZLY.COM LABEL 8.125",BEIGE
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
Price
$4.10
MAN
MANUAL T32428 MFD-11.21+ V1.01.22
Price
$9.50
