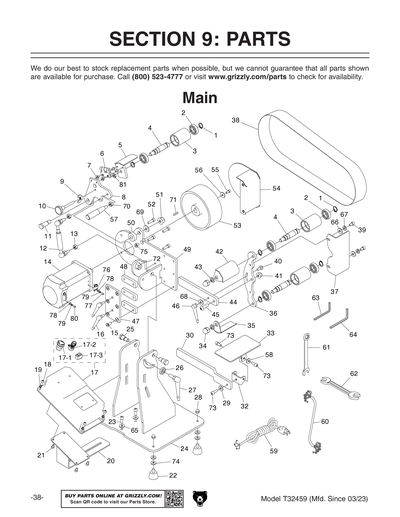

Parts for T32459 2" x 42" Knife-Making Belt Sander/Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

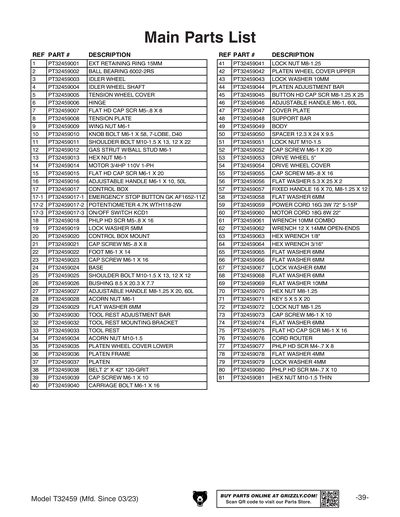

1
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
2
BALL BEARING 6002-2RS
Price
N/A
3
IDLER WHEEL
4
IDLER WHEEL SHAFT
5
TENSION WHEEL COVER
6
HINGE
7
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
8
TENSION PLATE
9
WING NUT M6-1
Price
N/A
10
KNOB BOLT M6-1 X 58, 7-LOBE, D40
11
SHOULDER BOLT M10-1.5 X 13, 12 X 22
12
GAS STRUT W/BALL STUD M6-1
13
Now: PN01M
HEX NUT M6-1
Price
N/A
14
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
14-1
MOTOR FAN COVER
14-2
MOTOR FAN
15
FLAT HD CAP SCR M6-1 X 20
Price
N/A
16
ADJUSTABLE HANDLE M6-1 X 10, 50L
17
CONTROL BOX
17-1
EMERGENCY STOP BUTTON GK AF1652-11Z
17-2
POTENTIOMETER 4.7K WTH118-2W
17-3
ON/OFF SWITCH KCD1
18
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
19
LOCK WASHER 5MM
Price
N/A
20
CONTROL BOX MOUNT
21
CAP SCREW M5-.8 X 8
Price
N/A
22
FOOT M6-1 X 14
23
CAP SCREW M6-1 X 16
Price
N/A
24
BASE
25
SHOULDER BOLT M10-1.5 X 13, 12 X 12
26
BUSHING 8.5 X 20.3 X 7.7
27
ADJUSTABLE HANDLE M8-1.25 X 20, 60L
28
Now: PN35M
ACORN NUT M6-1
Price
N/A
29
Now: PW03M
FLAT WASHER 6MM
Price
N/A
30
TOOL REST ADJUSTMENT BAR
Item is no longer available
Price
N/A
32
TOOL REST MOUNTING BRACKET
33
TOOL REST
34
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
35
PLATEN WHEEL COVER LOWER
36
PLATEN FRAME
37
PLATEN
37-1
GRAPHITE PAD 2W X 9L IN
Price
N/A
38
BELT 2" X 42" 120-GRIT
39
CAP SCREW M6-1 X 10
Price
N/A
40
CARRIAGE BOLT M6-1 X 16
Price
N/A
41
LOCK NUT M8-1.25
Price
N/A
42
PLATEN WHEEL COVER UPPER
43
LOCK WASHER 10MM
Price
N/A
44
PLATEN ADJUSTMENT BAR
45
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
46
ADJUSTABLE HANDLE M6-1, 60L
47
COVER PLATE
48
SUPPORT BAR
49
BODY
50
SPACER 12.3 X 24 X 9.5
51
LOCK NUT M10-1.5
Price
N/A
52
CAP SCREW M6-1 X 20
Price
N/A
53
DRIVE WHEEL 5"
54
DRIVE WHEEL COVER
55
CAP SCREW M5-.8 X 16
Price
N/A
56
FLAT WASHER 5.3 X 25 X 2
57
FIXED HANDLE 16 X 70, M8-1.25 X 12
58
Now: PW03M
FLAT WASHER 6MM
Price
N/A
59
POWER CORD 16G 3W 72" 5-15P
60
Motor Cord 18G 8W 22"
61
WRENCH 10MM COMBO
62
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
63
HEX WRENCH 1/8"
Price
N/A
64
HEX WRENCH 3/16"
65
Now: PW03M
FLAT WASHER 6MM
Price
N/A
66
Now: PW03M
FLAT WASHER 6MM
Price
N/A
67
LOCK WASHER 6MM
Price
N/A
68
Now: PW03M
FLAT WASHER 6MM
Price
N/A
69
Now: PW04M
FLAT WASHER 10MM
Price
N/A
70
Now: PN03M
HEX NUT M8-1.25
Price
N/A
71
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
72
LOCK NUT M8-1.25
Price
N/A
73
CAP SCREW M6-1 X 10
Price
N/A
74
Now: PW03M
FLAT WASHER 6MM
Price
N/A
75
FLAT HD CAP SCR M6-1 X 16
Price
N/A
76
CORD ROUTER
77
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
78
Now: PW05M
FLAT WASHER 4MM
Price
N/A
79
LOCK WASHER 4MM
Price
N/A
80
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
81
HEX NUT M10-1.5 THIN

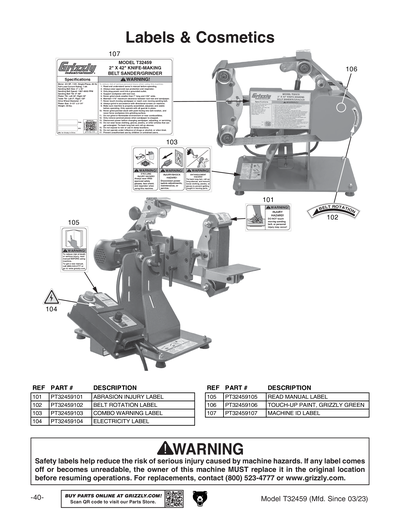

101
ABRASION INJURY LABEL
102
BELT ROTATION LABEL
103
COMBO WARNING LABEL
104
ELECTRICITY 0.7W X 0.6H
Price
N/A
105
READ MANUAL 1.5W X 2.5H
Price
N/A
106
N/S GRIZZLY GREEN G1023S
Price
N/A
107
MACHINE ID LABEL V1
107V2
MACHINE ID LABEL V2.12.23
MAN
MANUAL T32459 MFD-03.23-11.23 V1.03.23
MANV2
MANUAL T32459 MFD-12.23+ V2.04.24
