Parts for T32536 8" x 13" Variable-Speed Benchtop Wood Lathe

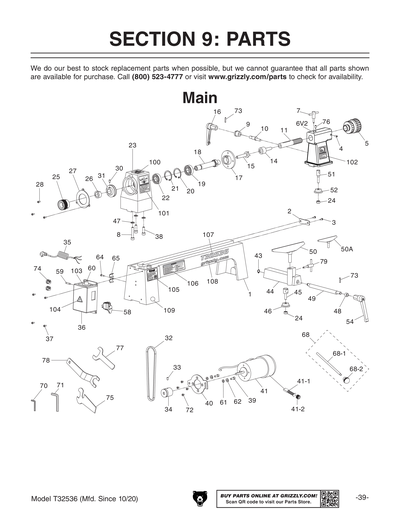

Parts Diagrams for T32536 - 8" x 13" Variable-Speed Benchtop Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

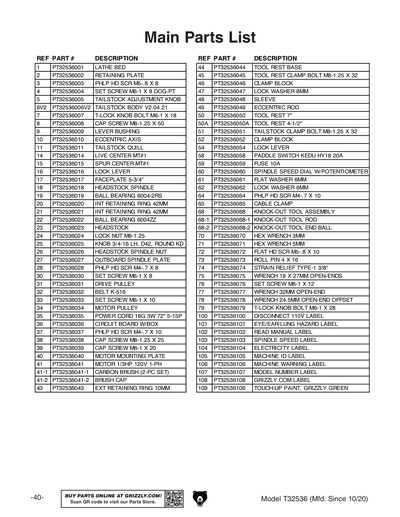

Parts List for Parts for T32536 8" x 13" Variable-Speed Benchtop Wood Lathe

1
LATHE BED
$207.75
Enter quantity between 1 and 99
2
RETAINING PLATE
$1.90
Enter quantity between 1 and 99
3
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
4
SET SCREW M6-1 X 8 DOG-PT
Price
N/A
5
TAILSTOCK ADJUSTMENT KNOB
$24.45
Enter quantity between 1 and 99
6
TAILSTOCK BODY
Item is no longer available
Price
N/A
6V2
TAILSTOCK BODY V2.04.21
$47.75
Enter quantity between 1 and 99
7
T-LOCK KNOB BOLT M6-1 X 18
$9.50
Enter quantity between 1 and 99
8
CAP SCREW M8-1.25 X 50
Price
N/A
9
LEVER BUSHING
$3.65
Enter quantity between 1 and 99
10
ECCENTRIC AXIS
$5.10
Enter quantity between 1 and 99
11
TAILSTOCK QUILL
$27.35
Enter quantity between 1 and 99
14
LIVE CENTER MT#1
$13.70
Enter quantity between 1 and 99
15
SPUR CENTER MT#1
$10.45
Enter quantity between 1 and 99
16
LOCK LEVER
$6.15
Enter quantity between 1 and 99
17
FACEPLATE 5-3/4"
$29.50
Enter quantity between 1 and 99
18
HEADSTOCK SPINDLE
$29.15
Enter quantity between 1 and 99
19
BALL BEARING 6004-2RS
Price
N/A
20
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
21
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
22
BALL BEARING 6004ZZ
Price
N/A
23
HEADSTOCK
$75.50
Enter quantity between 1 and 99
24
LOCK NUT M8-1.25
Price
N/A
25
KNOB 3/4-16 LH, D42, ROUND KD
$29.75
Enter quantity between 1 and 99
26
HEADSTOCK SPINDLE NUT
$3.65
Enter quantity between 1 and 99
27
OUTBOARD SPINDLE PLATE
$1.90
Enter quantity between 1 and 99
28
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
30
SET SCREW M6-1 X 8
Price
N/A
31
DRIVE PULLEY
$10.45
Enter quantity between 1 and 99
32
BELT K-516
$5.65
Enter quantity between 1 and 99
33
SET SCREW M6-1 X 10
Price
N/A
34
MOTOR PULLEY
$11.90
Enter quantity between 1 and 99
35
POWER CORD 18G 3W 72" 5-15P
$10.95
Enter quantity between 1 and 99
36
CIRCUIT BOARD W/BOX
$76.20
Enter quantity between 1 and 99
37
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
38
CAP SCREW M8-1.25 X 25
Price
N/A
39
CAP SCREW M6-1 X 20
Price
N/A
40
MOTOR MOUNTING PLATE
$4.70
Enter quantity between 1 and 99
41
MOTOR 1/3HP 120V 1-PH
$134.35
Enter quantity between 1 and 99
41-1
CARBON BRUSH (2-PC SET)
$8.35
Enter quantity between 1 and 99
41-2
BRUSH CAP
$1.90
Enter quantity between 1 and 99
43
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
44
TOOL REST BASE
$28.45
Enter quantity between 1 and 99
45
TOOL REST CLAMP BOLT M8-1.25 X 32
$6.90
Enter quantity between 1 and 99
46
CLAMP BLOCK
Price
N/A
47
LOCK WASHER 8MM
Price
N/A
48
SLEEVE
$4.45
Enter quantity between 1 and 99
49
ECCENTRIC ROD
$2.35
Enter quantity between 1 and 99
50
TOOL REST 7"
$11.90
Enter quantity between 1 and 99
50A
TOOL REST 4-1/2"
$18.70
Enter quantity between 1 and 99
51
TAILSTOCK CLAMP BOLT M8-1.25 X 32
$6.70
Enter quantity between 1 and 99
52
CLAMP BLOCK
$4.70
Enter quantity between 1 and 99
54
LOCK LEVER
Price
N/A
58
PADDLE SWITCH KEDU HY18 20A
$9.50
Enter quantity between 1 and 99
59
FUSE 10A
$2.15
Enter quantity between 1 and 99
60
SPINDLE SPEED DIAL W/POTENTIOMETER
$11.50
Enter quantity between 1 and 99
61
Now: PW03M
FLAT WASHER 6MM
Price
N/A
62
LOCK WASHER 6MM
Price
N/A
64
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
65
CABLE CLAMP
$1.90
Enter quantity between 1 and 99
68
KNOCK-OUT TOOL ASSEMBLY
$2.60
Enter quantity between 1 and 99
68-1
KNOCK-OUT TOOL ROD
$1.90
Enter quantity between 1 and 99
68-2
KNOCK-OUT TOOL END BALL
$1.90
Enter quantity between 1 and 99
70
HEX WRENCH 3MM
Price
N/A
71
HEX WRENCH 5MM
Price
N/A
72
FLAT HD SCR M5-.8 X 10
Price
N/A
73
ROLL PIN 4 X 16
Price
N/A
74
STRAIN RELIEF TYPE-1 3/8"
$1.90
Enter quantity between 1 and 99
75
WRENCH 19 X 27MM OPEN-ENDS
$5.45
Enter quantity between 1 and 99
76
SET SCREW M6-1 X 12
Price
N/A
77
WRENCH 32MM OPEN-END
$2.60
Enter quantity between 1 and 99
78
WRENCH 24.5MM OPEN-END OFFSET
$2.20
Enter quantity between 1 and 99
79
T-LOCK KNOB BOLT M6-1 X 28
$10.10
Enter quantity between 1 and 99
100
DISCONNECT 110V LABEL
$1.25
Enter quantity between 1 and 99
101
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
102
READ MANUAL 1.5W X 2.5H
Price
N/A
103
SPINDLE SPEED LABEL
$1.25
Enter quantity between 1 and 99
104
ELECTRICITY 1.4W X 1.2H
Price
N/A
105
MACHINE ID LABEL
$16.40
Enter quantity between 1 and 99
106
MACHINE WARNING LABEL
$3.15
Enter quantity between 1 and 99
107
MODEL NUMBER LABEL
$16.40
Enter quantity between 1 and 99
108
GRIZZLY.COM LABEL 6",GRAY
Price
N/A
109
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T32536 MFD-10.20+ V1.12.20
$22.65
Enter quantity between 1 and 99
