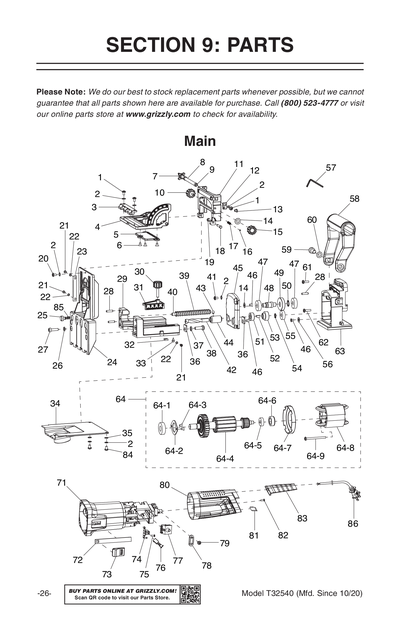

Parts for T32540 - Dual Spindle Doweling Joiner

1/3

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

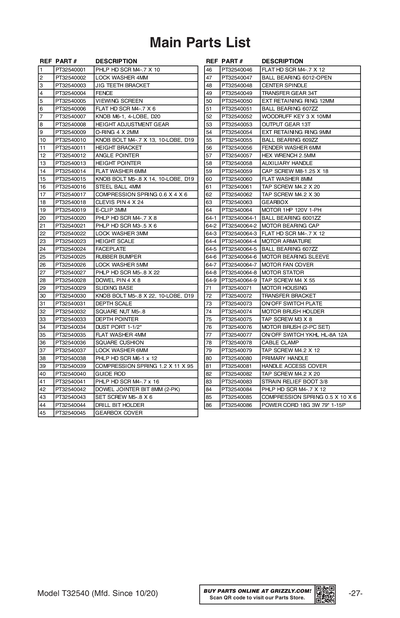

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 10
Price
N/A
2
LOCK WASHER 4MM
Price
N/A
3
JIG TEETH BRACKET
Price
$1.25
4
FENCE
Price
$5.00
5
VIEWING SCREEN
Price
$1.00
6
FLAT HD SCR M4-.7 X 6
Price
N/A
7
KNOB M6-1, 4-LOBE, D20
Price
$1.00
8
HEIGHT ADJUSTMENT GEAR
Price
$6.50
9
O-RING 4 X 2MM
Price
$1.00
10
KNOB BOLT M4-.7 X 13, 10-LOBE, D19
Price
$1.00
11
HEIGHT BRACKET
Price
$5.75
12
ANGLE POINTER
Price
$1.00
13
HEIGHT POINTER
Price
$1.00
14
FLAT WASHER 6MM
Price
N/A
15
KNOB BOLT M5-.8 X 14, 10-LOBE, D19
Price
$1.00
16
STEEL BALL 4MM
Price
N/A
17
COMPRESSION SPRING 0.6 X 4 X 6
Price
$1.00
18
CLEVIS PIN 4 X 24
Price
$1.00
19
E-CLIP 3MM
Price
N/A
20
PHLP HD SCR M4-.7 X 8
Price
N/A
21
PHLP HD SCR M3-.5 X 6
Price
N/A
22
LOCK WASHER 3MM
Price
N/A
23
HEIGHT SCALE
Price
$1.00
24
FACEPLATE
Price
$13.75
25
RUBBER BUMPER
Price
$1.00
26
LOCK WASHER 5MM
Price
N/A
27
PHLP HD SCR M5-.8 X 22
Price
$1.00
28
DOWEL PIN 4 X 8
Price
$1.00
29
SLIDING BASE
Price
$13.50
30
KNOB BOLT M5-.8 X 22, 10-LOBE, D19
Price
$1.00
31
DEPTH SCALE
Price
$1.00
32
SQUARE NUT M5-.8
Price
N/A
33
DEPTH POINTER
Price
$1.00
34
DUST PORT 1-1/2"
Price
$3.50
35
FLAT WASHER 4MM
Price
N/A
36
SQUARE CUSHION
Price
$1.00
37
LOCK WASHER 6MM
Price
N/A
38
PHLP HD SCR M6-1 X 12
Price
N/A
39
COMPRESSION SPRING 1.2 X 11 X 95
Price
$1.00
40
GUIDE ROD
Price
$1.25
41
PHLP HD SCR M4-.7 X 16
Price
N/A
42
8mm Dowel Joiner Bit, 2 Pc.
Price
N/A
43
SET SCREW M5-.8 X 6
Price
N/A
44
DRILL BIT HOLDER
Price
$3.75
45
GEARBOX COVER
Price
$4.50
46
FLAT HD SCR M4-.7 X 12
Price
N/A
47
BALL BEARING 6012-OPEN
Price
$1.00
48
CENTER SPINDLE
Price
$3.75
49
TRANSFER GEAR 34T
Price
$5.75
50
EXT RETAINING RING 12MM
Price
N/A
51
BALL BEARING 607ZZ
Price
N/A
52
WOODRUFF KEY 3 X 10MM
Price
$1.00
53
OUTPUT GEAR 13T
Price
$4.00
54
EXT RETAINING RING 9MM
Price
N/A
55
BALL BEARING 609ZZ
Price
N/A
56
FENDER WASHER 6MM
Price
N/A
58
AUXILIARY HANDLE
Price
$4.50
59
CAP SCREW M8-1.25 X 18
Price
N/A
60
FLAT WASHER 8MM
Price
N/A
61
TAP SCREW M4.2 X 20
Price
$1.00
62
TAP SCREW M4.2 X 30
Price
$1.00
63
GEARBOX
Price
$12.25
64
MOTOR 1HP 120V 1-PH
Price
$62.00
64-1
BALL BEARING 6001ZZ
Price
N/A
64-2
MOTOR BEARING CAP
Price
$1.00
64-3
FLAT HD SCR M4-.7 X 12
Price
N/A
64-4
MOTOR ARMATURE
Price
$32.50
64-5
BALL BEARING 607ZZ
Price
N/A
64-6
MOTOR BEARING SLEEVE
Price
$1.00
64-7
MOTOR FAN COVER
Price
$1.00
64-8
MOTOR STATOR
Price
$25.25
64-9
TAP SCREW M4 X 55
Price
N/A
71
MOTOR HOUSING
Price
$6.00
72
TRANSFER BRACKET
Price
$1.00
73
ON/OFF SWITCH PLATE
Price
$1.00
74
MOTOR BRUSH HOLDER
Price
$1.00
75
TAP SCREW M3 X 8
Price
N/A
76
MOTOR BRUSH (2-PC SET)
Price
$3.75
77
ON/OFF SWITCH YKHL HL-8A 12A
Price
$2.75
78
CABLE CLAMP
Price
$1.00
79
TAP SCREW M4.2 X 12
Price
$1.00
80
PRIMARY HANDLE
Price
$3.00
81
HANDLE ACCESS COVER
Price
$1.00
82
TAP SCREW M4.2 X 20
Price
$1.00
83
STRAIN RELIEF BOOT 3/8
Price
$1.00
84
PHLP HD SCR M4-.7 X 12
Price
N/A
85
COMPRESSION SPRING 0.5 X 10 X 6
Price
$1.00
86
POWER CORD 18G 3W 79" 1-15P
Price
$9.00

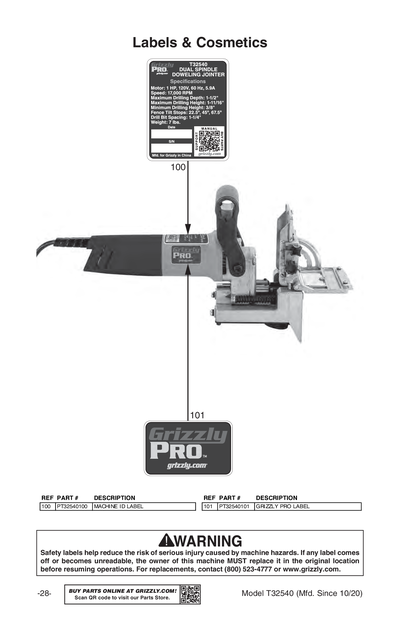

100
MACHINE ID LABEL
Price
$9.50
101
GRIZZLY PRO LABEL
Price
$1.00
MAN
MANUAL T32540 MFD-10.20+ V1.012.20
Price
$15.00
