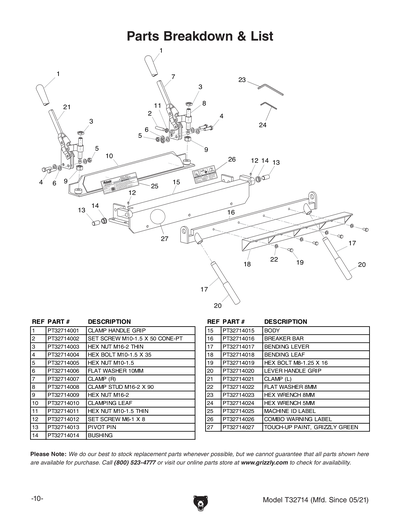

Parts for T32714 24" 20-Gauge Bending Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CLAMP HANDLE GRIP
2
SET SCREW M10-1.5 X 50 CONE-PT
3
Now: PN48M
HEX NUT M16-2 THIN
Price
N/A
4
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
5
Now: PN02M
HEX NUT M10-1.5
Price
N/A
6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
7
CLAMP (R)
8
CLAMP STUD M16-2 X 90
9
Now: PN13M
HEX NUT M16-2
Price
N/A
10
CLAMPING LEAF
11
Now: PN50M
HEX NUT M10-1.5 THIN
Price
N/A
12
SET SCREW M6-1 X 8
Price
N/A
13
PIVOT PIN
14
BUSHING
15
BODY
16
BREAKER BAR
17
BENDING LEVER
18
BENDING LEAF
19
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
20
LEVER HANDLE GRIP
21
CLAMP (L)
22
Now: PW01M
FLAT WASHER 8MM
Price
N/A
23
HEX WRENCH 8MM
Price
N/A
24
HEX WRENCH 5MM
Price
N/A
25
MACHINE ID LABEL
26
COMBO WARNING LABEL
27
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T32714 MFD-05.21+ V1.05.21
