Parts for T32717 - Electric Pipe & Tubing Notcher with Stand

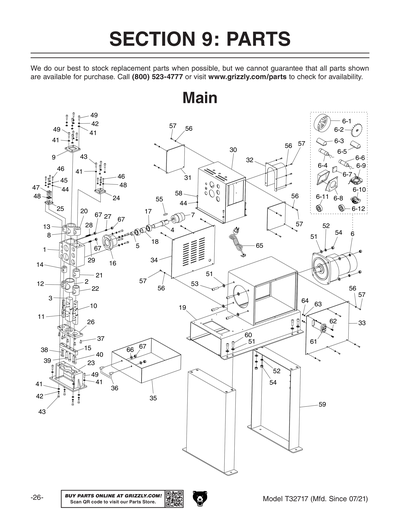

Part Diagram for T32717
Part Diagram for T32717
Part Diagram for T32717
Part Diagram for T32717
Part Diagram for T32717
Part Diagram for T32717

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

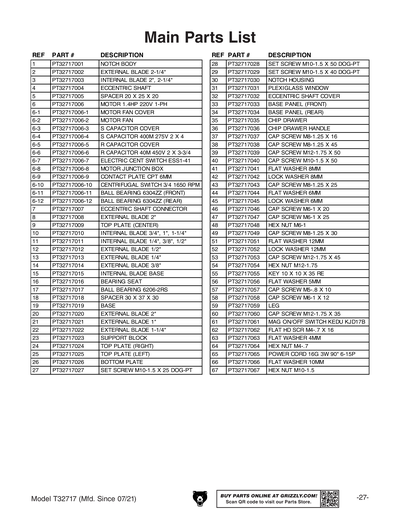

Ref #
Part #
Description
1
NOTCH BODY
Price
$534.75
2
EXTERNAL BLADE 2-1/4"
Price
$89.15
3
INTERNAL BLADE 2", 2-1/4"
Price
$200.60
4
ECCENTRIC SHAFT
Price
$47.15
5
SPACER 20 X 25 X 20
Price
$11.20
6
MOTOR 1.4HP 220V 1-PH
Price
$1,559.70
6-1
MOTOR FAN COVER
Price
$31.35
6-10
CENTRIFUGAL SWITCH ASSEMBLY
Price
$125.10
6-11
BALL BEARING 6304ZZ
Price
N/A
6-12
BALL BEARING 6304ZZ
Price
N/A
6-2
MOTOR FAN
Price
$22.35
6-3
S CAPACITOR COVER
Price
$27.00
6-4
S CAPACITOR 300M 275V 2 X 4
Price
$38.15
6-5
R CAPACITOR COVER
Price
$27.00
6-6
R CAPACITOR 40M 450V 2 X 3-3/4
Price
$38.15
6-7
CENTRIFUGAL SWITCH ASSEMBLY
Price
N/A
6-8
MOTOR JUNCTION BOX
Price
$13.70
6-9
CENTRIFUGAL SWITCH ASSEMBLY
Price
N/A
7
ECCENTRIC SHAFT CONNECTOR
Price
$84.85
8
EXTERNAL BLADE 2"
Price
$89.15
9
TOP PLATE (CENTER)
Price
$22.35
10
INTERNAL BLADE 3/4", 1", 1-1/4"
Price
$173.95
11
INTERNAL BLADE 1/4", 3/8", 1/2"
Price
$142.70
12
EXTERNAL BLADE 1/2"
Price
$58.25
13
EXTERNAL BLADE 1/4"
Price
$58.25
14
EXTERNAL BLADE 3/8"
Price
$58.25
15
INTERNAL BLADE BASE
Price
$53.60
16
BEARING SEAT
Price
$62.60
17
BALL BEARING 6206-2RS
Price
N/A
18
SPACER 30 X 37 X 30
Price
$6.90
19
BASE
Price
$802.15
20
EXTERNAL BLADE 2"
Price
$62.60
21
EXTERNAL BLADE 1"
Price
$62.60
22
EXTERNAL BLADE 1-1/4"
Price
$62.60
23
SUPPORT BLOCK
Price
$107.15
24
TOP PLATE (RIGHT)
Price
$13.70
25
TOP PLATE (LEFT)
Price
$13.70
26
BOTTOM PLATE
Price
$66.90
27
SET SCREW M10-1.5 X 25 DOG-PT
Price
$2.60
28
SET SCREW M10-1.5 X 50 DOG-PT
Price
$2.60
29
SET SCREW M10-1.5 X 40 DOG-PT
Price
$2.60
30
NOTCH HOUSING
Price
$71.60
31
PLEXIGLASS WINDOW
Price
$13.70
32
ECCENTRIC SHAFT COVER
Price
$18.00
33
BASE PANEL (FRONT)
Price
$40.25
34
BASE PANEL (REAR)
Price
$44.60
35
CHIP DRAWER
Price
$66.90
36
CHIP DRAWER HANDLE
Price
$11.20
37
CAP SCREW M8-1.25 X 16
Price
N/A
38
CAP SCREW M8-1.25 X 45
Price
N/A
39
CAP SCREW M12-1.75 X 50
Price
N/A
40
CAP SCREW M10-1.5 X 50
Price
N/A
41
FLAT WASHER 8MM
Price
N/A
42
LOCK WASHER 8MM
Price
N/A
43
CAP SCREW M8-1.25 X 25
Price
N/A
44
FLAT WASHER 6MM
Price
N/A
45
LOCK WASHER 6MM
Price
N/A
46
CAP SCREW M6-1 X 20
Price
N/A
47
CAP SCREW M6-1 X 25
Price
N/A
48
HEX NUT M6-1
Price
N/A
49
CAP SCREW M8-1.25 X 30
Price
N/A
51
FLAT WASHER 12MM
Price
N/A
52
LOCK WASHER 12MM
Price
N/A
53
CAP SCREW M12-1.75 X 45
Price
N/A
54
HEX NUT M12-1.75
Price
N/A
55
KEY 10 X 10 X 35 RE
Price
$2.60
56
FLAT WASHER 5MM
Price
N/A
57
CAP SCREW M5-.8 X 10
Price
N/A
58
CAP SCREW M6-1 X 12
Price
N/A
59
LEG
Price
$240.85
60
CAP SCREW M12-1.75 X 35
Price
N/A
61
MAG ON/OFF SWITCH KEDU KJD17B
Price
$40.25
62
FLAT HD SCR M4-.7 X 16
Price
N/A
63
FLAT WASHER 4MM
Price
N/A
64
HEX NUT M4-.7
Price
N/A
65
POWER CORD 16G 3W 90" 6-15P
Price
$22.35
66
FLAT WASHER 10MM
Price
N/A
67
HEX NUT M10-1.5
Price
N/A

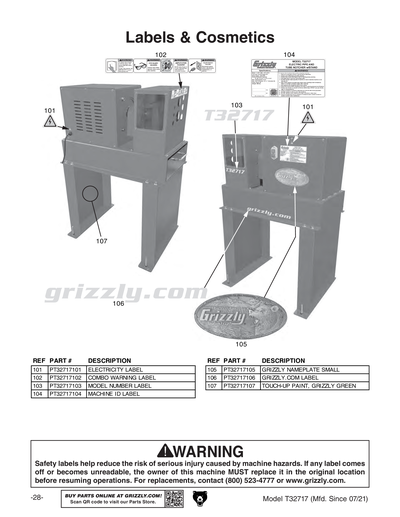

101
ELECTRICITY 0.7W X 0.6H
Price
N/A
102
COMBO WARNING LABEL
Price
$14.10
103
MODEL NUMBER LABEL
Price
$18.45
104
MACHINE ID LABEL
Price
$18.45
105
Nameplate - Small
Price
N/A
106
GRIZZLY.COM LABEL 16",BEIGE
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T32717 MFD-07.21+ V1.06.21
Price
$7.75
