Parts for T32718 41" Slip Roll

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

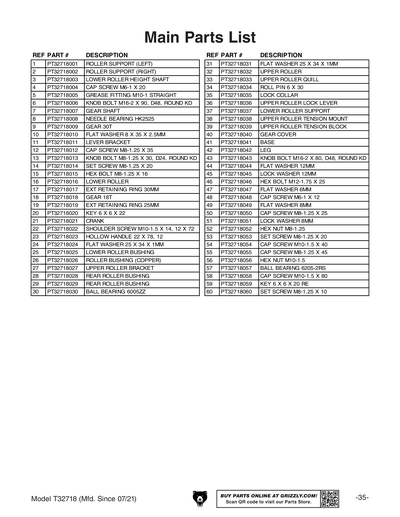

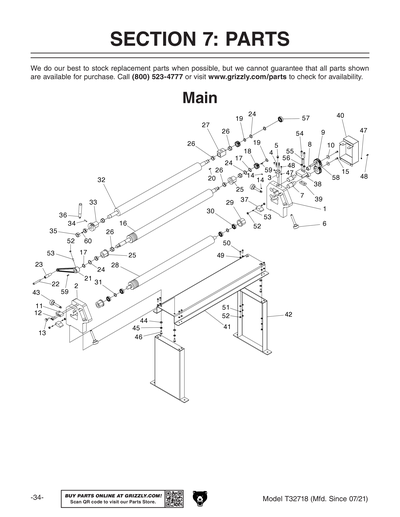

1
ROLLER SUPPORT (LEFT)
2
ROLLER SUPPORT (RIGHT)
3
LOWER ROLLER HEIGHT SHAFT
4
CAP SCREW M6-1 X 20
Price
N/A
5
GREASE FITTING M10-1 STRAIGHT
6
KNOB BOLT M16-2 X 90, D48, ROUND KD
7
GEAR SHAFT
8
NEEDLE BEARING HK2525
9
GEAR 30T
10
FLAT WASHER 8 X 35 X 2.5MM
11
LEVER BRACKET
12
CAP SCREW M8-1.25 X 35
Price
N/A
13
KNOB BOLT M8-1.25 X 30, D24, ROUND KD
14
SET SCREW M8-1.25 X 20
Price
N/A
15
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
16
LOWER ROLLER
17
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
18
GEAR 18T
19
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
20
KEY 6 X 6 X 22
Price
N/A
21
CRANK
22
SHOULDER SCREW M10-1.5 X 14, 12 X 72
23
HOLLOW HANDLE 22 X 78, 12
24
FLAT WASHER 25 X 34 X 1MM
25
LOWER ROLLER BUSHING
26
ROLLER BUSHING (COPPER)
27
UPPER ROLLER BRACKET
28
REAR ROLLER
29
REAR ROLLER BUSHING
30
BALL BEARING 6005ZZ
Price
N/A
31
FLAT WASHER 25 X 34 X 1MM
32
UPPER ROLLER
33
UPPER ROLLER QUILL
34
ROLL PIN 6 X 30
Price
N/A
35
LOCK COLLAR
36
UPPER ROLLER LOCK LEVER
37
LOWER ROLLER SUPPORT
38
UPPER ROLLER TENSION MOUNT
39
UPPER ROLLER TENSION BLOCK
40
GEAR COVER
41
BASE
42
LEG
43
KNOB BOLT M16-2 X 80, D48, ROUND KD
44
Now: PW06M
FLAT WASHER 12MM
Price
N/A
45
LOCK WASHER 12MM
Price
N/A
46
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
47
Now: PW03M
FLAT WASHER 6MM
Price
N/A
48
CAP SCREW M6-1 X 12
Price
N/A
49
Now: PW01M
FLAT WASHER 8MM
Price
N/A
50
CAP SCREW M8-1.25 X 25
Price
N/A
51
LOCK WASHER 8MM
Price
N/A
52
Now: PN03M
HEX NUT M8-1.25
Price
N/A
53
SET SCREW M8-1.25 X 20
Price
N/A
54
CAP SCREW M10-1.5 X 40
Price
N/A
55
CAP SCREW M8-1.25 X 45
Price
N/A
56
Now: PN02M
HEX NUT M10-1.5
Price
N/A
57
BALL BEARING 6205-2RS
Price
N/A
58
CAP SCREW M10-1.5 X 80
Price
N/A
59
KEY 6 X 6 X 20 RE
60
SET SCREW M8-1.25 X 10
Price
N/A

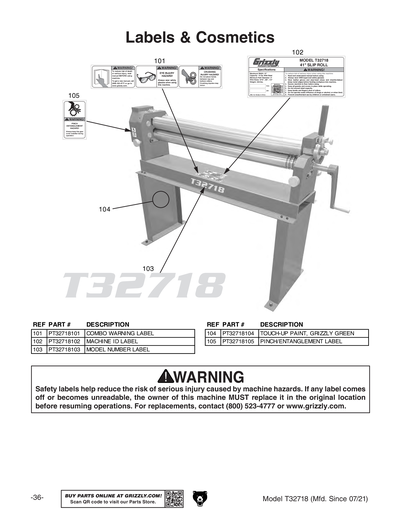

101
COMBO WARNING LABEL
102
MACHINE ID LABEL
103
MODEL NUMBER LABEL
104
N/S GRIZZLY GREEN G1023S
Price
N/A
105
PINCH/ENTANGLEMENT LABEL
MAN
MANUAL T32718 MFD-07.21+ V1.07.21
