Parts for T32719 - 36" 18-Gauge Benchtop Pan and Box Brake

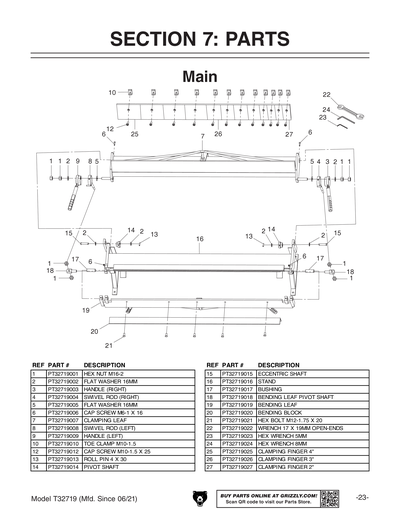

Part Diagram for T32719
Part Diagram for T32719
Part Diagram for T32719
Part Diagram for T32719

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEX NUT M16-2
Price
N/A
2
FLAT WASHER 16MM
Price
N/A
3
Price
$22.35
4
Price
$13.70
5
FLAT WASHER 16MM
Price
N/A
6
CAP SCREW M6-1 X 16
Price
N/A
7
Price
$222.85
8
Price
$13.70
9
Price
$22.35
10
Price
$9.00
12
CAP SCREW M10-1.5 X 25
Price
N/A
13
Price
$2.60
14
Price
$9.00
15
Price
$2.60
16
Price
$222.85
17
Price
$2.60
18
BENDING LEAF PIVOT SHAFT
Price
$9.00
19
Price
$89.15
20
Price
$44.60
21
HEX BOLT M12-1.75 X 20
Price
N/A
22
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
23
HEX WRENCH 5MM
Price
N/A
24
HEX WRENCH 8MM
Price
N/A
25
Price
$27.00
26
Price
$22.35
27
Price
$18.00

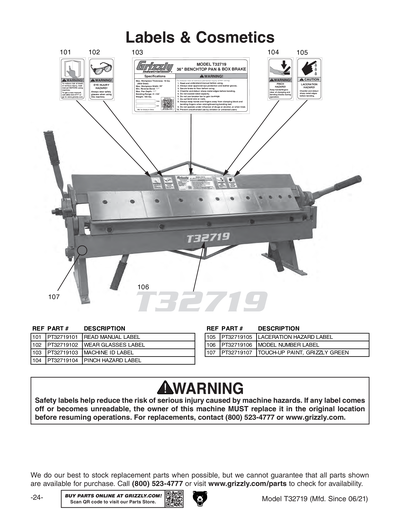

101
READ MANUAL 1.5W X 2.5H
Price
N/A
102
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
103
Price
$18.45
104
Price
$4.10
105
LACERATION HAZARD LABEL
Price
$4.10
106
Price
$18.45
107
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T32719 MFD-06.21+ V1.06.21
Price
$3.25
