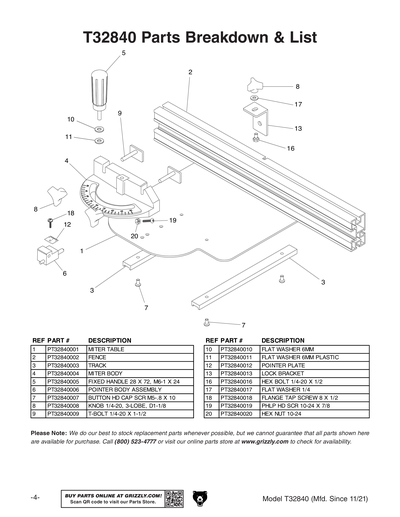

Parts for T32840 Sliding Log Miter Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MITER TABLE
2
FENCE
3
TRACK
4
MITER BODY
5
FIXED HANDLE 28 X 72, M6-1 X 24
6
POINTER BODY ASSEMBLY
7
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
8
KNOB 1/4-20, 3-LOBE, D1-1/8
9
T-BOLT 1/4-20 X 1-1/2
10
Now: PW03M
FLAT WASHER 6MM
Price
N/A
11
FLAT WASHER 6MM PLASTIC
12
POINTER PLATE
13
LOCK BRACKET
16
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
17
Now: PW06
FLAT WASHER 1/4
Price
N/A
18
FLANGE TAP SCREW 8 X 1/2
19
PHLP HD SCR 10-24 X 7/8
20
Now: PN07
HEX NUT 10-24
Price
N/A
MAN
MANUAL T32840 MFD-11.21+ V1.11.21
