Parts for T32841 Sliding Log Milling Jig

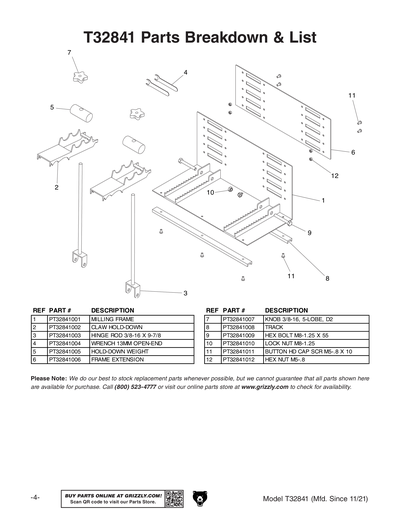

Parts Diagrams for T32841 - Sliding Log Milling Jig

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for T32841 Sliding Log Milling Jig

1
MILLING FRAME
$226.75
Enter quantity between 1 and 99
2
CLAW HOLD-DOWN
$77.60
Enter quantity between 1 and 99
3
HINGE ROD 3/8-16 X 9-7/8
$36.00
Enter quantity between 1 and 99
4
WRENCH 13MM OPEN-END
$6.70
Enter quantity between 1 and 99
5
HOLD-DOWN WEIGHT
$34.45
Enter quantity between 1 and 99
6
FRAME EXTENSION
$93.65
Enter quantity between 1 and 99
7
KNOB 3/8-16, 5-LOBE, D2
$9.10
Enter quantity between 1 and 99
8
TRACK
$26.60
Enter quantity between 1 and 99
9
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
10
LOCK NUT M8-1.25
Price
N/A
11
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
12
Now: PN06M
HEX NUT M5-.8
Price
N/A
MAN
MANUAL T32841 MFD-11.21+ V1.11.21
$5.50
Enter quantity between 1 and 99
