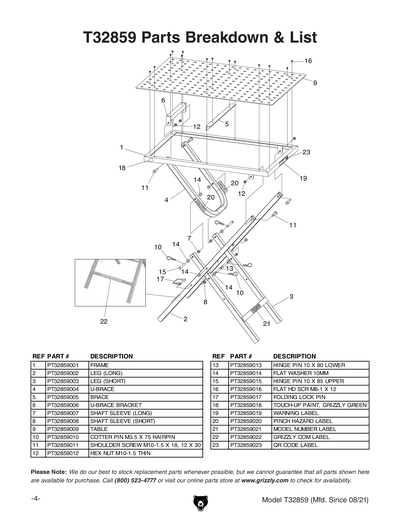

Parts for T32859 24" x 36" Folding Welding Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FRAME
2
LEG (LONG)
3
LEG (SHORT)
4
U-BRACE
5
BRACE
6
U-BRACE BRACKET
7
SHAFT SLEEVE (LONG)
8
SHAFT SLEEVE (SHORT)
9
TABLE
10
COTTER PIN M3.5 X 75 HAIRPIN
11
SHOULDER SCREW M10-1.5 X 18, 12 X 30
12
Now: PN50M
HEX NUT M10-1.5 THIN
Price
N/A
13
HINGE PIN 10 X 80 LOWER
14
Now: PW04M
FLAT WASHER 10MM
Price
N/A
15
HINGE PIN 10 X 85 UPPER
16
FLAT HD SCR M6-1 X 12
Price
N/A
17
FOLDING LOCK PIN
18
N/S GRIZZLY GREEN G1023S
Price
N/A
19
WARNING LABEL
20
PINCH HAZARD LABEL
21
MODEL NUMBER LABEL
22
GRIZZLY.COM LABEL 8.125",BEIGE
Price
N/A
23
QR CODE LABEL
MAN
MANUAL T32859 MFD-08.21+ V1.08.21
