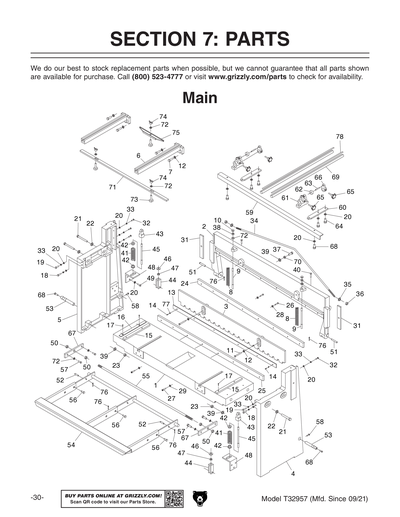

Parts for T32957 52" Sheet Metal Shear

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

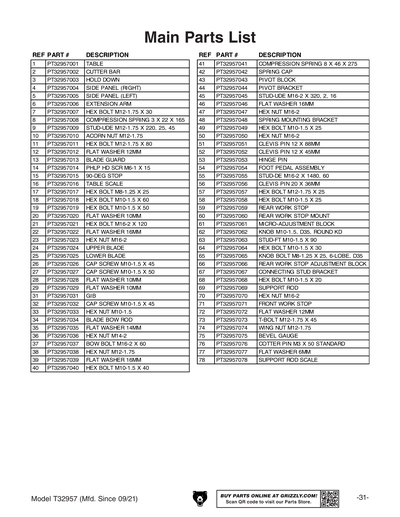

1
TABLE
2
CUTTER BAR
3
HOLD DOWN
4
SIDE PANEL (RIGHT)
5
SIDE PANEL (LEFT)
6
EXTENSION ARM
7
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
8
COMPRESSION SPRING 3 X 22 X 165
9
STUD-UDE M12-1.75 X 220, 25, 45
10
Now: PN26
*DISCD*HEX NUT 1/2-12 LH
Price
N/A
11
HEX BOLT M12-1.75 X 80
Price
N/A
12
Now: PW06M
FLAT WASHER 12MM
Price
N/A
13
BLADE GUARD
14
PHLP HD SCR M6-1 X 15
15
90-DEG STOP
16
TABLE SCALE
17
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
18
Now: PB34M
HEX BOLT M10-1.5 X 60
Price
N/A
19
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
20
Now: PW04M
FLAT WASHER 10MM
Price
N/A
21
HEX BOLT M16-2 X 120
Price
N/A
22
Now: PW08M
FLAT WASHER 16MM
Price
N/A
23
Now: PN13M
HEX NUT M16-2
Price
N/A
24
UPPER BLADE
25
LOWER BLADE
26
CAP SCREW M10-1.5 X 45
Price
N/A
27
CAP SCREW M10-1.5 X 50
Price
N/A
28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
29
Now: PW04M
FLAT WASHER 10MM
Price
N/A
31
GIB
32
CAP SCREW M10-1.5 X 45
Price
N/A
33
Now: PN02M
HEX NUT M10-1.5
Price
N/A
34
BLADE BOW ROD
35
Now: PW10M
FLAT WASHER 14MM
Price
N/A
36
Now: PN32M
HEX NUT M14-2
Price
N/A
37
BOW BOLT M16-2 X 60
38
Now: PN09M
HEX NUT M12-1.75
Price
N/A
39
Now: PW08M
FLAT WASHER 16MM
Price
N/A
40
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
41
COMPRESSION SPRING 8 X 46 X 275
42
SPRING CAP
43
PIVOT BLOCK
44
PIVOT BRACKET
45
STUD-UDE M16-2 X 320, 2, 16
46
Now: PW08M
FLAT WASHER 16MM
Price
N/A
47
Now: PN13M
HEX NUT M16-2
Price
N/A
48
SPRING MOUNTING BRACKET
49
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
50
Now: PN13M
HEX NUT M16-2
Price
N/A
51
CLEVIS PIN 12 X 88MM
52
CLEVIS PIN 12 X 45MM
53
HINGE PIN
54
FOOT PEDAL ASSEMBLY
55
STUD-DE M16-2 X 1480, 60
56
CLEVIS PIN 20 X 36MM
57
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
58
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
59
REAR WORK STOP
60
REAR WORK STOP MOUNT
61
MICRO-ADJUSTMENT BLOCK
62
KNOB M10-1.5, D35, ROUND KD
63
STUD-FT M10-1.5 X 90
64
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
65
KNOB BOLT M8-1.25 X 25, 6-LOBE, D35
66
REAR WORK STOP ADJUSTMENT BLOCK
67
CONNECTING STUD BRACKET
68
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
69
SUPPORT ROD
70
Now: PN13M
HEX NUT M16-2
Price
N/A
71
FRONT WORK STOP
72
Now: PW06M
FLAT WASHER 12MM
Price
N/A
73
T-BOLT M12-1.75 X 45
74
WING NUT M12-1.75
75
BEVEL GAUGE
76
COTTER PIN M3 X 50 STANDARD
77
Now: PW03M
FLAT WASHER 6MM
Price
N/A
78
SUPPORT ROD SCALE

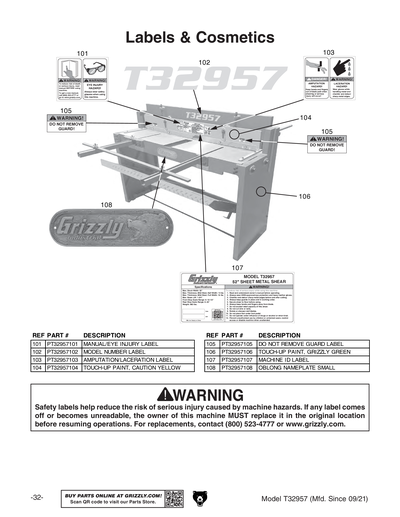

101
MANUAL/EYE INJURY LABEL
102
MODEL NUMBER LABEL
103
AMPUTATION/LACERATION LABEL
104
YELLOW REF G5772
Price
N/A
105
DO NOT REMOVE GUARD 2.1W X 1H
Price
N/A
106
N/S GRIZZLY GREEN G1023S
Price
N/A
107
MACHINE ID LABEL
108
Now: H4609
Oblong Nameplate-Small
Price
N/A
MAN
MANUAL T32957 MFD-09.21+ V1.09.21
