Parts for T32961 - 60mm Manual Tube / Pipe Roller Bender

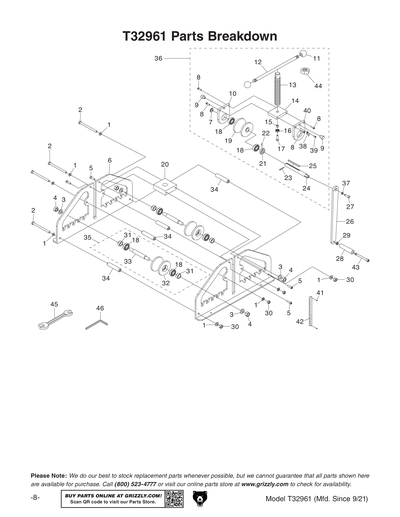

Part Diagram for T32961
Part Diagram for T32961
Part Diagram for T32961
Part Diagram for T32961
Part Diagram for T32961
Part Diagram for T32961

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

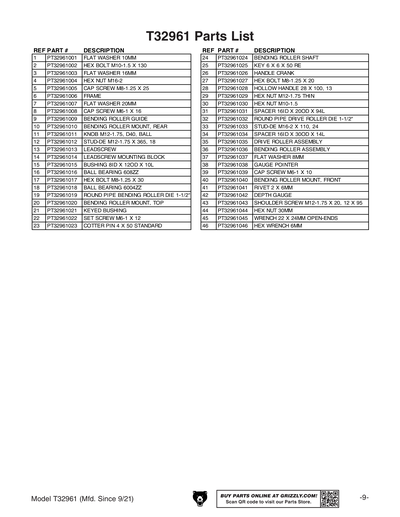

Ref #
Part #
Description
1
FLAT WASHER 10MM
Price
N/A
2
Price
$2.60
3
FLAT WASHER 16MM
Price
N/A
4
LOCK NUT M16-2
Price
N/A
5
CAP SCREW M8-1.25 X 25
Price
N/A
6
Price
$129.40
7
FLAT WASHER 20MM
Price
N/A
8
CAP SCREW M6-1 X 16
Price
N/A
9
Price
$4.35
10
BENDING ROLLER MOUNT, REAR
Price
$22.35
11
KNOB M12-1.75, D40, BALL
Price
$1.90
12
STUD-DE M12-1.75 X 365, 18
Price
$17.25
13
Price
$27.70
14
LEADSCREW MOUNTING BLOCK
Price
$23.00
15
BUSHING 8ID X 12OD X 10L
Price
$2.60
16
Price
$4.10
17
HEX BOLT M8-1.25 X 30
Price
N/A
18
BALL BEARING 6004ZZ
Price
N/A
19
ROUND PIPE BENDING ROLLER DIE 1-1/2"
Price
$80.50
20
BENDING ROLLER MOUNT, TOP
Price
$24.15
21
LOCK COLLAR 20ID X 35OD X 10, M6-1
Price
$5.45
22
SET SCREW M6-1 X 12
Price
N/A
23
COTTER PIN 4 X 50 STANDARD
Price
$1.90
24
Price
$30.60
25
Price
$1.90
26
Price
$21.95
27
HEX BOLT M8-1.25 X 20
Price
N/A
28
HOLLOW HANDLE W/SCREW 28 X 100, 13
Price
$5.45
29
HEX NUT M12-1.75 THIN
Price
N/A
30
HEX NUT M10-1.5
Price
N/A
31
SPACER 16ID X 20OD X 94L
Price
$5.45
32
ROUND PIPE DRIVE ROLLER DIE 1-1/2"
Price
$80.50
33
STUD-DE M16-2 X 110, 24
Price
$22.35
34
SPACER 10ID X 20OD X 95L
Price
$5.45
35
Price
$96.30
35A
Price
$120.45
36
BENDING ROLLER ASSEMBLY
Price
$89.15
36A
BENDING ROLLER ASSEMBLY
Price
N/A
37
FLAT WASHER 8MM
Price
N/A
38
Price
$1.90
39
CAP SCREW M6-1 X 10
Price
N/A
40
BENDING ROLLER MOUNT, FRONT
Price
$22.35
41
Price
$1.90
42
Price
$2.60
43
HOLLOW HANDLE W/SCREW 28 X 100, 13
Price
N/A
44
Price
$2.90
45
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
46
HEX WRENCH 6MM
Price
N/A
100
Price
$1.25
101

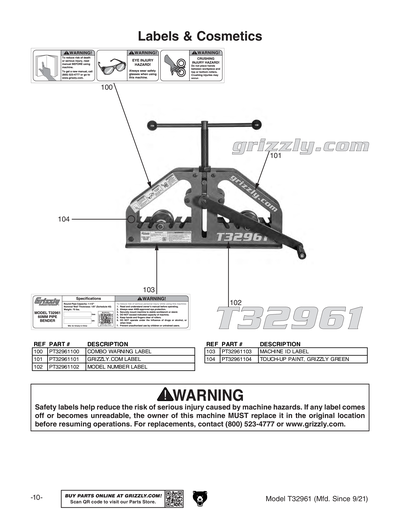

GRIZZLY.COM LABEL 8.875",GRAY
Price
N/A
102
Price
$16.40
103
Price
$16.40
103V2
MACHINE ID LABEL V2.06.25
Price
$16.95
104
N/S GRIZZLY GREEN G1023S
Price
N/A
105
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T32961 MFD-09.21+ V1.10.21
Price
$16.00
MANV2
MANUAL T32961 MFD-05.25+ V2.06.25
Price
$22.65
