Parts for T33127 - 1/2 HP Benchtop Hollow-Chisel Mortiser

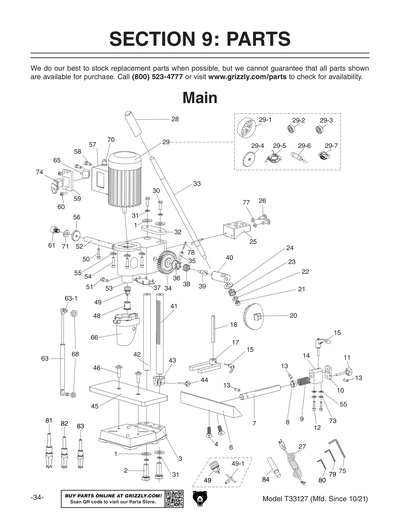

Part Diagram for T33127
Part Diagram for T33127
Part Diagram for T33127
Part Diagram for T33127
Part Diagram for T33127
Part Diagram for T33127

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

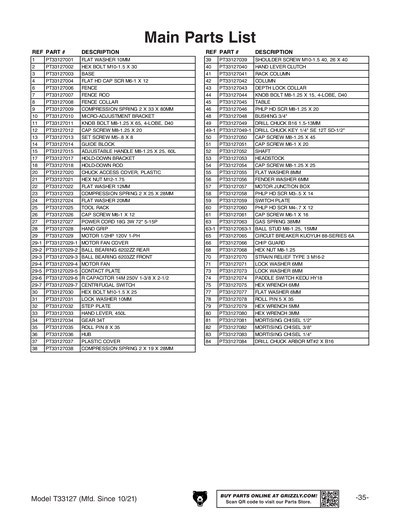

Ref #
Part #
Description
1
FLAT WASHER 10MM
Price
N/A
2
HEX BOLT M10-1.5 X 30
Price
N/A
3
BASE
Price
$91.75
4
FLAT HD CAP SCR M6-1 X 12
Price
N/A
6
FENCE
Price
$74.10
7
FENCE ROD
Price
$19.45
8
FENCE COLLAR
Price
$5.15
9
COMPRESSION SPRING 33 X 80MM
Price
$1.90
10
MICRO-ADJUSTMENT BRACKET
Price
$8.15
11
MICRO-ADJUSTMENT KNOB M8-1.25 X 65
Price
$1.90
12
CAP SCREW M8-1.25 X 20
Price
N/A
13
SET SCREW M5-.8 X 8
Price
N/A
14
GUIDE BLOCK
Price
$19.00
15
ADJUSTABLE HANDLE M8-1.25 X 25
Price
$4.70
17
HOLD-DOWN BRACKET
Price
$23.20
18
HOLD-DOWN ROD
Price
$12.35
20
CHUCK ACCESS COVER, PLASTIC
Price
$1.90
21
HEX NUT M12-1.75
Price
N/A
22
FENDER WASHER 12MM
Price
N/A
23
COMPRESSION SPRING 25 X 28MM
Price
$1.90
24
FENDER WASHER 20MM
Price
N/A
25
TOOL RACK
Price
$6.25
26
CAP SCREW M6-1 X 12
Price
N/A
27
POWER CORD 90" 5-15P 3W
Price
N/A
28
HAND GRIP
Price
$3.75
29
MOTOR 1/2HP 120V 1-PH V1
Price
$285.85
29-1
MOTOR FAN COVER
Price
$13.15
29-2
BALL BEARING 6202ZZ
Price
N/A
29-3
BALL BEARING 6203ZZ
Price
N/A
29-4
MOTOR FAN
Price
$5.95
29-6
R CAPACITOR 14M 250V 1-3/8 X 2-1/2
Price
$17.10
29V2
MOTOR 1/2HP 120V 1-PH V2.05.24
Price
$285.85
29V2-6
R CAPACITOR 24M 250V 1-3/8 X 2-1/2
Price
$17.10
30
HEX BOLT M10-1.5 X 25
Price
N/A
31
LOCK WASHER 10MM
Price
N/A
32
STEP PLATE
Price
$3.95
33
HAND LEVER
Price
$18.20
34
GEAR 34T
Price
$19.45
35
ROLL PIN 8 X 35
Price
N/A
36
HUB
Price
$6.10
37
PLASTIC COVER
Price
$1.90
38
COMPRESSION SPRING 19 X 28MM
Price
$1.90
39
SHOULDER SCREW M10-1.5 40, 26 X 40
Price
$7.10
40
HAND LEVER CLUTCH
Price
$18.35
41
GEAR COLUMN
Price
$65.70
42
GUIDE COLUMN
Price
$41.45
43
DEPTH LOCK COLLAR
Price
$12.15
44
DEPTH LOCK KNOB M8-1.25 X 18
Price
$1.90
45
TABLE
Price
$9.70
46
PHLP HD SCR M8-1.25 X 20
Price
N/A
48
CHISEL BUSHING 3/4"
Price
$2.70
49
DRILL CHUCK B16 1.5-13MM
Price
$13.65
49-1
DRILL CHUCK KEY 1/4" SE 12T SD-1/2"
Price
$3.45
50
CAP SCREW M8-1.25 X 45
Price
N/A
51
CAP SCREW M6-1 X 20
Price
N/A
52
GEAR SHAFT
Price
$14.20
53
HEADSTOCK
Price
$128.10
54
CAP SCREW M8-1.25 X 25
Price
N/A
55
FLAT WASHER 8MM
Price
N/A
56
OVERSIZED FLAT WASHER 6 X 3.5MM
Price
$1.90
57
MOTOR JUNCTION BOX
Price
$19.75
58
PHLP HD SCR M3-.5 X 14
Price
N/A
59
SWITCH PLATE
Price
$1.49
60
PHLP HD SCR M4-.7 X 12
Price
N/A
61
CAP SCREW M6-1 X 16
Price
N/A
63
GAS SPRING 38MM
Price
$18.60
63-1
GAS SPRING 38MM
Price
N/A
65
CIRCUIT BREAKER KUOYUH 88-SERIES 6A V1
Price
$4.40
65V2
CIRCUIT BREAKER KUOYUH 88 4A V2.05.24
Price
$4.40
66
CHUCK GUARD
Price
$8.35
68
HEX NUT M8-1.25
Price
N/A
70
STRAIN RELIEF M16-2 X 15 ST PLASTIC
Price
$1.90
71
LOCK WASHER 6MM
Price
N/A
73
LOCK WASHER 8MM
Price
N/A
74
PADDLE SWITCH KEDU HY18
Price
$7.50
75
HEX WRENCH 6MM
Price
N/A
77
FLAT WASHER 6MM
Price
N/A
78
ROLL PIN 5 X 35
Price
N/A
79
HEX WRENCH 5MM
Price
N/A
80
HEX WRENCH 3MM
Price
N/A
81
MORTISING CHISEL 1/2"
Price
$15.70
82
MORTISING CHISEL 3/8"
Price
$13.60
83
MORTISING CHISEL 1/4"
Price
$11.70
84
DRILL CHUCK ARBOR MT#2 X B16
Price
$6.15
101

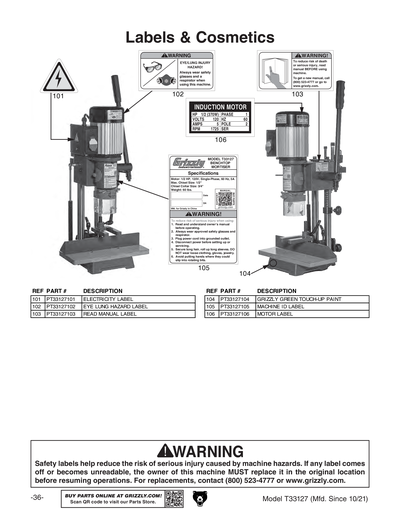

ELECTRICITY 1.4W X 1.2H
Price
N/A
102
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
103
READ MANUAL 2.8W X 1.5H
Price
N/A
104
N/S GRIZZLY GREEN G1023S
Price
N/A
105
MACHINE ID LABEL V1
Price
$16.95
105V2
MACHINE ID LABEL V2.05.24
Price
$16.95
106
MOTOR LABEL V1
Price
$1.65
106V2
MOTOR LABEL V2.05.24
Price
$1.65
MAN
MANUAL T33127 MFD-11.21-04.24 V1.11.21
Price
$6.25
MANV2
MANUAL T33127 MFD-05.24+ V2.04.24
Price
$23.55
