Parts for T33256 - 4" x 36" Belt / 6" Disc Combo Sander

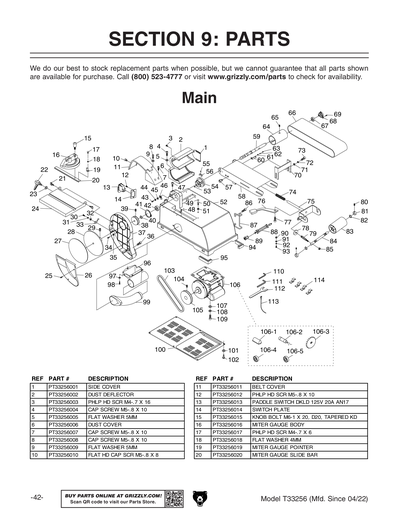

Part Diagram for T33256
Part Diagram for T33256
Part Diagram for T33256
Part Diagram for T33256
Part Diagram for T33256
Part Diagram for T33256

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SIDE COVER
Price
$1.90
2
DUST DEFLECTOR
Price
$3.65
3
PHLP HD SCR M4-.7 X 16
Price
N/A
4
CAP SCREW M5-.8 X 10
Price
N/A
5
FLAT WASHER 5MM
Price
N/A
6
DUST COVER
Price
$4.70
7
CAP SCREW M5-.8 X 10
Price
N/A
8
CAP SCREW M5-.8 X 10
Price
N/A
9
FLAT WASHER 5MM
Price
N/A
10
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
11
BELT COVER
Price
$5.10
12
PHLP HD SCR M5-.8 X 10
Price
N/A
13
PADDLE SWITCH DKLD 125V 20A AN17
Price
$7.95
14
SWITCH PLATE
Price
$1.90
15
MITER GAUGE ASSEMBLY
Price
N/A
16
MITER GAUGE ASSEMBLY
Price
$9.75
17
PHLP HD SCR M4-.7 X 6
Price
N/A
18
FLAT WASHER 4MM
Price
N/A
19
MITER GAUGE ASSEMBLY
Price
N/A
20
MITER GAUGE ASSEMBLY
Price
N/A
21
KNOB BOLT M5-.8 X 14, D18, WING
Price
$1.90
22
ADJUSTABLE HANDLE M6-1 X 15, 65L
Price
$5.40
23
FLAT WASHER 6MM
Price
N/A
24
TABLE
Price
$22.35
25
CAP SCREW M5-.8 X 10
Price
N/A
26
DISC COVER
Price
$3.25
27
6" A/O Sanding Disc, 80 Grit PSA, 3 Pk.
Price
N/A
28
ALUMINUM DISC 6"
Price
$19.10
29
SET SCREW M8-1.25 X 10
Price
N/A
30
PHLP HD SCR M5-.8 X 10
Price
N/A
31
LOCK WASHER 5MM
Price
N/A
32
FLAT WASHER 5MM
Price
N/A
33
DISC TABLE TILT POINTER
Price
$1.90
34
CAP SCREW M5-.8 X 10
Price
N/A
35
FLAT WASHER 5MM
Price
N/A
36
CAP SCREW M5-.8 X 10
Price
N/A
37
DISC GUARD
Price
$17.25
37-1
DISC DIRECTION LABEL
Price
$2.25
38
DRIVE PULLEY
Price
$13.70
39
SET SCREW M8-1.25 X 10
Price
N/A
40
EXT RETAINING RING 14MM
Price
N/A
41
EXT RETAINING RING 50MM
Price
N/A
42
BALL BEARING 6002ZZ
Price
N/A
43
CAP SCREW M5-.8 X 10
Price
N/A
44
LOCK WASHER 5MM
Price
N/A
45
FLAT WASHER 5MM
Price
N/A
46
VERTICAL STOP PLATE
Price
$1.90
47
CAP SCREW M6-1 X 30
Price
N/A
48
CAP SCREW M5-.8 X 10
Price
N/A
49
RUBBER COVER
Price
$1.90
50
PLATEN STOP SCREW M8-1.25 X 22
Price
$1.90
51
HEX NUT M8-1.25
Price
N/A
52
BODY
Price
$127.25
53
CAP SCREW M5-.8 X 10
Price
N/A
54
DRIVE SHAFT HOUSING
Price
$13.70
55
CAP SCREW M5-.8 X 8
Price
N/A
56
LIMIT BLOCK
Price
$1.90
57
STANDOFF-HEX MF M6-1 X 9, M5-.8
Price
$1.90
58
SANDING BELT PLATEN
Price
$47.15
58-1
TENSION LEVER LABEL
Price
$2.25
59
DRIVE SHAFT
Price
$10.10
60
PLATEN TABLE TILT POINTER
Price
$1.90
61
FLAT WASHER 5MM
Price
N/A
62
LOCK WASHER 5MM
Price
N/A
63
PHLP HD SCR M5-.8 X 10
Price
N/A
64
DRIVE ROLLER
Price
$17.25
65
SET SCREW M6-1 X 8
Price
N/A
66
4" x 36" A/O Sanding Belt 80 Grit, 2 Pk.
Price
N/A
67
BALL BEARING 6000ZZ
Price
N/A
68
BEARING COVER
Price
$1.90
69
CAP SCREW M5-.8 X 10
Price
N/A
70
WORK STOP
Price
$5.10
71
FLAT WASHER 6MM
Price
N/A
72
LOCK WASHER 6MM
Price
N/A
73
CAP SCREW M6-1 X 16
Price
N/A
74
COMPRESSION SPRING 2.5 X 22 X 82
Price
$1.90
75
IDLER ROLLER SUPPORT
Price
$10.45
76
TENSION LEVER
Price
$3.25
77
HEX BOLT M6-1 X 12
Price
N/A
78
TRACKING NUT M10-1.5
Price
$1.90
79
SHOULDER STUD-FT M10-1.5 X 40, M6-1 X 12
Price
$1.90
80
SET SCREW M5-.8 X 6
Price
N/A
81
LOCK COLLAR 12MM, M5-.8
Price
$1.90
82
EXT RETAINING RING 12MM
Price
N/A
83
IDLER ROLLER
Price
$23.75
84
IDLER SHAFT
Price
$4.70
85
LOCK NUT M6-1
Price
N/A
86
CAP SCREW M5-.8 X 10
Price
N/A
87
POWER CORD HOOK
Price
$1.90
88
POWER CORD 18G 3W 74" 5-15P
Price
$15.50
89
STRAIN RELIEF TYPE-1 5/16
Price
$3.65
90
EXT TOOTH WASHER 5MM
Price
N/A
91
FLAT WASHER 5MM
Price
N/A
92
LOCK WASHER 5MM
Price
N/A
93
PHLP HD SCR M5-.8 X 10
Price
N/A
94
FOOT (RIGHT)
Price
$1.90
95
FOOT (LEFT)
Price
$1.90
96
DUST CHUTE
Price
$4.35
97
FLAT WASHER 5MM
Price
N/A
98
CAP SCREW M5-.8 X 8
Price
N/A
99
CONNECTION CHANNEL
Price
$2.90
100
BOTTOM COVER
Price
$14.10
101
FLAT WASHER 5MM
Price
N/A
102
PHLP HD SCR M5-.8 X 10
Price
N/A
103
V-BELT O-680
Price
$5.10
104
SET SCREW M8-1.25 X 10
Price
N/A
105
MOTOR PULLEY
Price
$15.85
106
MOTOR 1/2HP 120V 1-PH
Price
$160.00
106-1
CAPACITOR COVER
Price
$1.90
106-2
R CAPACITOR 30M 250V 1-5/16 X 2-9/16
Price
$11.90
106-3
MOTOR FAN
Price
$2.90
106-4
BALL BEARING 6202ZZ
Price
N/A
106-5
BALL BEARING 6201ZZ
Price
N/A
107
FLAT WASHER 6MM
Price
N/A
108
LOCK WASHER 6MM
Price
N/A
109
CAP SCREW M6-1 X 20
Price
N/A
110
HEX WRENCH 3MM
Price
N/A
111
HEX WRENCH 5MM
Price
N/A
112
WRENCH 14MM OPEN-END
Price
$2.60
113
CABLE TIE
Price
$1.90
114
MOUNTING BRACKET
Price
$1.90

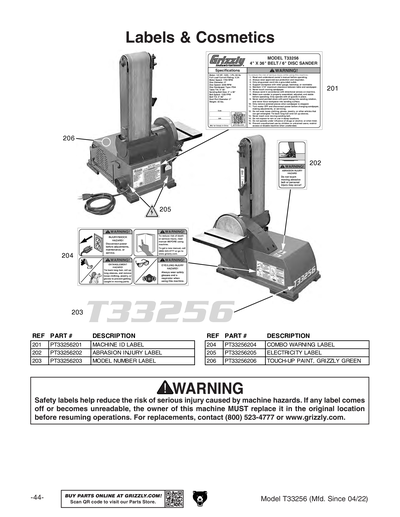

201
MACHINE ID LABEL
Price
$16.40
202
ABRASION INJURY LABEL
Price
$16.40
203
MODEL NUMBER LABEL
Price
$16.40
204
COMBO WARNING LABEL
Price
$16.40
205
ELECTRICITY 0.7W X 0.6H
Price
N/A
206
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T33256 04.22+ V1.04.22
Price
$14.65
