Parts for T33295 - 2/3 HP Variable-Speed 7-Roller Power Feeder, Single-Phase

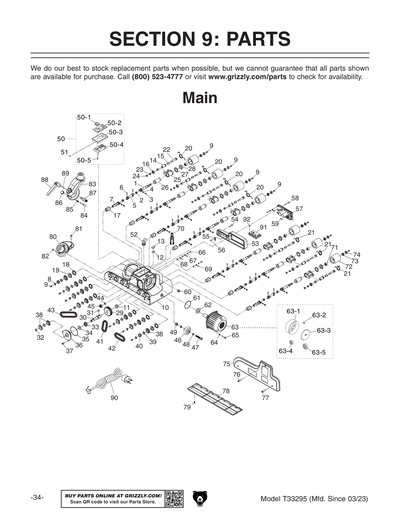

Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295
Part Diagram for T33295

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

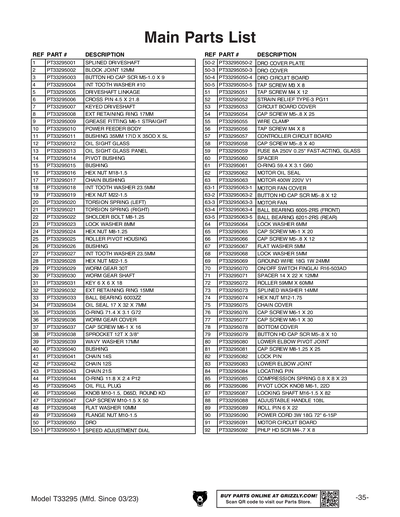

Ref #
Part #
Description
1
SPLINED SHAFT
Price
$33.35
2
BLOCK JOINT 12MM
Price
$2.60
3
PHLP HD SCR M5-1.0 X 9
Price
$1.60
4
LOCK WASHER 5MM
Price
$1.60
5
DOUBLE U-JOINT
Price
$14.90
6
ROLL PIN 5 X 22
Price
N/A
7
SHAFT
Price
$25.05
8
EXT RETAINING RING 17MM
Price
N/A
9
GREASE FITTING M6-1 STRAIGHT
Price
$1.49
10
POWER FEEDER BODY
Price
$344.15
11
BUSHING
Price
N/A
12
OIL SIGHT GLASS
Price
N/A
13
OIL SIGHT GLASS PANEL
Price
N/A
14
PIVOT BUSHING
Price
$9.85
15
BUSHING
Price
$1.49
16
HEX NUT M18-1.5
Price
N/A
17
CHAIN BUSHING
Price
$6.60
18
INT TOOTH WASHER 24MM
Price
$1.60
19
HEX NUT M22-1.5
Price
$2.95
20
TORSION SPRING (LEFT)
Price
$1.60
21
TORSION SPRING (RIGHT)
Price
$1.60
22
SPROCKET SHAFT M8-1.25
Price
$10.90
23
LOCK WASHER 8MM
Price
N/A
24
HEX NUT M8-1.25
Price
N/A
25
ROLLER SPINDLE
Price
$6.60
26
BUSHING
Price
$8.75
27
INT TOOTH WASHER 24MM
Price
N/A
28
HEX NUT M22-1.5
Price
N/A
29
WORM GEAR 30T
Price
N/A
30
WORM GEAR SHAFT
Price
$14.90
31
KEY 6 X 6 X 18
Price
N/A
32
EXT RETAINING RING 15MM
Price
N/A
33
Bearing - 35mm x 17mm
Price
N/A
34
OIL SEAL 17 X 32 X 7MM
Price
N/A
35
O RING 71.4 X 3.1 G72
Price
N/A
36
WORM GEAR COVER
Price
N/A
37
CAP SCREW M6-1 X 16
Price
N/A
38
DOUBLE-SPROCKET 12T X 3/8"
Price
$4.85
39
WAVY WASHER 23MM
Price
$1.60
40
BUSHING
Price
$1.49
41
CHAIN 14S
Price
$4.00
42
CHAIN 12S
Price
$3.35
43
CHAIN 21S
Price
$4.75
44
O RING 11.8 X 2.4 P12
Price
N/A
45
OIL CAP
Price
N/A
46
KNOB 65D X 38L X 10B
Price
N/A
47
CAP SCREW M10-1.5 X 50
Price
N/A
48
FLAT WASHER 10MM
Price
N/A
49
FLANGE NUT M10-1.5
Price
N/A
50
DRO ASSEMBLY
Price
$94.20
50-1
SPEED ADJUSTMENT DIAL
Price
N/A
50-2
DRO COVER PLATE
Price
N/A
50-3
DRO COVER
Price
N/A
50-4
DRO CIRCUIT BOARD V2.06.20
Price
N/A
50-5
TAP SCREW M3 X 8
Price
N/A
51
TAP SCREW M4 X 12
Price
N/A
52
STRAIN RELIEF TYPE-3 PG11
Price
N/A
53
CIRCUIT BOARD COVER
Price
N/A
54
CAP SCREW M5-.8 X 25
Price
N/A
55
WIRE CLAMP (PLASTIC)
Price
N/A
56
PHLP HD SCR M4-.7 X 8
Price
N/A
57
CONTROLLER CIRCUIT BOARD
Price
N/A
58
CAP SCREW M5-.8 X 40
Price
N/A
59
FUSE 8A 250V 0.25" FAST-ACTING, GLASS
Price
$1.60
60
SPACER
Price
N/A
61
O-RING KIT
Price
N/A
62
OIL SEAL 25 X 42 X 7
Price
N/A
63
MOTOR 500W 220V 1-PH V2.06.20
Price
N/A
63-1
MOTOR FAN COVER
Price
N/A
63-2
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
63-3
MOTOR FAN
Price
N/A
63-4
BALL BEARING 6005-2RS
Price
N/A
63-5
BALL BEARING 6201-2RS
Price
N/A
64
LOCK WASHER 6MM
Price
N/A
65
CAP SCREW M6-1 X 20
Price
N/A
66
CAP SCREW M5-.8 X 12
Price
$1.60
67
FLAT WASHER 5MM
Price
N/A
68
LOCK WASHER 5MM
Price
N/A
69
GROUND WIRE 18G 1W 24MM
Price
$1.60
70
ON/OFF SWITCH
Price
N/A
71
SPACER 14 X 22 X 12MM
Price
$1.60
72
ROLLER 59MM X 60MM
Price
$21.75
73
FLAT WASHER 14MM
Price
N/A
74
NUT M12-1.75
Price
N/A
75
CHAIN COVER
Price
$16.60
76
CAP SCREW M6-1 X 20
Price
N/A
77
CAP SCREW M6-1 X 30
Price
N/A
78
BOTTOM COVER
Price
$6.60
79
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
80
LOWER ELBOW PIVOT JOINT
Price
N/A
81
CAP SCREW M8-1.25 X 25
Price
N/A
82
LOCK PIN
Price
N/A
83
LOWER ELBOW JOINT
Price
N/A
84
LOCK PIN
Price
N/A
85
COMPRESSION SPRING 0.8 X 8 X 23
Price
N/A
86
PIVOT LOCK KNOB M6-1, 22D
Price
N/A
87
LOCKING SHAFT M16-1.5 X 82
Price
$4.40
88
ADJUSTABLE HANDLE 108L
Price
$23.60
89
ROLL PIN 6 X 22
Price
N/A
90
POWER CORD 3W 18G 72" 6-15P
Price
$25.40
91
MOTOR CIRCUIT BOARD
Price
N/A
92
PHLP HD SCR M4-.7 X 8
Price
N/A

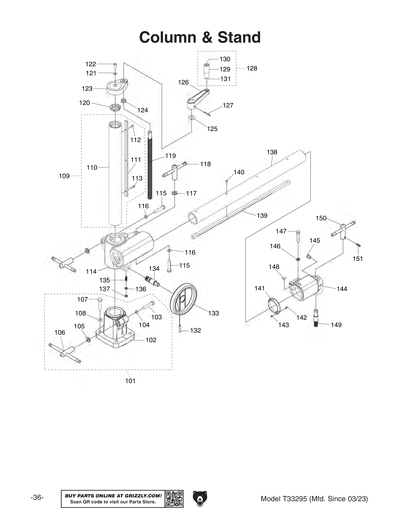

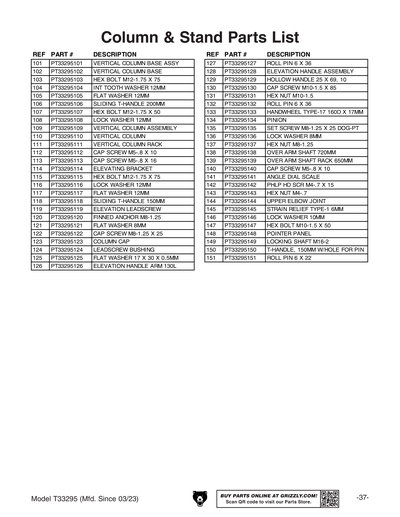

101
VERTICAL COLUMN BASE ASSY
Price
N/A
102
VERTICAL COLUMN BASE
Price
N/A
103
HEX BOLT M12-1.75 X 75
Price
N/A
104
LOCK WASHER 12MM
Price
N/A
105
FLAT WASHER 12MM
Price
N/A
106
SLIDING T-HANDLE 200MM
Price
N/A
107
HEX BOLT M12-1.75 X 50
Price
N/A
108
LOCK WASHER 12MM
Price
N/A
109
VERTICAL COLUMN ASSEMBLY
Price
N/A
110
VERTICAL COLUMN
Price
N/A
111
VERTICAL COLUMN RACK
Price
N/A
112
CAP SCREW M5-.8 X 10
Price
N/A
113
CAP SCREW M5-.8 X 16
Price
N/A
114
ELEVATING BRACKET
Price
N/A
115
HEX BOLT M12-1.75 X 75
Price
N/A
116
LOCK WASHER 12MM
Price
N/A
117
FLAT WASHER 12MM
Price
N/A
118
SLIDING T-HANDLE 150MM
Price
N/A
119
ELEVATION LEADSCREW
Price
N/A
120
FINNED ANCHOR M8-1.25
Price
N/A
121
FLAT WASHER 8MM
Price
N/A
122
CAP SCREW M8-1.25 X 25
Price
N/A
123
COLUMN CAP
Price
N/A
124
LEADSCREW BUSHING
Price
N/A
125
FLAT WASHER 17 X 30 X 0.5
Price
N/A
126
ELEVATION HANDLE ARM 130L
Price
N/A
127
ROLL PIN 6 X 36
Price
N/A
128
ELEVATION HANDLE ASSEMBLY
Price
N/A
129
ELEVATION HANDLE ASSEMBLY
Price
N/A
130
CAP SCREW M10-1.5 X 85
Price
N/A
131
HEX NUT M10-1.5
Price
N/A
132
ROLL PIN 6 X 36
Price
N/A
133
HANDWHEEL TYPE-17 160D
Price
N/A
134
PINION
Price
N/A
135
SET SCREW M8-1.25 X 25 DOG-PT
Price
N/A
136
LOCK WASHER 8MM
Price
N/A
137
HEX NUT M8-1.25
Price
N/A
138
OVER-ARM SHAFT 720MM
Price
N/A
139
OVERARM SHAFT RACK 650MM
Price
N/A
140
CAP SCREW M5-.8 X 10
Price
N/A
141
ANGLE DIAL SCALE
Price
N/A
142
PHLP HD SCR M4-.7 X 15
Price
N/A
143
HEX NUT M4-.7
Price
N/A
144
UPPER ELBOW JOINT
Price
N/A
145
CORD RETAINER PLUG
Price
N/A
146
LOCK WASHER 10MM
Price
N/A
147
HEX BOLT M10-1.5 X 50
Price
N/A
148
POINTER PANEL
Price
N/A
149
STANDOFF STUD M16-2
Price
N/A
150
T-HANDLE, 150MM W/HOLE FOR PIN
Price
N/A
151
ROLL PIN 6 X 22
Price
N/A

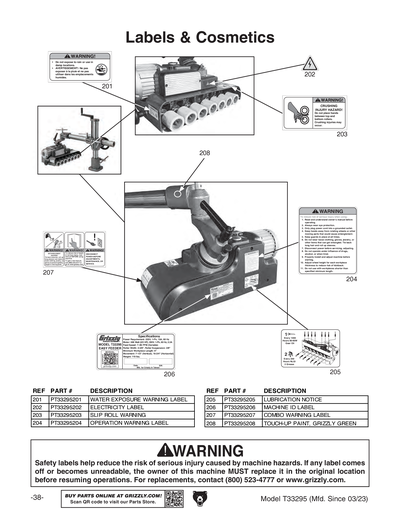

201
WATER EXPOSURE WARNING LABEL
Price
$1.60
202
ELECTRICITY 0.7W X 0.6H
Price
N/A
203
SLIP ROLL WARNING 2.8W X 1.5H
Price
N/A
204
OPERATION WARNING LABEL
Price
$2.25
205
LUBRICATION NOTICE
Price
$1.60
206
MACHINE ID LABEL
Price
$1.85
207
COMBO WARNING LABEL
Price
$1.60
208
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL FOR T33295 MFD 3.23+ V1.04.23
Price
$14.65
