Parts for T33304 - 20V 1/4" Plunge Router - Tool Only

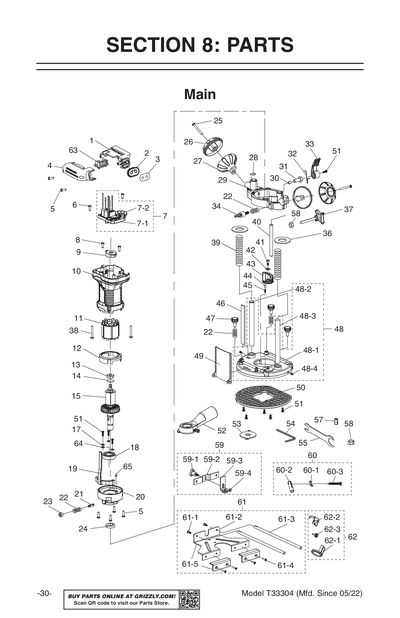

Part Diagram for T33304
Part Diagram for T33304
Part Diagram for T33304
Part Diagram for T33304
Part Diagram for T33304
Part Diagram for T33304

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

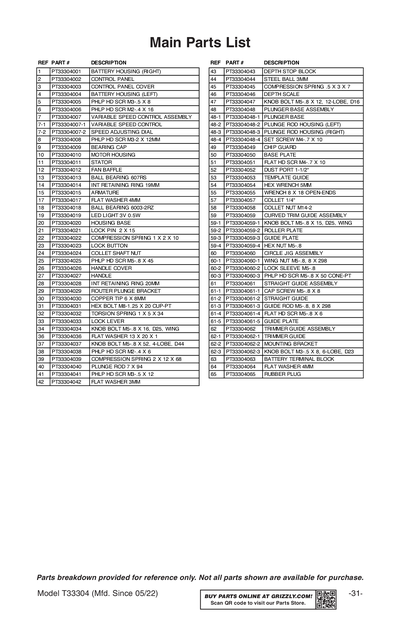

Ref #
Part #
Description
1
*DISCD*BATTERY HOUSING (RIGHT)
Item is no longer available
Price
N/A
2
*DISCD*CONTROL PANEL
Item is no longer available
Price
N/A
3
*DISCD*CONTROL PANEL COVER
Item is no longer available
Price
N/A
4
*DISCD*BATTERY HOUSING (LEFT)
Item is no longer available
Price
N/A
5
PHLP HD SCR M3-.5 X 8
Price
N/A
6
*DISCD*PHLP HD SCR M2-.4 X 16
Item is no longer available
Price
N/A
7
*DISCD*VARIABLE SPEED CONTROL ASSEMBLY
Item is no longer available
Price
N/A
7-1
*DISCD*VARIABLE SPEED CONTROL
Item is no longer available
Price
N/A
7-2
*DISCD*SPEED ADJUSTING DIAL
Item is no longer available
Price
N/A
8
PHLP HD SCR M3-.5 X 12
Price
N/A
9
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
10
*DISCD*MOTOR HOUSING
Item is no longer available
Price
N/A
11
*DISCD*STATOR
Item is no longer available
Price
N/A
12
*DISCD*FAN BAFFLE
Item is no longer available
Price
N/A
13
*DISCD*BALL BEARING 607RS
Item is no longer available
Price
N/A
14
INT RETAINING RING 19MM
Price
N/A
15
*DISCD*ARMATURE
Item is no longer available
Price
N/A
17
FLAT WASHER 4MM
Price
N/A
18
*DISCD*BALL BEARING 6003-2RZ
Item is no longer available
Price
N/A
19
*DISCD*LED LIGHT 3V 0.5W
Item is no longer available
Price
N/A
20
*DISCD*HOUSING BASE
Item is no longer available
Price
N/A
21
*DISCD*LOCK PIN 2 X 15
Item is no longer available
Price
N/A
22
*DISCD*COMPRESSION SPRING 1 X 2 X 10
Item is no longer available
Price
N/A
23
*DISCD*LOCK BUTTON
Item is no longer available
Price
N/A
24
*DISCD*COLLET SHAFT NUT
Item is no longer available
Price
N/A
25
PHLP HD SCR M5-.8 X 45
Price
N/A
26
*DISCD*HANDLE COVER
Item is no longer available
Price
N/A
27
*DISCD*HANDLE
Item is no longer available
Price
N/A
28
INT RETAINING RING 20MM
Price
N/A
29
*DISCD*ROUTER PLUNGE BRACKET
Item is no longer available
Price
N/A
30
*DISCD*COPPER TIP 6 X 8MM
Item is no longer available
Price
N/A
31
*DISCD*HEX BOLT M8-1.25 X 20 CUP-PT
Item is no longer available
Price
N/A
32
*DISCD*TORSION SPRING 1 X 5 X 34
Item is no longer available
Price
N/A
33
*DISCD*LOCK LEVER
Item is no longer available
Price
N/A
34
*DISCD*KNOB BOLT M5-.8 X 16, D25, WING
Item is no longer available
Price
N/A
36
*DISCD*FLAT WASHER 13 X 20 X 1
Item is no longer available
Price
N/A
37
*DISCD*KNOB BOLT M5-.8 X 52, 4-LOBE, D44
Item is no longer available
Price
N/A
38
PHLP HD SCR M2-.4 X 6
Price
N/A
39
*DISCD*COMPRESSION SPRING 2 X 12 X 68
Item is no longer available
Price
N/A
40
*DISCD*PLUNGE ROD 7 X 94
Item is no longer available
Price
N/A
41
PHLP HD SCR M3-.5 X 12
Price
N/A
42
FLAT WASHER 3MM
Price
N/A
43
*DISCD*DEPTH STOP BLOCK
Item is no longer available
Price
N/A
44
STEEL BALL 3MM
Price
N/A
45
*DISCD*COMPRESSION SPRING .5 X 3 X 7
Item is no longer available
Price
N/A
46
*DISCD*DEPTH SCALE
Item is no longer available
Price
N/A
47
*DISCD*KNOB BOLT M5-.8 X 12, 12-LOBE
Item is no longer available
Price
N/A
48
*DISCD*PLUNGER BASE ASSEMBLY
Item is no longer available
Price
N/A
48-1
*DISCD*PLUNGER BASE
Item is no longer available
Price
N/A
48-2
*DISCD*PLUNGE ROD HOUSING (LEFT)
Item is no longer available
Price
N/A
48-3
*DISCD*PLUNGE ROD HOUSING (RIGHT)
Item is no longer available
Price
N/A
48-4
SET SCREW M4-.7 X 10
Price
N/A
49
*DISCD*CHIP GUARD
Item is no longer available
Price
N/A
50
*DISCD*BASE PLATE
Item is no longer available
Price
N/A
51
FLAT HD SCR M4-.7 X 10
Price
N/A
52
*DISCD*DUST PORT 1-1/2"
Item is no longer available
Price
N/A
53
*DISCD*TEMPLATE GUIDE
Item is no longer available
Price
N/A
54
HEX WRENCH 5MM
Price
N/A
55
*DISCD*WRENCH 8 X 18 OPEN-ENDS
Item is no longer available
Price
N/A
57
*DISCD*COLLET 1/4"
Item is no longer available
Price
N/A
58
*DISCD*COLLET NUT M14-2
Item is no longer available
Price
N/A
59
*DISCD*CURVED TRIM GUIDE ASSEMBLY
Item is no longer available
Price
N/A
59-1
*DISCD*KNOB BOLT M5-.8 X 15, D25, WING
Item is no longer available
Price
N/A
59-2
*DISCD*ROLLER PLATE
Item is no longer available
Price
N/A
59-3
*DISCD*GUIDE PLATE
Item is no longer available
Price
N/A
59-4
HEX NUT M5-.8
Price
N/A
60
*DISCD*CIRCLE JIG ASSEMBLY
Item is no longer available
Price
N/A
60-1
WING NUT M5-.8
Price
N/A
60-2
*DISCD*LOCK SLEEVE M5-.8
Item is no longer available
Price
N/A
60-3
*DISCD*PHLP HD SCR M5-.8 X 50 CONE-PT
Item is no longer available
Price
N/A
61
*DISCD*STRAIGHT GUIDE ASSEMBLY
Item is no longer available
Price
N/A
61-1
CAP SCREW M5-.8 X 8
Price
N/A
61-2
*DISCD*STRAIGHT GUIDE
Item is no longer available
Price
N/A
61-3
*DISCD*GUIDE ROD M5-.8, 8 X 298
Item is no longer available
Price
N/A
61-4
FLAT HD SCR M5-.8 X 6
Price
N/A
61-5
*DISCD*GUIDE PLATE
Item is no longer available
Price
N/A
62
*DISCD*TRIMMER GUIDE ASSEMBLY
Item is no longer available
Price
N/A
62-1
*DISCD*TRIMMER GUIDE
Item is no longer available
Price
N/A
62-2
*DISCD*MOUNTING BRACKET
Item is no longer available
Price
N/A
62-3
*DISCD*KNOB BOLT M3-.5 X 8, 6-LOBE, D23
Item is no longer available
Price
N/A
63
*DISCD*BATTERY TERMINAL BLOCK
Item is no longer available
Price
N/A
64
FLAT WASHER 4MM
Price
N/A
65
*DISCD*RUBBER PLUG
Item is no longer available
Price
N/A

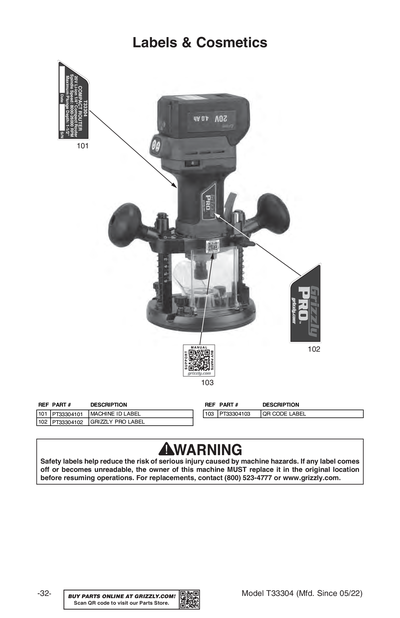

101
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
102
*DISCD*GRIZZLY PRO LABEL
Item is no longer available
Price
N/A
103
*DISCD*QR CODE LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T33304 MFD-05.22+ V1.09.22
Price
$1.25
