Parts for T33312 - Panel Lifting Cart

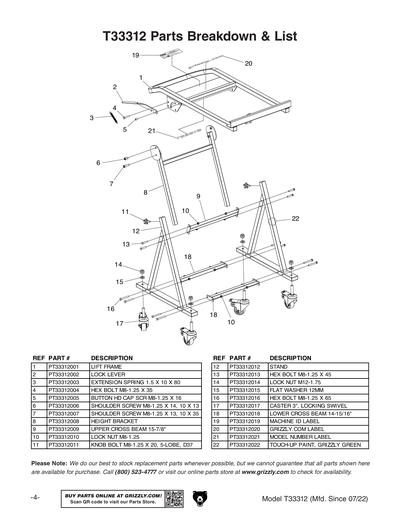

Part Diagram for T33312
Part Diagram for T33312

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
LIFT FRAME
Price
$89.15
2
LOCK LEVER
Price
$4.70
3
EXTENSION SPRING 1.5 X 10 X 80
Price
$4.70
4
HEX BOLT M8-1.25 X 35
Price
N/A
5
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
6
SHOULDER SCREW M8-1.25 X 14, 10 X 13
Price
$2.60
7
SHOULDER SCREW M8-1.25 X 13, 10 X 35
Price
$2.60
8
HEIGHT BRACKET
Price
$22.35
9
UPPER CROSS BEAM 15-7/8"
Price
$9.00
10
LOCK NUT M8-1.25
Price
N/A
11
KNOB BOLT M8-1.25 X 20, 5-LOBE, D37
Price
$4.70
12
STAND
Price
$22.35
13
HEX BOLT M8-1.25 X 45
Price
N/A
14
LOCK NUT M12-1.75
Price
N/A
15
FLAT WASHER 12MM
Price
N/A
16
HEX BOLT M8-1.25 X 65
Price
N/A
17
CASTER 3", LOCKING SWIVEL
Price
$31.35
18
LOWER CROSS BEAM 14-15/16"
Price
$9.00
19
MACHINE ID LABEL
Price
$18.45
20
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
21
MODEL NUMBER LABEL
Price
$18.45
22
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T33312 MFD-07.22+ V1.08.22
Price
$14.65
