Parts for T33380 Hydraulic Lifting Cart, 1100 Lb. Capacity

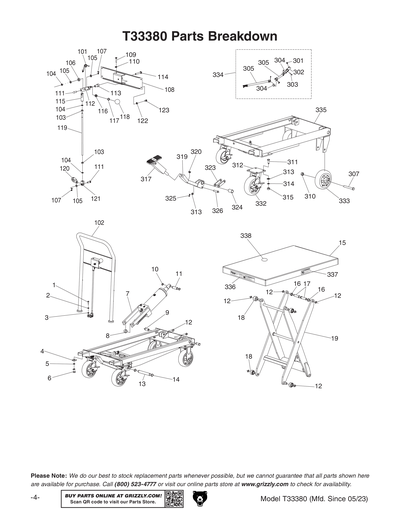

Parts Diagrams for T33380 - Hydraulic Lifting Cart, 1100 Lb. Capacity

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

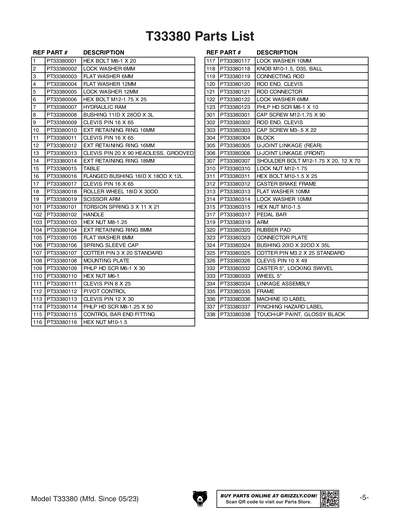

Parts List for Parts for T33380 Hydraulic Lifting Cart, 1100 Lb. Capacity

1
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
2
LOCK WASHER 6MM
Price
N/A
3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
4
Now: PW06M
FLAT WASHER 12MM
Price
N/A
5
LOCK WASHER 12MM
Price
N/A
6
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
7
HYDRAULIC RAM
$247.60
Enter quantity between 1 and 99
8
BUSHING 11ID X 28OD X 3L
$1.90
Enter quantity between 1 and 99
9
CLEVIS PIN 16 X 65
$3.70
Enter quantity between 1 and 99
10
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
11
CLEVIS PIN 16 X 65
Price
N/A
12
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
13
CLEVIS PIN 20 X 90 HEADLESS, GROOVED
$3.35
Enter quantity between 1 and 99
14
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
15
TABLE
$123.85
Enter quantity between 1 and 99
16
FLANGED BUSHING 16ID X 18OD X 12L
$1.90
Enter quantity between 1 and 99
17
CLEVIS PIN 16 X 65
Price
N/A
18
ROLLER WHEEL 18ID X 30OD
$2.60
Enter quantity between 1 and 99
19
SCISSOR ARM
$131.10
Enter quantity between 1 and 99
101
TORSION SPRING 3 X 11 X 21
$2.20
Enter quantity between 1 and 99
102
HANDLE
$34.95
Enter quantity between 1 and 99
103
Now: PN03M
HEX NUT M8-1.25
Price
N/A
104
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
105
Now: PW01M
FLAT WASHER 8MM
Price
N/A
106
SPRING SLEEVE CAP
$1.90
Enter quantity between 1 and 99
107
COTTER PIN 3 X 20 STANDARD
$1.90
Enter quantity between 1 and 99
108
MOUNTING PLATE
$19.70
Enter quantity between 1 and 99
109
Now: PS62M
PHLP HD SCR M6-1 X 30
Price
N/A
110
Now: PN01M
HEX NUT M6-1
Price
N/A
111
CLEVIS PIN 8 X 25
$2.20
Enter quantity between 1 and 99
112
PIVOT CONTROL
$38.65
Enter quantity between 1 and 99
113
CLEVIS PIN 12 X 30
$1.90
Enter quantity between 1 and 99
114
Now: PS88M
PHLP HD SCR M8-1.25 X 50
Price
N/A
115
CONTROL BAR END FITTING
$2.20
Enter quantity between 1 and 99
116
Now: PN02M
HEX NUT M10-1.5
Price
N/A
117
LOCK WASHER 10MM
Price
N/A
118
KNOB M10-1.5, D35, BALL
$1.90
Enter quantity between 1 and 99
119
CONNECTING ROD
$4.40
Enter quantity between 1 and 99
120
ROD END, CLEVIS
$7.35
Enter quantity between 1 and 99
121
ROD CONNECTOR
$4.10
Enter quantity between 1 and 99
122
LOCK WASHER 6MM
Price
N/A
123
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
301
CAP SCREW M12-1.75 X 90
Price
N/A
302
ROD END, CLEVIS
$1.90
Enter quantity between 1 and 99
303
CAP SCREW M3-.5 X 22
$1.90
Enter quantity between 1 and 99
304
BLOCK
$3.35
Enter quantity between 1 and 99
305
U-JOINT LINKAGE (REAR)
$8.75
Enter quantity between 1 and 99
306
U-JOINT LINKAGE (FRONT)
$8.75
Enter quantity between 1 and 99
307
SHOULDER BOLT M12-1.75 X 20, 12 X 70
$1.90
Enter quantity between 1 and 99
310
LOCK NUT M12-1.75
Price
N/A
311
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
312
CASTER BRAKE FRAME
$11.40
Enter quantity between 1 and 99
313
Now: PW04M
FLAT WASHER 10MM
Price
N/A
314
LOCK WASHER 10MM
Price
N/A
315
Now: PN02M
HEX NUT M10-1.5
Price
N/A
317
PEDAL BAR
$18.20
Enter quantity between 1 and 99
319
$20.40
Enter quantity between 1 and 99
320
RUBBER PAD
$1.90
Enter quantity between 1 and 99
323
CONNECTOR PLATE
$2.95
Enter quantity between 1 and 99
324
BUSHING 20ID X 22OD X 35L
$2.95
Enter quantity between 1 and 99
325
COTTER PIN M3.2 X 25 STANDARD
$1.90
Enter quantity between 1 and 99
326
CLEVIS PIN 10 X 49
$2.20
Enter quantity between 1 and 99
332
CASTER 5", LOCKING SWIVEL
$40.10
Enter quantity between 1 and 99
333
WHEEL 5"
$33.60
Enter quantity between 1 and 99
334
LINKAGE ASSEMBLY
$14.65
Enter quantity between 1 and 99
335
FRAME
$145.70
Enter quantity between 1 and 99
336
MACHINE ID LABEL
$1.90
Enter quantity between 1 and 99
337
PINCHING HAZARD LABEL
$1.90
Enter quantity between 1 and 99
338
GLOSSY BLACK
Price
N/A
MAN
MANUAL T33380 MFD-05.23+ V1.05.23
$1.49
Enter quantity between 1 and 99
