Parts for T33447 - Bear Crawl Rough Surface Mobile Base

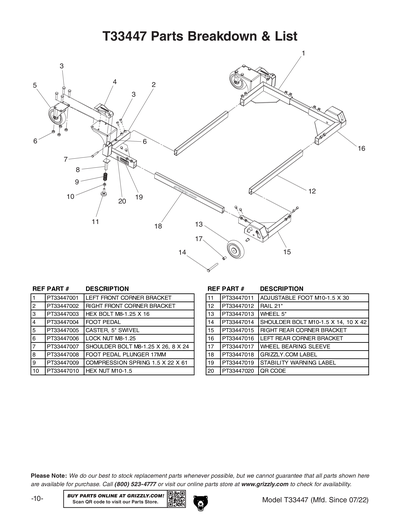

Part Diagram for T33447
Part Diagram for T33447

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
LEFT FRONT CORNER BRACKET
Price
$27.00
2
RIGHT FRONT CORNER BRACKET
Price
$27.00
3
HEX BOLT M8-1.25 X 55
Price
N/A
4
FOOT PEDAL
Price
N/A
5
Price
$27.00
6
LOCK NUT M8-1.25
Price
N/A
7
SHOULDER BOLT M8-1.25 X 26, 8 X 24
Price
$4.70
8
FOOT PEDAL PLUNGER 17MM V2.07.17
Price
N/A
9
COMPRESSION SPRING 22 X 1.5 X 61
Price
N/A
10
LOCK NUT M5-.8
Price
N/A
11
ADJUSTABLE FOOT M10-1.5 X 30
Price
N/A
12
RAIL 21"
Price
N/A
13
Price
$13.70
14
SHOULDER BOLT M10-1.5 X 14, 10 X 55
Price
N/A
15
RIGHT REAR CORNER BRACKET
Price
$27.00
16
LEFT REAR CORNER BRACKET
Price
$27.00
17
Price
$4.70
18
GRIZZLY.COM LABEL 4.25",RED
Price
N/A
19
STABILITY WARNING LABEL
Price
$2.20
20
Price
$4.25
MAN
MANUAL T33447 MFD-07.22+ V1.10.22
Price
$14.65
