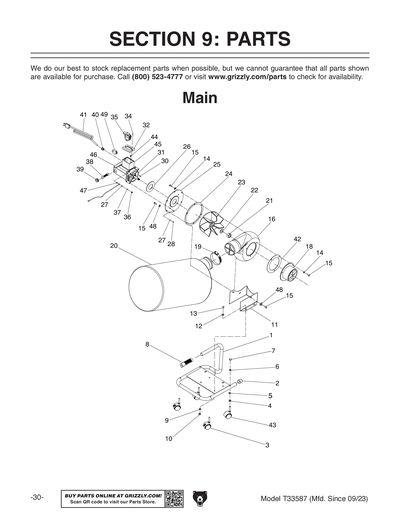

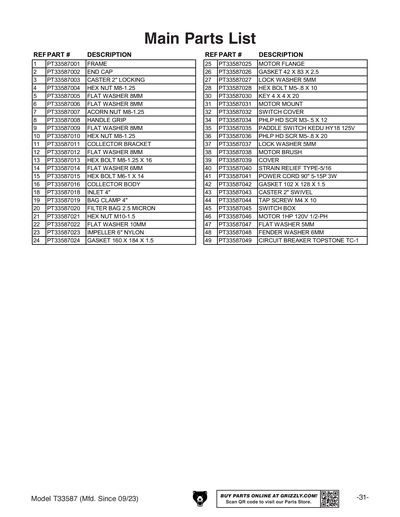

Parts for T33587 Mini Portable Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FRAME
2
END CAP
3
CASTER 2" LOCKING
4
Now: PN03M
HEX NUT M8-1.25
Price
N/A
5
Now: PW01M
FLAT WASHER 8MM
Price
N/A
6
Now: PW01M
FLAT WASHER 8MM
Price
N/A
7
Now: PN18M
ACORN NUT M8-1.25
Price
N/A
8
HANDLE GRIP
9
Now: PW01M
FLAT WASHER 8MM
Price
N/A
10
Now: PN03M
HEX NUT M8-1.25
Price
N/A
11
COLLECTOR BRACKET
12
Now: PW01M
FLAT WASHER 8MM
Price
N/A
13
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
14
Now: PW03M
FLAT WASHER 6MM
Price
N/A
15
HEX BOLT M6-1 X 14
16
COLLECTOR BODY
18
INLET COVER 4"
19
BAG CLAMP 4"
20
2.5 Micron Collection Bag for T33587
Price
N/A
21
Now: PN02M
HEX NUT M10-1.5
Price
N/A
22
Now: PW04M
FLAT WASHER 10MM
Price
N/A
23
IMPELLER 6" NYLON
24
GASKET 160 X 184 X 1.5
25
MOTOR FLANGE
26
GASKET 42 X 83 X 2.5
27
LOCK WASHER 5MM
Price
N/A
28
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
30
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
31
MOTOR MOUNT
32
SWITCH COVER
34
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
35
Now: G8988
Safety Paddle Switch
Price
N/A
36
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
37
LOCK WASHER 5MM
Price
N/A
38
MOTOR BRUSH ASSEMBLY
39
COVER
40
STRAIN RELIEF TYPE-5/16
41
POWER CORD 90" 5-15P 3W
42
GASKET 102 X 128 X 1.5
43
CASTER 2"
44
TAP SCREW M4 X 10
Price
N/A
45
SWITCH BOX
46
MOTOR 1HP 120V 1/2-PH
47
Now: PW02M
FLAT WASHER 5MM
Price
N/A
48
Now: PW03M
FLAT WASHER 6MM
Price
N/A
49
CIRCUIT BREAKER TOPSTONE TC-1

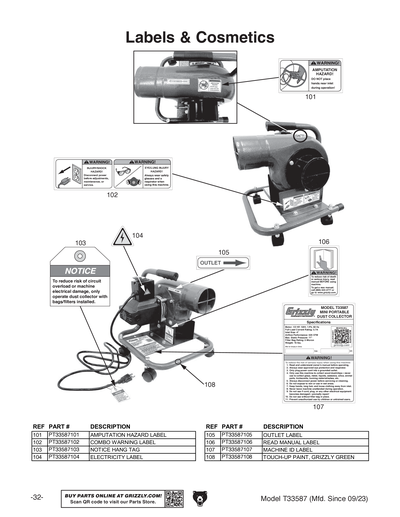

101
AMPUTATION HAZARD LABEL
102
COMBO WARNING LABEL
103
DUST COLLECTORS NOTICE 2.5W X 2.5H
Price
N/A
104
ELECTRICITY 0.7W X 0.6H
Price
N/A
105
OUTLET LABEL
106
READ MANUAL 1.5W X 2.5H
Price
N/A
107
MACHINE ID LABEL V1
107V2
MACHINE ID LABEL V2.04.24
108
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T33587 MFD-05.23-03.24 V1.07.23
MANV2
MANUAL T33587 MFD-04.24+ V2.03.24
