Parts for T33850 - Router Table Wing for Grizzly Hybrid Table Saws

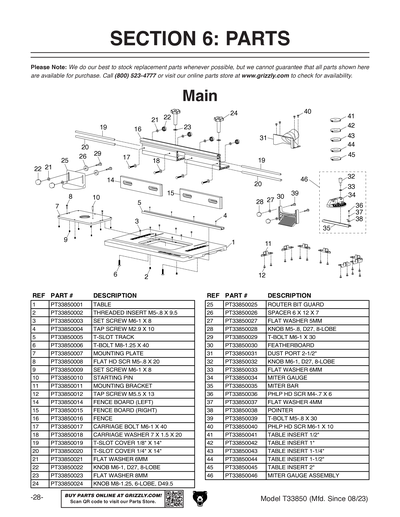

Part Diagram for T33850
Part Diagram for T33850

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
TABLE
Price
$66.80
2
THREADED INSERT M5-.8 X 9.5
Price
$1.60
3
SET SCREW M6-1 X 8
Price
N/A
4
TAP SCREW M2.9 X 10
Price
N/A
5
T-SLOT TRACK
Price
$15.75
6
T-BOLT M8-1.25 X 40
Price
$1.60
7
MOUNTING PLATE
Price
$60.45
8
FLAT HD SCR M5-.8 X 20
Price
N/A
9
SET SCREW M6-1 X 8
Price
N/A
10
STARTING PIN
Price
$1.60
11
MOUNTING BRACKET
Price
$4.95
12
TAP SCREW M5.5 X 13
Price
$1.60
14
FENCE BOARD (LEFT)
Price
$7.55
15
FENCE BOARD (RIGHT)
Price
$7.55
16
FENCE
Price
$122.30
17
CARRIAGE BOLT M6-1 X 40
Price
N/A
18
CARRIAGE WASHER 7 X 1.5 X 20
Price
$1.60
19
T-SLOT COVER 1/8" X 14"
Price
$4.30
20
T-SLOT COVER 1/4" X 14"
Price
$5.65
21
FLAT WASHER 6MM
Price
N/A
22
KNOB M6-1, D27, 8-LOBE
Price
$1.60
23
FLAT WASHER 8MM
Price
N/A
24
KNOB M8-1.25, 6-LOBE, D49.5
Price
$8.80
25
ROUTER BIT GUARD
Price
$9.30
26
SPACER 8 X 25 X 7
Price
$1.80
27
FLAT WASHER 5MM
Price
N/A
28
KNOB M5-.8, D27, 8-LOBE
Price
$1.60
29
T-BOLT M6-1 X 30
Price
$1.60
30
FEATHERBOARD
Price
$11.70
31
DUST PORT 2-1/2"
Price
$17.85
33
FLAT WASHER 6MM
Price
N/A
34
MITER GAUGE
Price
$1.60
35
MITER BAR
Price
$10.65
36
PHLP HD SCR M4-.7 X 6
Price
N/A
37
FLAT WASHER 4MM
Price
N/A
38
POINTER
Price
$1.60
39
T-BOLT M5-.8 X 30
Price
$1.60
40
PHLP HD SCR M6-1 X 10
Price
N/A
41
TABLE INSERT SET (5PK)
Price
$4.15
42
TABLE INSERT SET (5PK)
Price
N/A
43
TABLE INSERT SET (5PK)
Price
N/A
44
TABLE INSERT SET (5PK)
Price
N/A
45
TABLE INSERT SET (5PK)
Price
N/A
46
MITER GAUGE ASSEMBLY
Price
$13.40
MAN
MANUAL T33850 MFD-08.23-02.25 V1.09.23
Price
$14.65
MANV2
MANUAL T33850 MFD-03.25+ V2.03.25
Price
$21.95
