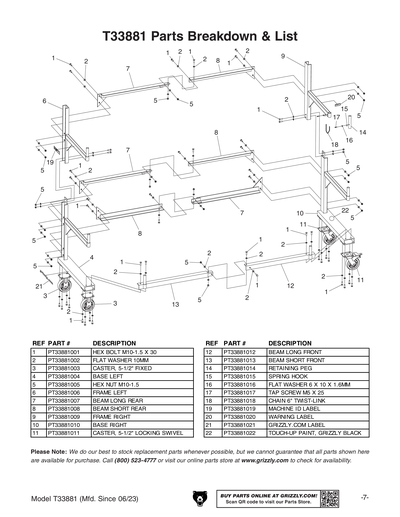

Parts for T33881 Metal Stock Cart, 2200 lb. Capacity

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
2
Now: PW04M
FLAT WASHER 10MM
Price
N/A
3
CASTER, 5-1/2" FIXED
4
BASE LEFT
5
Now: PN02M
HEX NUT M10-1.5
Price
N/A
6
FRAME LEFT
7
BEAM LONG REAR
8
BEAM SHORT REAR
9
FRAME RIGHT
10
BASE RIGHT
11
CASTER, 5-1/2" LOCKING SWIVEL
12
BEAM LONG FRONT
13
BEAM SHORT FRONT
14
RETAINING PEG
15
SPRING HOOK
16
FLAT WASHER 6 X 10 X 1.6MM
17
TAP SCREW M5 X 25
18
CHAIN 6" TWIST-LINK
19
MACHINE ID LABEL
20
WARNING LABEL
21
GRIZZLY.COM LABEL
22
GLOSSY BLACK
Price
N/A
MAN
MANUAL T33881 MFD-06.23+ V1.07.23
