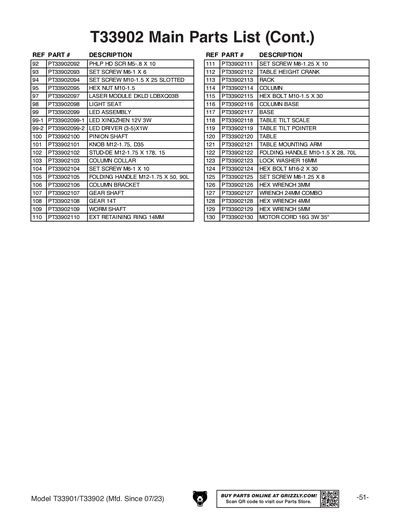

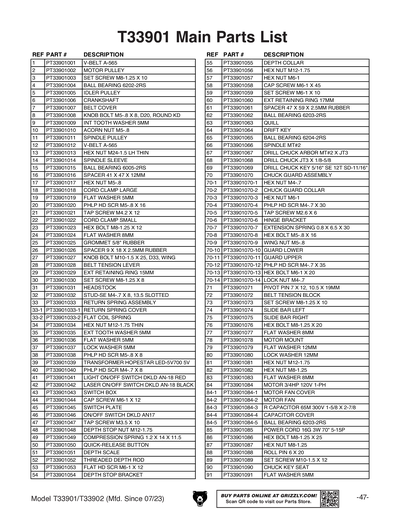

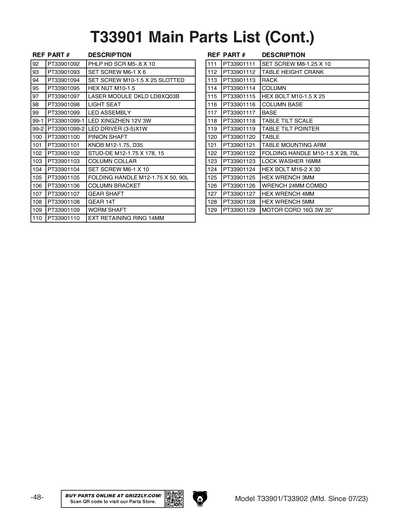

Parts for T33901 - 14" Benchtop Drill Press with LED Light & Laser Guide

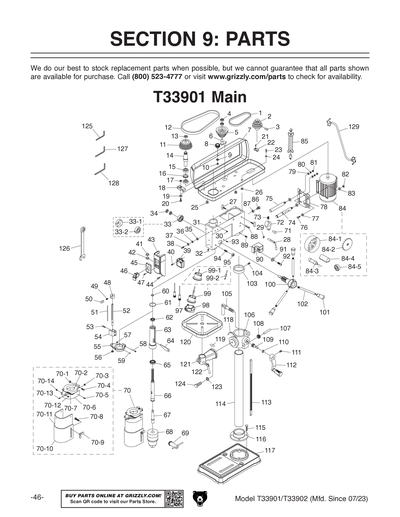

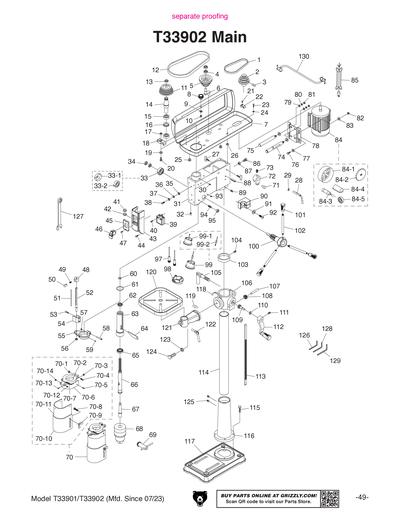

Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901
Part Diagram for T33901

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

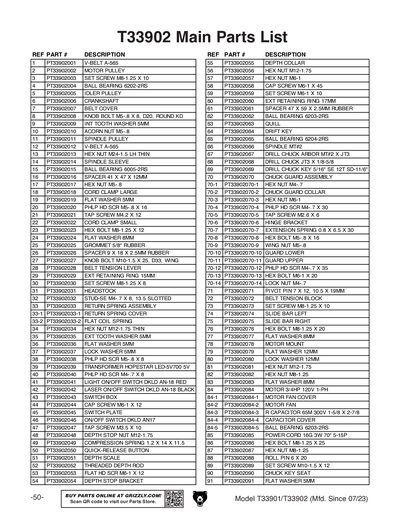

Ref #
Part #
Description
1
V-BELT A-565
Price
$8.10
2
MOTOR PULLEY
Price
$33.45
3
SET SCREW M8-1.25 X 10
Price
N/A
4
BALL BEARING 6202-2RS
Price
N/A
5
IDLER PULLEY
Price
$28.60
6
CRANKSHAFT
Price
N/A
7
BELT COVER
Price
$47.25
7-1
SPINDLE SPEED CHART
Price
$5.85
8
KNOB BOLT M5-.8 X 8, D20, ROUND KD
Price
N/A
9
INT TOOTH WASHER 5MM
Price
N/A
10
ACORN NUT M5-.8
Price
N/A
11
SPINDLE PULLEY
Price
$49.10
12
V-BELT A-565
Price
N/A
13
HEX NUT M24-1.5 LH THIN
Price
$6.70
14
SPINDLE SLEEVE
Price
$24.60
15
BALL BEARING 6005-2RS
Price
N/A
16
SPACER 41 X 47 X 12MM
Price
$4.50
17
HEX NUT M5-.8
Price
N/A
18
CORD CLAMP LARGE
Price
N/A
19
FLAT WASHER 5MM
Price
N/A
20
PHLP HD SCR M5-.8 X 16
Price
N/A
21
TAP SCREW M4.2 X 12
Price
N/A
22
CORD CLAMP SMALL
Price
N/A
23
HEX BOLT M8-1.25 X 12
Price
N/A
24
FLAT WASHER 8MM
Price
N/A
25
BUSHING RUBBER
Price
N/A
26
FLAT WASHER 9 X 18 X 2.5MM RUBBER
Price
N/A
27
KNOB BOLT M10-1.5 X 25, D33, WING
Price
$2.25
28
BELT TENSION LEVER
Price
$12.10
29
EXT RETAINING RING 15MM
Price
N/A
30
SET SCREW M8-1.25 X 8
Price
N/A
31
HEADSTOCK
Price
$98.10
32
STUD-SE M4-.7 X 8, 13.5 SLOTTED
Price
N/A
33
RETURN SPRING ASSEMBLY
Price
$11.20
33-1
RETURN SPRING ASSEMBLY
Price
N/A
33-2
RETURN SPRING ASSEMBLY
Price
N/A
34
HEX NUT M12-1.75 THIN
Price
N/A
35
EXT TOOTH WASHER 5MM
Price
N/A
36
FLAT WASHER 5MM
Price
N/A
37
LOCK WASHER 5MM
Price
N/A
38
PHLP HD SCR M5-.8 X 8
Price
N/A
39
TRANSFORMER HOPESTAR LED-5V700 5V
Price
N/A
40
PHLP HD SCR M4-.7 X 8
Price
N/A
41
LIGHT ON/OFF SWITCH DKLD AN-18 RED
Price
N/A
42
LASER ON/OFF SWITCH DKLD AN-18 BLACK
Price
N/A
43
SWITCH BOX
Price
$10.25
44
CAP SCREW M6-1 X 12
Price
N/A
45
SWITCH PLATE
Price
N/A
46
ON/OFF SWITCH DKLD AN17
Price
N/A
47
TAP SCREW M3.5 X 10
Price
N/A
48
DEPTH STOP NUT M12-1.75
Price
N/A
49
COMPRESSION SPRING 1.2 X 14 X 11.5
Price
N/A
50
QUICK-RELEASE BUTTON
Price
N/A
51
DEPTH SCALE
Price
$2.25
52
THREADED DEPTH ROD
Price
$12.10
53
FLAT HD SCR M6-1 X 12
Price
N/A
54
DEPTH STOP BRACKET
Price
N/A
55
DEPTH COLLAR
Price
$12.95
56
HEX NUT M12-1.75
Price
N/A
57
HEX NUT M6-1
Price
N/A
58
CAP SCREW M6-1 X 45
Price
N/A
59
SET SCREW M6-1 X 10
Price
N/A
60
EXT RETAINING RING 17MM
Price
N/A
61
SPACER 47 X 59 X 2.5MM RUBBER
Price
$1.90
62
BALL BEARING 6203-2RS
Price
N/A
63
QUILL
Price
$40.15
64
DRIFT KEY
Price
$3.65
65
BALL BEARING 6204-2RS
Price
N/A
66
SPINDLE MT#2
Price
$31.25
67
DRILL CHUCK ARBOR MT#2 X JT3
Price
$11.20
68
DRILL CHUCK JT3 X 1/8-5/8 W/KEY
Price
N/A
70
CHUCK GUARD ASSEMBLY
Price
$13.90
70-1
HEX NUT M4-.7
Price
N/A
70-10
CHUCK GUARD ASSEMBLY
Price
N/A
70-11
CHUCK GUARD ASSEMBLY
Price
N/A
70-12
PHLP HD SCR M4-.7 X 35
Price
N/A
70-13
HEX BOLT M6-1 X 20
Price
N/A
70-14
LOCK NUT M4-.7
Price
N/A
70-2
CHUCK GUARD ASSEMBLY
Price
N/A
70-3
HEX NUT M6-1
Price
N/A
70-4
PHLP HD SCR M4-.7 X 30
Price
N/A
70-5
TAP SCREW M2.6 X 6
Price
N/A
70-6
CHUCK GUARD ASSEMBLY
Price
N/A
70-7
CHUCK GUARD ASSEMBLY
Price
N/A
70-8
HEX BOLT M5-.8 X 16
Price
N/A
70-9
WING NUT M5-.8
Price
N/A
71
BELT TENSION BLOCK W/PIVOT PIN
Price
N/A
72
BELT TENSION BLOCK W/PIVOT PIN
Price
N/A
73
SET SCREW M8-1.25 X 10
Price
N/A
74
SLIDE BAR LEFT
Price
$11.65
75
SLIDE BAR RIGHT
Price
$11.65
76
HEX BOLT M8-1.25 X 20
Price
N/A
77
FLAT WASHER 8MM
Price
N/A
78
MOTOR MOUNT
Price
$13.40
79
FLAT WASHER 12MM
Price
N/A
80
LOCK WASHER 12MM
Price
N/A
81
HEX NUT M12-1.75
Price
N/A
82
HEX NUT M8-1.25
Price
N/A
83
FLAT WASHER 8MM
Price
N/A
84
MOTOR 3/4HP 120V 1-PH
Price
$240.70
84-1
MOTOR FAN COVER
Price
$17.90
84-2
MOTOR FAN
Price
$3.65
84-3
R CAPACITOR 65M 300V 1-5/8 X 2-7/8
Price
$22.35
84-4
CAPACITOR COVER
Price
$3.65
84-5
BALL BEARING 6203-2RS
Price
N/A
85
POWER CORD 16G 3W 70" 5-15P
Price
N/A
86
HEX BOLT M8-1.25 X 25
Price
N/A
87
HEX NUT M8-1.25
Price
N/A
88
ROLL PIN 6 X 20
Price
N/A
89
SET SCREW M10-1.5 X 12
Price
N/A
90
CHUCK KEY SEAT
Price
N/A
91
FLAT WASHER 5MM
Price
N/A
92
PHLP HD SCR M5-.8 X 10
Price
N/A
93
SET SCREW M6-1 X 6
Price
N/A
94
SET SCREW M10-1.5 X 25 SLOTTED
Price
N/A
95
HEX NUT M10-1.5
Price
N/A
97
LASER MODULE DKLD LDBXQ03B
Price
N/A
98
LIGHT SEAT
Price
N/A
99
LED ASSEMBLY
Price
N/A
99-1
LED XINGZHEN 12V 3W
Price
N/A
99-2
LED DRIVER (3-5)X1W
Price
N/A
100
PINION SHAFT
Price
$53.50
101
KNOB M12-1.75, D35
Price
$7.20
102
STUD-DE M12-1.75 X 178, 15
Price
$10.25
103
COLUMN COLLAR
Price
$16.10
104
SET SCREW M6-1 X 10
Price
N/A
105
FOLDING HANDLE M12-1.75 X 50, 90L
Price
N/A
106
COLUMN BRACKET
Price
$11.20
107
GEAR SHAFT
Price
N/A
108
GEAR 14T
Price
N/A
109
WORM SHAFT
Price
N/A
110
EXT RETAINING RING 14MM
Price
N/A
111
SET SCREW M8-1.25 X 10
Price
N/A
112
TABLE HEIGHT CRANK
Price
N/A
113
RACK
Price
$20.50
114
COLUMN
Price
$77.15
115
HEX BOLT M10-1.5 X 25
Price
N/A
116
COLUMN BASE
Price
$29.00
117
BASE
Price
$71.35
118
TABLE TILT SCALE
Price
$2.25
119
TABLE TILT POINTER
Price
$2.25
120
TABLE
Price
$120.40
121
TABLE MOUNTING ARM
Price
$43.70
122
FOLDING HANDLE M10-1.5 X 28, 70L
Price
$6.70
123
LOCK WASHER 16MM
Price
N/A
124
HEX BOLT M16-2 X 30
Price
N/A
125
HEX WRENCH 3MM
Price
N/A
126
WRENCH 24MM COMBO
Price
$20.10
127
HEX WRENCH 4MM
Price
N/A
128
HEX WRENCH 5MM
Price
N/A
129
MOTOR CORD 16G 3W 35"
Price
$29.00

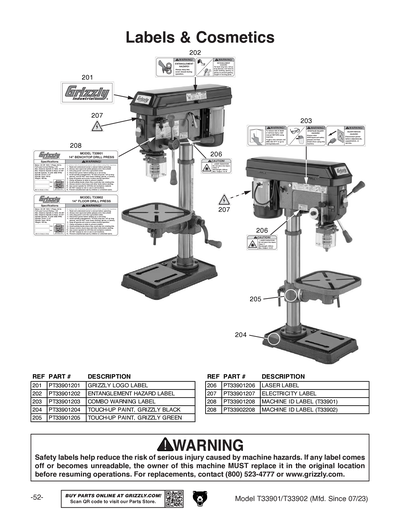

201
GRIZZLY LOGO LABEL
Price
N/A
202
ENTANGLEMENT HAZARD LABEL
Price
N/A
203
COMBO WARNING LABEL
Price
N/A
204
GLOSSY BLACK
Price
N/A
205
N/S GRIZZLY GREEN G1023S
Price
N/A
206
LASER LABEL
Price
N/A
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
MACHINE ID LABEL
Price
$10.95
MAN
MANUAL T33901 MFD-07.23+ V1.09.23
