Parts for T33903 - 17" Floor Drill Press with LED Light & Laser Guide

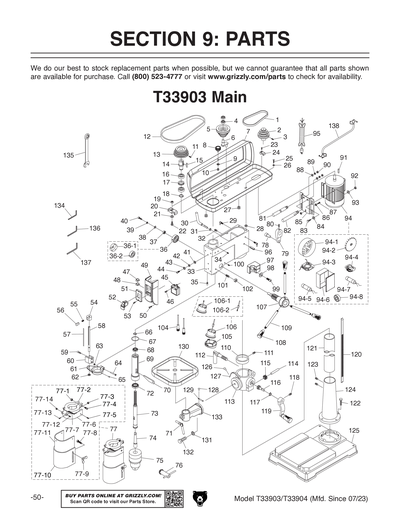

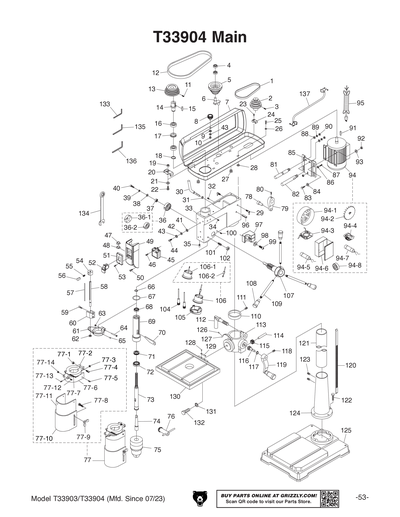

Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903
Part Diagram for T33903

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

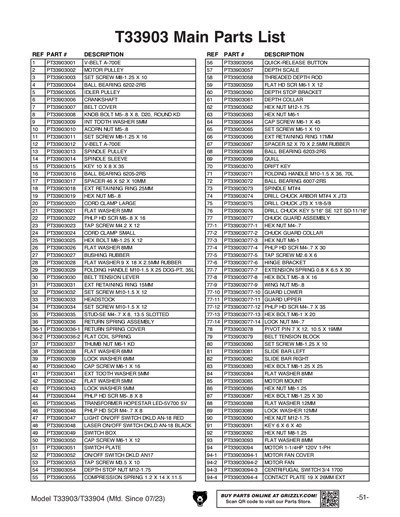

Ref #
Part #
Description
1
V-BELT A-700E
Price
$8.95
2
MOTOR PULLEY
Price
N/A
3
SET SCREW M8-1.25 X 10
Price
N/A
4
BALL BEARING 6202-2RS
Price
N/A
5
IDLER PULLEY
Price
N/A
6
CRANKSHAFT
Price
N/A
7
BELT COVER
Price
$60.20
8
KNOB BOLT M5-.8 X 8, D20, ROUND KD
Price
N/A
9
INT TOOTH WASHER 5MM
Price
N/A
10
ACORN NUT M5-.8
Price
N/A
11
SET SCREW M8-1.25 X 16
Price
N/A
12
V-BELT A-700E
Price
N/A
13
SPINDLE PULLEY
Price
N/A
14
SPINDLE SLEEVE
Price
$49.10
15
KEY 10 X 8 X 35
Price
$1.90
16
BALL BEARING 6205-2RS
Price
N/A
17
SPACER 46 X 52 X 10MM
Price
$4.50
18
EXT RETAINING RING 25MM
Price
N/A
19
HEX NUT M5-.8
Price
N/A
20
CORD CLAMP LARGE
Price
N/A
21
FLAT WASHER 5MM
Price
N/A
22
PHLP HD SCR M5-.8 X 16
Price
N/A
23
TAP SCREW M4.2 X 12
Price
N/A
24
CORD CLAMP SMALL
Price
N/A
25
HEX BOLT M8-1.25 X 12
Price
N/A
26
FLAT WASHER 8MM
Price
N/A
27
BUSHING RUBBER
Price
N/A
28
FLAT WASHER 9 X 18 X 2.5MM RUBBER
Price
N/A
29
FOLDING HANDLE M10-1.5 X 25 DOG-PT, 35L
Price
N/A
30
BELT TENSION LEVER
Price
N/A
31
EXT RETAINING RING 15MM
Price
N/A
32
SET SCREW M10-1.5 X 12
Price
N/A
33
HEADSTOCK
Price
$213.95
34
SET SCREW M10-1.5 X 12
Price
N/A
35
STUD-SE M4-.7 X 8, 13.5 SLOTTED
Price
N/A
36
RETURN SPRING ASSEMBLY
Price
N/A
36-1
RETURN SPRING ASSEMBLY
Price
N/A
36-2
RETURN SPRING ASSEMBLY
Price
N/A
37
THUMB NUT M6-1 KD
Price
N/A
38
FLAT WASHER 6MM
Price
N/A
39
LOCK WASHER 6MM
Price
N/A
40
CAP SCREW M6-1 X 16
Price
N/A
41
EXT TOOTH WASHER 5MM
Price
N/A
42
FLAT WASHER 5MM
Price
N/A
43
LOCK WASHER 5MM
Price
N/A
44
PHLP HD SCR M5-.8 X 8
Price
N/A
45
TRANSFORMER HOPESTAR LED-5V700 5V
Price
N/A
46
PHLP HD SCR M4-.7 X 8
Price
N/A
47
LIGHT ON/OFF SWITCH DKLD AN-18 RED
Price
N/A
48
LASER ON/OFF SWITCH DKLD AN-18 BLACK
Price
N/A
49
SWITCH BOX
Price
$12.50
50
CAP SCREW M6-1 X 12
Price
N/A
51
SWITCH PLATE
Price
N/A
52
ON/OFF SWITCH DKLD AN17
Price
N/A
53
TAP SCREW M3.5 X 10
Price
N/A
54
DEPTH STOP NUT M12-1.75
Price
N/A
55
COMPRESSION SPRING 1.2 X 14 X 11.5
Price
N/A
56
QUICK-RELEASE BUTTON
Price
N/A
57
DEPTH SCALE
Price
N/A
58
THREADED DEPTH ROD
Price
N/A
59
FLAT HD SCR M6-1 X 12
Price
N/A
60
DEPTH STOP BRACKET
Price
N/A
61
DEPTH COLLAR
Price
$13.40
62
HEX NUT M12-1.75
Price
N/A
63
HEX NUT M6-1
Price
N/A
64
CAP SCREW M6-1 X 45
Price
N/A
65
SET SCREW M6-1 X 10
Price
N/A
66
EXT RETAINING RING 17MM
Price
N/A
67
SPACER 52 X 70 X 2.5MM RUBBER
Price
$1.90
68
BALL BEARING 6203-2RS
Price
N/A
69
QUILL
Price
$53.50
70
DRIFT KEY
Price
N/A
71
FOLDING HANDLE M10-1.5 X 28, 70L
Price
N/A
72
BALL BEARING 6007-2RS
Price
N/A
73
SPINDLE MT#4
Price
$62.45
74
DRILL CHUCK ARBOR MT#4 X JT3
Price
N/A
75
DRILL CHUCK JT3 X 1/8-5/8 W/KEY
Price
N/A
76
DRILL CHUCK JT3 X 1/8-5/8 W/KEY
Price
N/A
77
CHUCK GUARD ASSEMBLY
Price
N/A
77-1
HEX NUT M4-.7
Price
N/A
77-10
CHUCK GUARD ASSEMBLY
Price
N/A
77-11
CHUCK GUARD ASSEMBLY
Price
N/A
77-12
PHLP HD SCR M4-.7 X 35
Price
N/A
77-13
HEX BOLT M6-1 X 20
Price
N/A
77-14
LOCK NUT M4-.7
Price
N/A
77-2
CHUCK GUARD ASSEMBLY
Price
N/A
77-3
HEX NUT M6-1
Price
N/A
77-4
PHLP HD SCR M4-.7 X 30
Price
N/A
77-5
TAP SCREW M2.6 X 6
Price
N/A
77-6
CHUCK GUARD ASSEMBLY
Price
N/A
77-7
CHUCK GUARD ASSEMBLY
Price
N/A
77-8
HEX BOLT M5-.8 X 16
Price
N/A
77-9
WING NUT M5-.8
Price
N/A
78
BELT TENSION BLOCK W/PIVOT PIN
Price
N/A
79
BELT TENSION BLOCK W/PIVOT PIN
Price
N/A
80
SET SCREW M8-1.25 X 10
Price
N/A
81
SLIDE BAR LEFT
Price
$13.40
82
SLIDE BAR RIGHT
Price
N/A
83
HEX BOLT M8-1.25 X 25
Price
N/A
84
FLAT WASHER 8MM
Price
N/A
85
MOTOR MOUNT
Price
N/A
86
HEX NUT M8-1.25
Price
N/A
87
HEX BOLT M8-1.25 X 30
Price
N/A
88
FLAT WASHER 12MM
Price
N/A
89
LOCK WASHER 12MM
Price
N/A
90
HEX NUT M12-1.75
Price
N/A
91
KEY 6 X 6 X 40
Price
N/A
92
HEX NUT M8-1.25
Price
N/A
93
FLAT WASHER 8MM
Price
N/A
94
MOTOR 1-1/4HP 120V 1-PH
Price
N/A

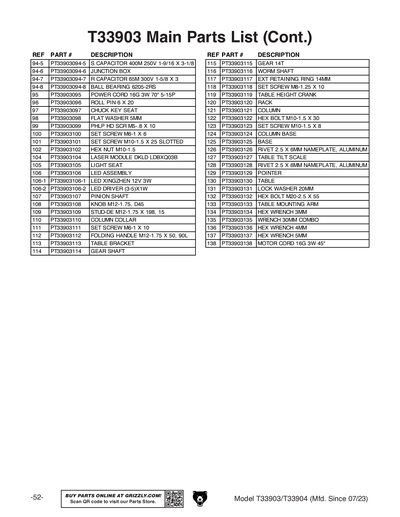

94-1
MOTOR FAN COVER
Price
N/A
94-2
MOTOR FAN
Price
N/A
94-3
CENTRIFUGAL SWITCH 3/4 1700
Price
N/A
94-4
CONTACT PLATE 19 X 26MM EXT
Price
N/A
94-5
S CAPACITOR 400M 250V 1-9/16 X 3-1/8
Price
N/A
94-6
JUNCTION BOX
Price
N/A
94-7
R CAPACITOR 65M 300V 1-5/8 X 3
Price
N/A
94-8
BALL BEARING 6205-2RS
Price
N/A
95
POWER CORD 16G 3W 70" 5-15P
Price
N/A
96
ROLL PIN 6 X 20
Price
N/A
97
CHUCK KEY SEAT
Price
N/A
98
FLAT WASHER 5MM
Price
N/A
99
PHLP HD SCR M5-.8 X 10
Price
N/A
100
SET SCREW M6-1 X 6
Price
N/A
101
SET SCREW M10-1.5 X 25 SLOTTED
Price
N/A
102
HEX NUT M10-1.5
Price
N/A
104
LASER MODULE DKLD LDBXQ03B
Price
N/A
105
LIGHT SEAT
Price
N/A
106
LED ASSEMBLY
Price
N/A
106-1
LED XINGZHEN 12V 3W
Price
N/A
106-2
LED DRIVER (3-5)X1W
Price
N/A
107
PINION SHAFT
Price
$57.95
108
KNOB M12-1.75, D45
Price
N/A
109
STUD-DE M12-1.75 X 198, 15
Price
$17.90
110
COLUMN COLLAR
Price
N/A
111
SET SCREW M6-1 X 10
Price
N/A
112
FOLDING HANDLE M12-1.75 X 50, 90L
Price
N/A
113
TABLE BRACKET
Price
N/A
114
GEAR SHAFT
Price
N/A
115
GEAR 14T
Price
N/A
116
WORM SHAFT
Price
N/A
117
EXT RETAINING RING 14MM
Price
N/A
118
SET SCREW M8-1.25 X 10
Price
N/A
119
TABLE HEIGHT CRANK
Price
N/A
120
RACK
Price
N/A
121
COLUMN
Price
N/A
122
HEX BOLT M10-1.5 X 30
Price
N/A
123
SET SCREW M10-1.5 X 8
Price
N/A
124
COLUMN BASE
Price
N/A
125
BASE
Price
N/A
126
RIVET 2.5 X 6MM NAMEPLATE, ALUMINUM
Price
N/A
127
TABLE TILT SCALE
Price
N/A
128
RIVET 2.5 X 6MM NAMEPLATE, ALUMINUM
Price
N/A
129
POINTER
Price
N/A
130
TABLE
Price
$138.20
131
LOCK WASHER 20MM
Price
N/A
132
HEX BOLT M20-2.5 X 55
Price
N/A
133
TABLE MOUNTING ARM
Price
$49.10
134
HEX WRENCH 3MM
Price
N/A
135
WRENCH 30MM COMBO
Price
N/A
136
HEX WRENCH 4MM
Price
N/A
137
HEX WRENCH 5MM
Price
N/A
138
MOTOR CORD 16G 3W 45"
Price
N/A

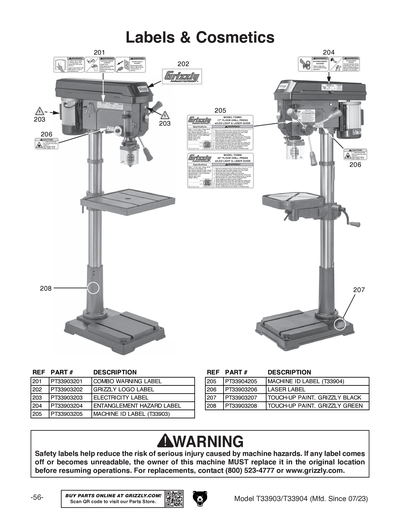

201
COMBO WARNING LABEL
Price
N/A
202
GRIZZLY LOGO LABEL
Price
N/A
203
ELECTRICITY 0.7W X 0.6H
Price
N/A
204
ENTANGLEMENT HAZARD LABEL
Price
N/A
205
MACHINE ID LABEL
Price
$10.95
206
LASER LABEL
Price
N/A
207
GLOSSY BLACK
Price
N/A
208
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T33903/T33904 MFD-07.23+ V1.01.24
Price
N/A
