Parts for T33926 2/3 HP Variable-Speed 4-Roller Power Feeder, Single-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

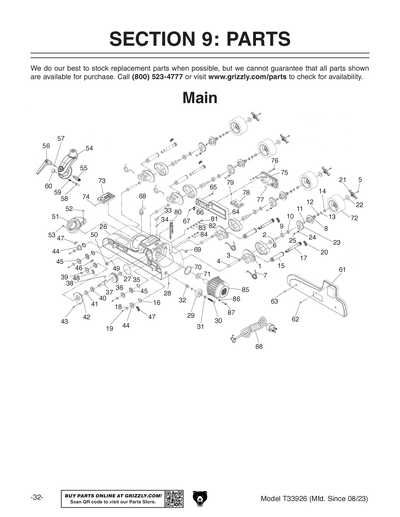

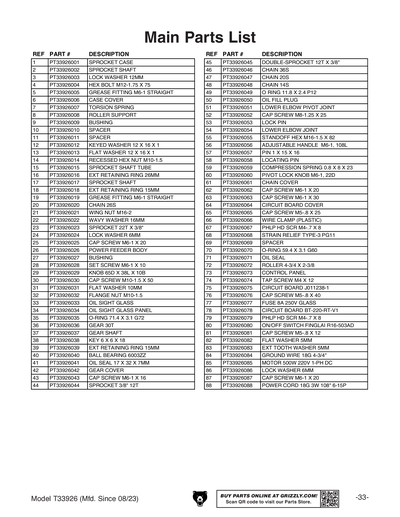

1
***USE P1096103***
Price
N/A
2
SPROCKET SHAFT
Price
N/A
3
LOCK WASHER 12MM
Price
N/A
4
Now: PB43M
HEX BOLT M12-1.75 X 75
Price
N/A
5
***USE P4179501***
Price
N/A
6
***USE P1096109***
Price
N/A
7
TORSION SPRING
Price
N/A
8
ROLLER SUPPORTER
Price
N/A
9
BUSHING
Price
N/A
10
SPACER
Price
N/A
11
SPACER
Price
N/A
12
KEYED WASHER 12 X 16 X 1
Price
N/A
13
FLAT WASHER 12 X 16 X 1
Price
N/A
14
RECESSED HEX NUT M10-1.5
Price
N/A
15
SPROCKET SHAFT TUBE
Price
N/A
16
Now: PR17M
EXT RETAINING RING 26MM
Price
N/A
17
SPROCKET SHAFT
18
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
19
***USE P4179501***
Price
N/A
20
CHAIN 26S
21
***USE P4179501***
Price
N/A
22
WAVY WASHER 16MM
Price
N/A
23
SPROCKET 22T X 3/8"
Price
N/A
24
LOCK WASHER 6MM
Price
N/A
25
CAP SCREW M6-1 X 20
Price
N/A
26
POWER FEEDER BODY
27
***USE P4181576***
Price
N/A
28
SET SCREW M6-1 X 10
Price
N/A
29
KNOB 65D X 38L X 10B
Price
N/A
30
CAP SCREW M10-1.5 X 50
Price
N/A
31
Now: PW04M
FLAT WASHER 10MM
Price
N/A
32
FLANGE NUT M10-1.5
Price
N/A
33
OIL SIGHT GLASS
Price
N/A
34
OIL SIGHT GLASS PANEL
Price
N/A
35
O RING 71.4 X 3.1 G72
Price
N/A
36
WORM GEAR 30T
Price
N/A
37
WORM GEAR SHAFT
Price
N/A
38
KEY 6 X 6 X 18
Price
N/A
39
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
40
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
41
OIL SEAL 17 X 32 X 7MM
Price
N/A
42
WORM GEAR COVER
Price
N/A
43
CAP SCREW M6-1 X 16
Price
N/A
44
SPROCKET 3/8" 12T
Price
N/A
45
DOUBLE-SPROCKET 12T X 3/8"
Price
N/A
46
CHAIN 36S
47
CHAIN 20S
48
CHAIN 14S
49
O RING 11.8 X 2.4 P12
Price
N/A
50
***USE P4181521-1***
Price
N/A
51
LOWER ELBOW PIVOT JOINT
Price
N/A
52
CAP SCREW M8-1.25 X 25
Price
N/A
53
LOWER ELBOW PIVOT JOINT
Price
N/A
54
LOWER ELBOW JOINT
Price
N/A
55
STANDOFF HEX M16-1.5 X 82
Price
N/A
56
ADJUSTABLE HANDLE 108L
Price
N/A
57
PIN 1 X 15 X 16
58
LOCK PIN
Price
N/A
59
COMPRESSION SPRING 0.8 X 8 X 23
Price
N/A
60
PIVOT LOCK KNOB M6-1, 22D
Price
N/A
61
CHAIN COVER
62
CAP SCREW M6-1 X 20
Price
N/A
63
CAP SCREW M6-1 X 30
Price
N/A
64
CIRCUIT BOARD COVER
65
CAP SCREW M5-.8 X 25
Price
N/A
66
WIRE CLAMP (PLASTIC)
67
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
68
STRAIN RELIEF TYPE-3 PG11
Price
N/A
69
SPACER
70
***USE P417683B***
Price
N/A
71
MOTOR OIL SEAL
72
120mm x 60mm Replacement Roller for G0826
Price
N/A
73
CONTROL PANEL
74
TAP SCREW M4 X 12
Price
N/A
75
CIRCUIT BOARD J011238-1
76
CAP SCREW M5-.8 X 40
Price
N/A
77
FUSE 8A 250V GLASS
78
CIRCUIT BOARD BT-220-RT-V1
79
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
80
ON/OFF SWITCH
Price
N/A
81
***USE PCAP3M***
Price
N/A
82
Now: PW02M
FLAT WASHER 5MM
Price
N/A
83
EXT TOOTH WASHER 5MM
Price
N/A
84
GROUND WIRE 18G 4-3/4"
85
MOTOR 500W 220V 1-PH DC
86
LOCK WASHER 6MM
Price
N/A
87
CAP SCREW M6-1 X 20
Price
N/A
88
POWER CORD 18G 3W 108" 6-15P

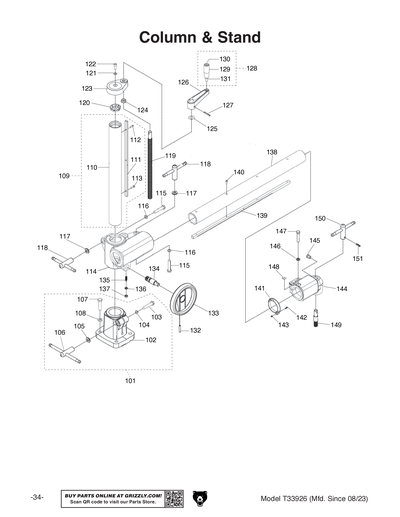

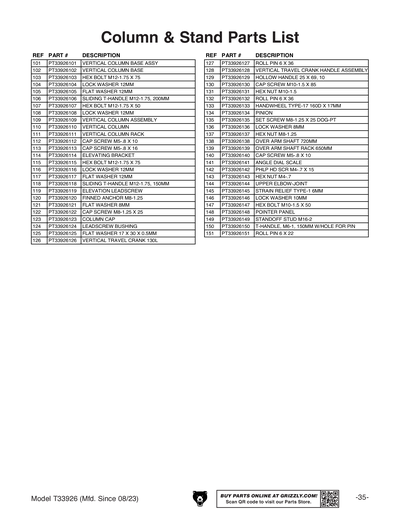

101
VERTICAL COLUMN BASE ASSY
Price
N/A
102
VERTICAL COLUMN BASE
Price
N/A
103
Now: PB43M
HEX BOLT M12-1.75 X 75
Price
N/A
104
LOCK WASHER 12MM
Price
N/A
105
Now: PW06M
FLAT WASHER 12MM
Price
N/A
106
SLIDING T-HANDLE 200MM
Price
N/A
107
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
108
LOCK WASHER 12MM
Price
N/A
109
VERTICAL COLUMN ASSEMBLY
Price
N/A
110
VERTICAL COLUMN
Price
N/A
111
VERTICAL COLUMN RACK
Price
N/A
112
CAP SCREW M5-.8 X 10
Price
N/A
113
CAP SCREW M5-.8 X 16
Price
N/A
114
ELEVATING BRACKET
Price
N/A
115
Now: PB43M
HEX BOLT M12-1.75 X 75
Price
N/A
116
LOCK WASHER 12MM
Price
N/A
117
Now: PW06M
FLAT WASHER 12MM
Price
N/A
118
SLIDING T-HANDLE 150MM
Price
N/A
119
ELEVATION LEADSCREW
Price
N/A
120
FINNED ANCHOR M8-1.25
Price
N/A
121
Now: PW01M
FLAT WASHER 8MM
Price
N/A
122
CAP SCREW M8-1.25 X 25
Price
N/A
123
COLUMN CAP
Price
N/A
124
LEADSCREW BUSHING
Price
N/A
125
FLAT WASHER 17 X 30 X 0.5
Price
N/A
126
ELEVATION HANDLE ARM 130L
Price
N/A
127
ROLL PIN 6 X 36
Price
N/A
128
ELEVATION HANDLE ASSEMBLY
Price
N/A
129
ELEVATION HANDLE ASSEMBLY
Price
N/A
130
CAP SCREW M10-1.5 X 85
Price
N/A
131
Now: PN02M
HEX NUT M10-1.5
Price
N/A
132
ROLL PIN 6 X 36
Price
N/A
133
HANDWHEEL TYPE-17 160D
Price
N/A
134
PINION
Price
N/A
135
SET SCREW M8-1.25 X 25 DOG-PT
Price
N/A
136
LOCK WASHER 8MM
Price
N/A
137
Now: PN03M
HEX NUT M8-1.25
Price
N/A
138
OVER-ARM SHAFT 720MM
Price
N/A
139
OVERARM SHAFT RACK 650MM
Price
N/A
140
CAP SCREW M5-.8 X 10
Price
N/A
141
ANGLE DIAL SCALE
Price
N/A
142
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
143
Now: PN04M
HEX NUT M4-.7
Price
N/A
144
UPPER ELBOW JOINT
Price
N/A
145
CORD RETAINER PLUG
Price
N/A
146
LOCK WASHER 10MM
Price
N/A
147
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
148
POINTER PANEL
Price
N/A
149
STANDOFF STUD M16-2
Price
N/A
150
T-HANDLE, 150MM W/HOLE FOR PIN
Price
N/A
151
ROLL PIN 6 X 22
Price
N/A

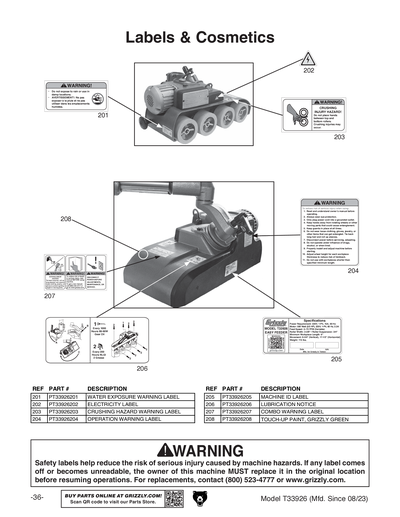

201
WATER EXPOSURE WARNING LABEL
Price
N/A
202
ELECTRICITY 0.7W X 0.6H
Price
N/A
203
SLIP ROLL WARNING 2.8W X 1.5H
Price
N/A
204
OPERATION WARNING LABEL
Price
N/A
205
LUBRICATION NOTICE
206
MACHINE ID LABEL
207
COMBO WARNING LABEL
208
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T33926 MFD-01.23+ V1.09.23
