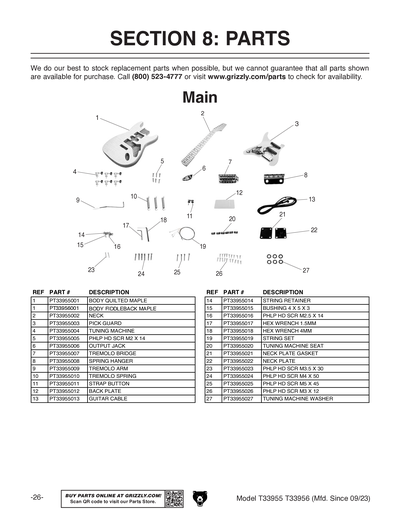

Parts for T33955 Quilted Maple Electric Guitar Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BODY, QUILTED MAPLE
2
NECK
3
PICK GUARD
4
TUNING MACHINE
5
TAP SCREW M2.2 X 10
6
OUTPUT JACK
7
TREMOLO ASSEMBLY
11
STRAP BUTTON
12
BACK PLATE
13
GUITAR CABLE
14
STRING RETAINER
15
BUSHING 2.5 X 5 X 5MM
16
WOOD SCREW M2.2 X 12
19
STRING SET
20
TUNING MACHINE SEAT
21
NECK PLATE GASKET
22
NECK PLATE
23
WOOD SCREW M4 X 32
24
WOOD SCREW M4 X 25
25
WOOD SCREW M5 X 40
26
TAP SCREW M2.5 X 8
27
TUNING MACHINE WASHER 8 X 14 X 1
28
WOOD SCREW M3 X 20
29
BUSHING 2.5 X 5 X 2.5MM
30
SOLDERING WIRE 60/40 ROSIN-CORE .062"
31
PAD 4 X 10 X 1.5MM
32
NUT
MAN
MANUAL T33955/56 MFD-09.23+ V1.12.23
