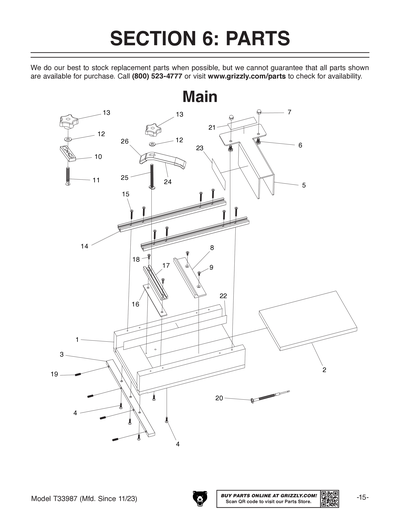

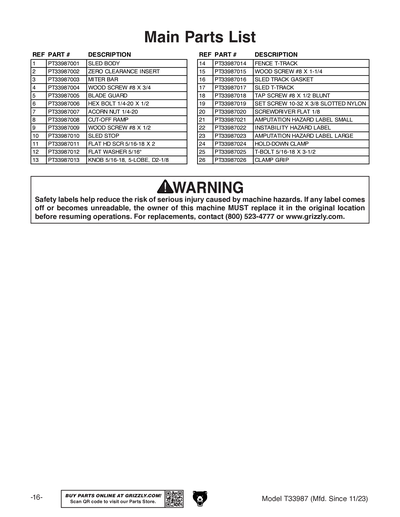

Parts for T33987 Small Item Table Saw Crosscut Sled

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SLED BODY
2
ZERO CLEARANCE INSERT
3
MITER BAR
4
WOOD SCREW #8 X 3/4
5
BLADE GUARD
8
CUT-OFF RAMP
9
WOOD SCREW #8 X 1/2
10
SLED STOP
11
FLAT HD SCR 5/16-18 X 2
13
KNOB 5/16-18, 5-LOBE, D2-1/8
14
FENCE T-TRACK
16
SLED TRACK GASKET
17
SLED T-TRACK
18
TAP SCREW #8 X 1/2 BLUNT
19
SET SCREW 10-32 X 3/8 SLOTTED NYLON
20
SCREWDRIVER FLAT 1/8
21
AMPUTATION HAZARD LABEL SMALL
22
INSTABILITY HAZARD LABEL
23
AMPUTATION HAZARD LABEL LARGE
24
HOLD-DOWN CLAMP
25
T-BOLT 5/16-18 X 3-1/2
26
CLAMP GRIP
MAN
MANUAL T33987 MFD-11.23+ V1.01.24
