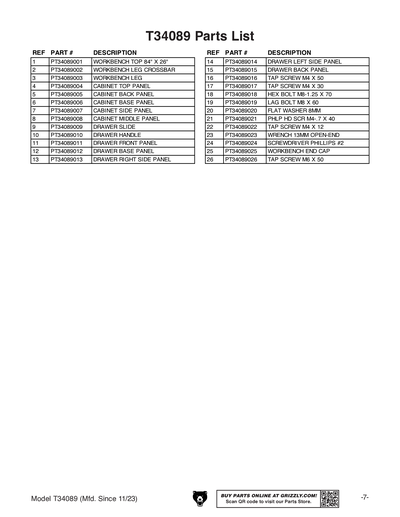

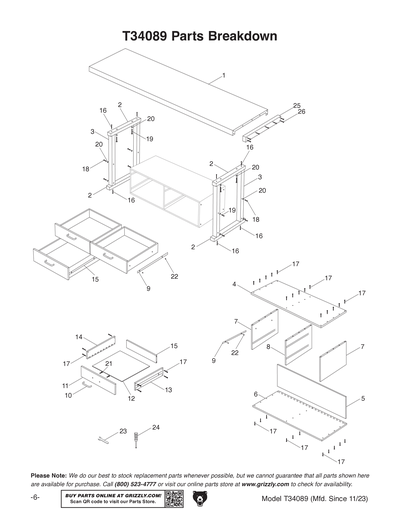

Parts for T34089 84" 4-Drawer Butcher Block Workbench

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
WORKBENCH TOP 84" X 26"
2
WORKBENCH LEG CROSSBAR
3
WORKBENCH LEG
4
CABINET TOP PANEL
5
CABINET BACK PANEL
6
CABINET BASE PANEL
7
CABINET SIDE PANEL
8
CABINET MIDDLE PANEL
9
DRAWER SLIDE
10
DRAWER HANDLE
Price
N/A
11
DRAWER FRONT PANEL
12
DRAWER BASE PANEL
13
DRAWER RIGHT SIDE PANEL
14
DRAWER LEFT SIDE PANEL
15
DRAWER BACK PANEL
17
TAP SCREW M4 X 30
19
LAG BOLT M8 X 60
23
WRENCH 13MM OPEN-END
25
WORKBENCH END CAP
26
TAP SCREW M6 X 50
MAN
MANUAL T34089 MFD-11.23+ V1.12.23
