Parts for W1671 - 3/4 HP Mortising Machine

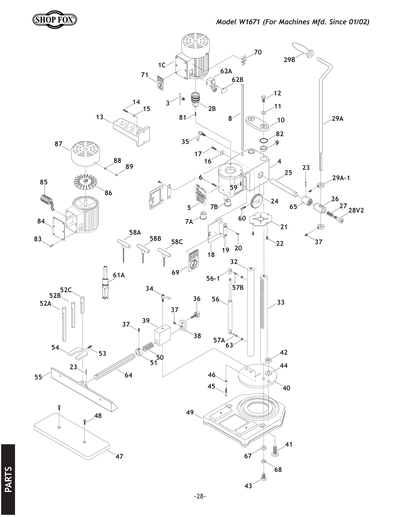

Part Diagram for W1671

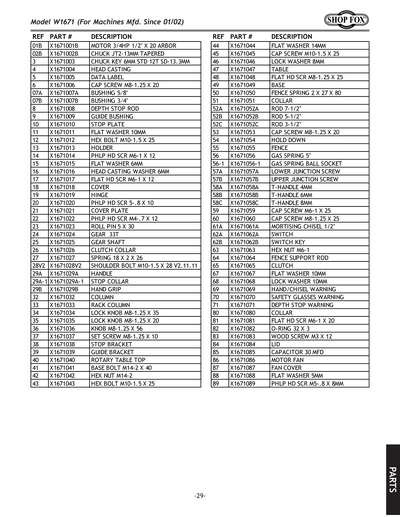

Part Diagram for W1671
Part Diagram for W1671
Part Diagram for W1671

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*MOTOR 1/2HP 3/8"-24 ARBOR V1
Price
$162.40
1A
*DISCD*CAPACITOR
Price
$320.85
1B
*DISCD*MOTOR 3/4HP 1/2" X 20 ARBOR
Price
$185.45
1B-1
*DISCD*MOTOR FAN COVER V2.01.02
Price
$7.60
1B-2
*DISCD*MOTOR FAN V2.01.02
Price
$7.35
1B-3
*DISCD*R CAPACITOR 30M 300V
Item is no longer available
Price
N/A
1B-4
*DISCD*POWER CORD 110V
Item is no longer available
Price
N/A
1B-5
*DISCD*MOTOR SWITCH BOX 2PC
Item is no longer available
Price
N/A
1B-6
*DISCD*MOTOR SWITCH BOX COVER
Price
$3.45
1B-7
*DISCD*ARBOR FOR 3/4 HP MOTOR
Price
$13.30
1C
MOTOR 3/4HP WITH JT2 ARBOR V3.03.02
Price
$200.20
1C-1
MOTOR FAN COVER V3.03.02
Price
$3.65
1C-2
MOTOR FAN V3.03.02
Price
$8.85
1C-3
R CAPACITOR 30M 300V V3.03.02
Price
$13.35
1C-4
POWER CORD 110V V3.03.02
Price
$18.70
1C-5
MOTOR SWITCH BOX V3.03.02
Price
$7.50
1C-6
MOTOR SWITCH BOX COVER V3.03.02
Price
$4.60
1C-7
ARBOR FOR 3/4 HP MOTOR V3.03.02
Price
$16.65
2
CHUCK 3/8-24 TPI
Price
N/A
2A
*DISCD*CHUCK 1/2-20 THREADED
Price
$13.15
2B
CHUCK JT2-13MM TAPERED
Price
$24.75
3
DRL CHK KEY 6MM STD 12T SD-13.3MM
Price
$3.35
3A
*DISCD*CHUCK KEY 1/2-20 THREADED
Item is no longer available
Price
N/A
4
HEAD CASTING
Price
$82.35
5
DATA LABEL
Price
$1.45
6
CAP SCREW M8-1.25 X 20
Price
N/A
7
*DISCD*BUSHING
Item is no longer available
Price
N/A
7A
BUSHING 5/8"
Price
$4.20
7B
BUSHING 3/4"
Price
$3.35
8
DEPTH STOP ROD
Price
$6.65
9
GUIDE BUSHING
Price
$1.90
10
STOP PLATE
Price
$9.95
11
FLAT WASHER 10MM
Price
N/A
12
HEX BOLT M10-1.5 X 25
Price
N/A
13
HOLDER
Price
$3.35
14
PHLP HD SCR M6-1 X 12
Price
N/A
15
FLAT WASHER 6MM
Price
N/A
16
HEAD CASTING WASHER 6MM
Price
$1.90
17
FLAT HD SCR M6-1 X 12
Price
N/A
18
COVER
Price
$4.35
19
HINGE
Price
$1.90
20
PHLP HD SCR M5-.8 X 10
Price
N/A
21
COVER PLATE
Price
$2.15
22
PHLP HD SCR M4-.7 X 12
Price
N/A
23
ROLL PIN 5 X 30
Price
N/A
24
GEAR 33T
Price
$24.75
25
GEAR SHAFT
Price
$6.65
26
CLUTCH COLLAR V1.11.00
Price
$13.25
26A
*DISCD*CLUTCH COLLAR V2.01.02
Price
$7.45
27
SPRING 18 X 2 X 26
Price
$1.90
28
SHOULDER BOLT M10-1.5X15
Price
$2.60
28V2
*DISCD*SHOULDER BOLT M10-1.5 X 28 V2.11.
Item is no longer available
Price
N/A
29
*DISCD*HANDLE V1.11.00
Price
$2.30
29A
HANDLE V2.01.02
Price
$24.75
29A-1
HANDLE STOP COLLAR
Price
$1.90
29A-2
HANDLE GRIP
Price
$3.35
30
X1671030
Now: PW01
FLAT WASHER 1/2
Price
N/A
31
*DISCD*SNAP RING
Price
$2.10
32
COLUMN
Price
$29.65
33
RACK COLUMN
Price
$32.95
34
LOCK LEVER ASSY M8-1.25 X 35
Price
$4.20
34-1
*DISCD*LOCK LEVER
Price
N/A
35
LOCK LEVER M8-1.25 X 20
Price
N/A
35-1
*DISCD*LOCK LEVER
Price
$2.50
36
KNOB M8-1.25 X 56
Price
$2.60
37
SET SCREW M8-1.25 X 10
Price
N/A
38
STOP BRACKET
Price
$5.00
39
GUIDE BRACKET
Price
$19.85
40
ROTARY TABLE TOP
Price
$41.20
41
BASE BOLT M14-2 X 40
Price
$5.00
42
ACORN NUT M10-1.5
Price
N/A
43
HEX BOLT M10-1.5 X 25
Price
N/A
44
FLAT WASHER 14MM
Price
N/A
45
CAP SCREW M8-1.25 X 30
Price
N/A
46
LOCK WASHER 8MM
Price
N/A
47
TABLE
Price
$6.65
48
TABLE FLAT HD SCR M8-1.25 X 25
Price
$1.90
49
BASE
Price
$133.70
50
FENCE SPRING 2 X 27 X 80
Price
$2.10
51
COLLAR
Price
$3.35
52
*DISCD*ROD
Item is no longer available
Price
N/A
52A
ROD 7-1/2"
Price
$4.20
52B
ROD 5-1/2"
Price
$6.70
52C
ROD 3-1/2"
Price
$2.60
53
CAP SCREW M8-1.25 X 20
Price
N/A
54
HOLD DOWN
Price
$7.35
55
FENCE
Price
$32.95
56
GAS SPRING 5"
Price
$16.50
56-1
GAS SPRING BALL SOCKET
Price
$1.90
57A
LOWER STANDOFF-HEX MF 1-3/8"
Price
$2.05
57B
LOWER STANDOFF-HEX MF 1-3/8"
Price
N/A
58
T HANDLE SET 3PC
Price
$20.35
58-1
T-HANDLE 4MM
Price
$5.00
58-2
T-HANDLE 6MM
Price
$6.45
58-3
T-HANDLE 8MM
Price
$7.45
58A
T-HANDLE 4MM
Price
N/A
58B
T-HANDLE 6MM
Price
N/A
58C
T-HANDLE 8MM
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
CAP SCREW M8-1.25 X 20
Price
N/A
61
DRILLING ARBOR
Price
$9.95
61A
1/2" Mortising Chisel
Price
N/A
61B
*DISCD*MORTISING CHISEL 3/8"
Item is no longer available
Price
N/A
61C
*DISCD*MORTISING CHISEL 1/4"
Price
$17.15
62A
Paddle Switch 125V/250V
Price
N/A
62A-1
PADDLE SWITCH KEY
Price
N/A
62B
PADDLE SWITCH KEY
Price
N/A
63
HEX NUT M6-1
Price
N/A
64
FENCE SUPPORT ROD
Price
$8.95
65
CLUTCH HUB
Price
$5.90
66
*DISCD*O-RING
Item is no longer available
Price
N/A
67
FLAT WASHER 10MM
Price
N/A
68
LOCK WASHER 10MM
Price
N/A
69
HAND/CHISEL WARNING
Price
$1.90
70
SAFETY GLASSES WARNING
Price
$1.90
71
DEPTH STOP WARNING
Price
$1.90
80
HANDLE STOP COLLAR
Price
N/A
81
FLAT HD SCR M6-1 X 25
Price
N/A
82
*DISCD*O-RING 32 X 3
Item is no longer available
Price
N/A
83
WOOD SCREW M3 X 12
Price
$1.90
84
*DISCD*MOTOR SWITCH BOX COVER
Price
N/A
85
*DISCD*R CAPACITOR 30M 300V
Price
N/A
86
*DISCD*MOTOR FAN V2.01.02
Price
N/A
87
*DISCD*MOTOR FAN COVER V2.01.02
Price
N/A
88
FLAT WASHER 5MM
Price
N/A
89
PHLP HD SCR M5-.8 X 8
Price
N/A
101
CARTON FOR W1671
Price
$11.65
102
STYROFOAM
Price
$26.45
103
*DISCD*HARDWARE AND SPRINGS BAG
Price
$10.45
106
W1671 BOX 2 OF 2 STAND
Price
N/A
BOX2
W1671 BOX 2 OF 2 STAND
Price
$304.45
MAN
MANUAL FOR W1671 04/07
Price
$15.65
P
MISC PART FOR W1672
Price
$0.00
