Parts for W1680 - 17" Floor Model Drill Press

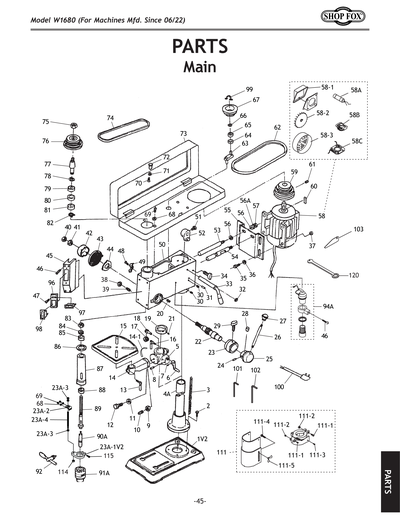

Part Diagram for W1680
Part Diagram for W1680
Part Diagram for W1680
Part Diagram for W1680
Part Diagram for W1680
Part Diagram for W1680
Part Diagram for W1680
Part Diagram for W1680

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

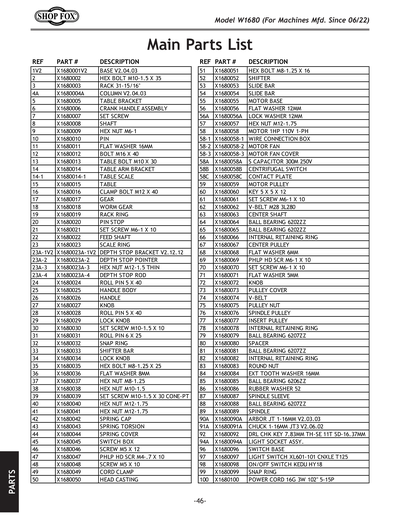

Ref #
Part #
Description
1
*DISCD*BASE V1.11.00 SEE EXT. DESCRIP
Item is no longer available
Price
N/A
1V2
BASE V2.04.03
Price
$181.90
2
HEX BOLT M10-1.5 X 35
Price
N/A
3
RACK 31 - 15/16"
Price
N/A
4
COLUMN V1.11.00
Price
$65.35
4A
COLUMN V2.04.03
Price
$171.85
5
TABLE BRACKET
Price
$56.85
6
CRANK HANDLE ASSEMBLY
Price
$5.75
7
SET SCREW
Price
$1.90
8
SHAFT
Price
$1.90
9
HEX NUT M6-1
Price
N/A
10
PIN
Price
$1.49
11
FLAT WASHER 16MM
Price
N/A
12
BOLT M16 X 40
Price
$1.90
13
TABLE BOLT M10 X 30
Price
$1.90
14
TABLE ARM BRACKET
Price
$56.85
14-1
TABLE SCALE
Price
$1.90
15
TABLE
Price
$102.90
16
CLAMP BOLT M12 X 40
Price
$5.70
17
GEAR
Price
$8.65
18
WORM GEAR
Price
$10.45
19
RACK RING
Price
N/A
20
PIN STOP
Price
$1.90
21
SET SCREW M6-1 X 10
Price
N/A
22
FEED SHAFT
Price
N/A
23
DOWNFEED LOCK RING
Price
N/A
23A-1
DEPTH STOP BRACKET V1
Price
$17.25
23A-1V2
DEPTH STOP BRACKET V2.12.12
Price
$24.15
23A-2
DEPTH STOP POINTER
Price
$1.90
23A-3
HEX NUT M12-1.5 THIN
Price
$1.90
23A-4
DEPTH STOP ROD
Price
$6.90
24
ROLL PIN 5 X 40
Price
N/A
25
HANDLE BODY
Price
$1.49
26
HANDLE
Price
$3.00
27
KNOB
Price
$3.40
28
ROLL PIN 5 X 40
Price
N/A
29
LOCK KNOB M8-1.25
Price
N/A
30
SET SCREW M10-1.5 X 10
Price
N/A
31
ROLL PIN 6 X 25
Price
N/A
32
SNAP RING
Price
$1.90
33
SHIFTER BAR
Price
$6.90
34
SLIDE BAR BOLT M10-1.5 X 25
Price
N/A
35
HEX BOLT M8-1.25 X 25
Price
N/A
36
FLAT WASHER 8MM
Price
N/A
37
HEX NUT M8-1.25
Price
N/A
38
HEX NUT M10-1.5
Price
N/A
39
SET SCREW M10-1.5 X 30 CONE-PT
Price
$1.90
40
HEX NUT M12-1.75
Price
N/A
41
HEX NUT M12-1.75
Price
N/A
42
SPRING CAP
Price
$3.75
43
SPRING TORSION
Price
$5.20
44
SPRING COVER
Price
$1.49
45
SWITCH BOX
Price
$9.95
46
SCREW M5 X 12
Price
$1.90
47
PHLP HD SCR M4-.7 X 10
Price
N/A
48
SCREW M5 X 10
Price
$1.90
49
CORD CLAMP
Price
$1.90
50
HEAD CASTING
Price
$125.10
51
HEX BOLT M8-1.25 X 16
Price
N/A
52
SHIFTER
Price
$2.30
53
SLIDE BAR
Price
N/A
54
NOTCHED SLIDE BAR
Price
N/A
55
MOTOR BASE
Price
$12.95
56
FLAT WASHER 12MM
Price
N/A
56A
LOCK WASHER 12MM
Price
N/A
57
HEX NUT M12-1.75
Price
N/A
58
MOTOR 1HP 110V 1-PH
Price
$263.10
58-1
WIRE CONNECTION BOX
Price
$15.50
58-2
MOTOR FAN
Price
$4.70
58-3
MOTOR FAN COVER
Price
$8.35
58A
S CAPACITOR 300M 250V
Price
$29.90
58B
CENTRIFUGAL SWITCH
Price
$15.15
58C
CONTACT PLATE
Price
$3.25
58D
MOTOR TERMINAL BOX
Price
$4.70
59
MOTOR PULLEY
Price
$13.45
60
KEY 5 X 5 X 12
Price
N/A
61
SET SCREW M6-1 X 10
Price
N/A
62
V-BELT M25.5 3L255
Price
N/A
63
CENTER SHAFT
Item is no longer available
Price
N/A
64
BALL BEARING 6202ZZ
Price
N/A
65
BALL BEARING 6202ZZ
Price
N/A
66
INTERNAL RETAINING RING
Price
$1.90
67
CENTER PULLEY
Price
$17.25
68
FLAT WASHER 6MM
Price
N/A
69
PHLP HD SCR M6-1 X 10
Price
N/A
70
SET SCREW M6-1 X 10
Price
N/A
71
FLAT WASHER 5MM
Price
N/A
72
KNOB
Price
$1.49
73
PULLEY COVER
Price
$48.60
74
V-BELT M27.5 3L275
Price
N/A
75
PULLEY NUT
Price
$1.49
76
SPINDLE PULLEY
Price
$40.55
77
INSERT PULLEY
Price
$14.70
78
INTERNAL RETAINING RING
Price
$1.90
79
BALL BEARING 6207ZZ
Price
N/A
80
SPACER
Price
$1.90
81
BALL BEARING 6207ZZ
Price
N/A
82
INTERNAL RETAINING RING
Price
$1.90
83
ROUND NUT
Price
$1.49
84
EXT TOOTH WASHER 16MM
Price
N/A
85
BALL BEARING 6206ZZ
Price
N/A
86
RUBBER WASHER 52
Price
$1.90
87
SPINDLE SLEEVE
Price
$21.85
88
BALL BEARING 6207ZZ
Price
N/A
89
SPINDLE
Price
$40.95
90
ARBOR B16/MT3 WITH TANG V1.11.00
Price
$18.70
90A
ARBOR JT3 1-16MM V2.03.03
Price
$12.95
91
CHUCK 3-16MM BIG V1.11.00
Price
$42.10
91A
CHUCK 1-16MM JT3 V2.06.02
Price
$30.80
92
DRL CHK KEY 7.83MM TH-SE 11T SD-16.37MM
Price
$2.90
93
LIGHT SOCKET ASSY.
Price
N/A
93A
LIGHT SOCKET ASSY.
Price
N/A
94
LIGHT SOCKET ASSY.
Price
N/A
94A
LIGHT SOCKET ASSY.
Price
$11.95
95
LIGHT SOCKET ASSY.
Price
N/A
96
SWITCH BASE
Price
$7.45
97
LIGHT SWITCH XL601-101 CNXLE T125
Price
$1.49
98
Paddle Switch 125V/250V
Price
N/A
99
SNAP RING
Price
$1.90
100
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A

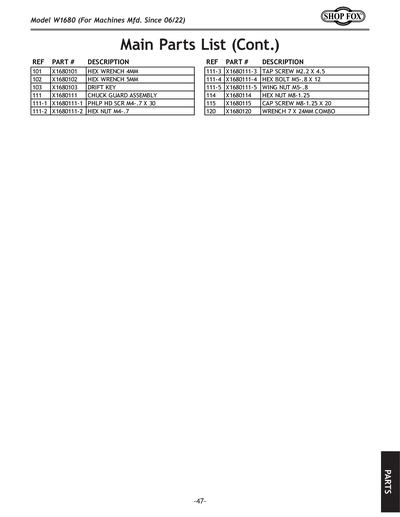

101
HEX WRENCH 4MM
Price
N/A
102
HEX WRENCH 5MM
Price
N/A
103
DRIFT KEY
Price
$3.75

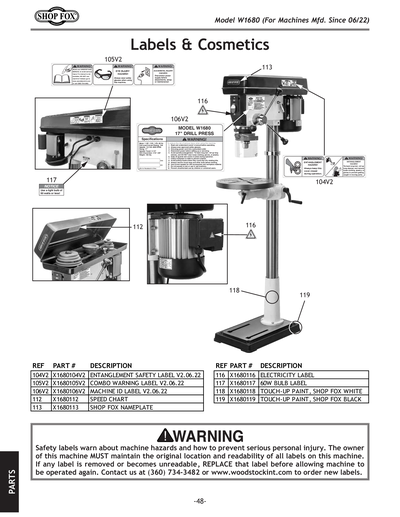

104
LONG HAIR SAFETY LABEL V1
Price
$1.00
104V2
CLOSE DOOR LABEL V2.06.22
Price
N/A
105
GLASSES SAFETY LABEL V1
Price
$1.00
105V2
COMBO WARNING LABEL V3.04.24
Price
N/A
106
MACHINE ID LABEL V1
Price
$16.40
106V2
MACHINE ID LABEL V2.06.22
Price
$16.40
107
MACHINE PLACK
Price
$9.75
108
CARTON FOR W1680
Price
$29.50
109
STYROFOAM
Price
$70.85
110
HARDWARE BAG W/CHUCK KEY
Price
$44.25
111
Chuck Guard for 17" Floor Model Drill Press
Price
N/A
111-1
PHLP HD SCR M4-.7 X 30
Price
N/A
111-2
HEX NUT M4-.7
Price
N/A
111-3
TAP SCREW M2.2 X 4.5
Price
N/A
111-4
HEX BOLT M5-.8 X 12
Price
N/A
111-5
WING NUT M5-.8
Price
N/A
112
SPEED CHART
Price
$1.90
113
SHOP FOX LABEL
Price
N/A
114
HEX NUT M8-1.25
Price
N/A
115
CAP SCREW M8-1.25 X 20
Price
N/A
116
ELECTRICITY 0.7W X 0.6H
Price
N/A
117
60W BULB LABEL
Price
$1.00
118
SHOP FOX WHITE M1006
Price
N/A
119
GLOSSY BLACK
Price
N/A
120
WRENCH 7 X 24MM COMBO
Price
$4.35
MAN
MANUAL W1680 MFD-01.01-05.22 V1.01.00
Price
$15.55
MANV2
MANUAL W1680 MFD-06.22+ V2.09.22
Price
$14.65
