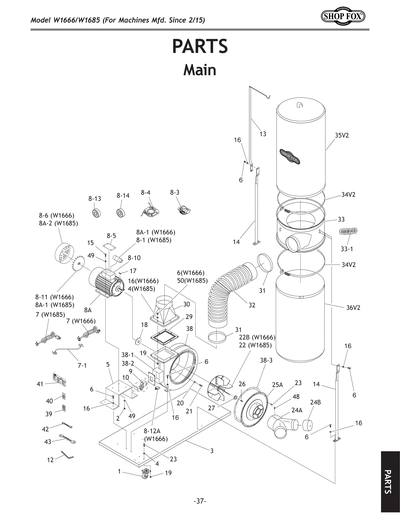

Parts for W1685 - 1-1/2 HP Dust Collector
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

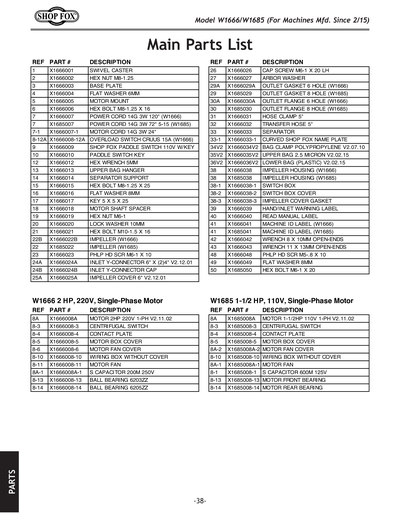

| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 |
X1685001
Replaced By PX1666001
|
SWIVEL CASTER
|
N/A | View Replacement | |
| 2 |
X1685002
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| 3 |
X1685003
Replaced By PX1666003
|
BASE PLATE
|
N/A | View Replacement | |
| 4 |
X1685004
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 5 |
X1685005
Replaced By PX1666005
|
MOTOR MOUNT
|
N/A | View Replacement | |
| 6 |
X1685006
Replaced By PB08M
|
HEX BOLT M6-1 X 20
|
N/A | View Replacement | |
| 7 | X1685007 | POWER CORD 14G X 3W 72" | $8.25 | ||
| 7A |
X1685007A
Replaced By PX1666007-1
|
MOTOR CORD 14G X 3W 24"
|
N/A | View Replacement | |
| 8 | X1685008 | MOTOR 1-1/2HP V1.06.02 | $207.15 | ||
| 8-1 |
X1685008-1
Replaced By PC600
|
S CAPACITOR 600M 125V 1-3/4 X 3-1/2
|
N/A | View Replacement | |
| 8-10 |
X1685008-10
Replaced By PX1666008-10
|
WIRING BOX WITHOUT COVER
|
N/A | View Replacement | |
| 8-12A |
X1685008-12A
Replaced By PX1666008-12A
|
OVERLOAD SWITCH CRUSS 18A
|
N/A | View Replacement | |
| 8-13 |
X1685008-13
Replaced By P6205ZZ
|
BALL BEARING 6205ZZ
|
N/A | View Replacement | |
| 8-14 |
X1685008-14
Replaced By P6204ZZ
|
BALL BEARING 6204ZZ
|
N/A | View Replacement | |
| 8-3 |
X1685008-3
Replaced By PX1666008-3
|
*DISCD*CENTRIFUGAL SWITCH
|
N/A | View Replacement | |
| 8-4 |
X1685008-4
Replaced By PX1666008-4
|
CONTACT PLATE
|
N/A | View Replacement | |
| 8-5 |
X1685008-5
Replaced By PX1666008-5
|
MOTOR BOX COVER
|
N/A | View Replacement | |
| 8A | X1685008A | MOTOR 1-1/2HP 110V 1-PH V2.11.02 | $288.25 | ||
| 8A-1 | X1685008A-1 | MOTOR FAN | $6.55 | ||
| 8A-2 | X1685008A-2 | MOTOR FAN COVER | $13.95 | ||
| 9 |
X1685009
Replaced By D2751
|
Paddle Switch 125V/250V
|
N/A | View Replacement | |
| 10 |
X1685010
Replaced By PSW09-1
|
PADDLE SWITCH KEY
|
N/A | View Replacement | |
| 11 |
X1685011
Replaced By PAW04M
|
HEX WRENCH 4MM
|
N/A | View Replacement | |
| 12 |
X1685012
Replaced By PAW05M
|
HEX WRENCH 5MM
|
N/A | View Replacement | |
| 13 |
X1685013
Replaced By PX1666013
|
UPPER BAG HANGER
|
N/A | View Replacement | |
| 14 |
X1685014
Replaced By PX1666014
|
SEPARATOR SUPPORT
|
N/A | View Replacement | |
| 15 |
X1685015
Replaced By PB07M
|
HEX BOLT M8-1.25 X 25
|
N/A | View Replacement | |
| 16 |
X1685016
Replaced By PW03M
|
FLAT WASHER 6MM
|
N/A | View Replacement | |
| 17 |
X1685017
Replaced By PK23M
|
KEY 5 X 5 X 25
|
N/A | View Replacement | |
| 18 |
X1685018
Replaced By PX1666018
|
MOTOR SHAFT SPACER
|
N/A | View Replacement | |
| 19 |
X1685019
Replaced By PN01M
|
HEX NUT M6-1
|
N/A | View Replacement | |
| 20 |
X1685020
Replaced By PLW06M
|
LOCK WASHER 10MM
|
N/A | View Replacement | |
| 21 |
X1685021
Replaced By PB70M
|
HEX BOLT M10-1.5 X 16
|
N/A | View Replacement | |
| 22 | X1685022 | IMPELLER | $56.05 | ||
| 23 |
X1685023
Replaced By PS68M
|
PHLP HD SCR M6-1 X 10
|
N/A | View Replacement | |
| 24 |
X1685024
Replaced By PX1666024
|
INLET 5 X 4 X 4 V1
|
N/A | View Replacement | |
| 24A |
X1685024A
Replaced By PX1666024A
|
INLET Y-CONNECTOR 6" X (2) 4" V2.12.01
|
N/A | View Replacement | |
| 25 |
X1685025
Replaced By PX1666025
|
IMPELLER COVER 5" V1
|
N/A | View Replacement | |
| 26 |
X1685026
Replaced By PCAP121M
|
CAP SCREW M6-1 X 20 LH
|
N/A | View Replacement | |
| 27 |
X1685027
Replaced By PX1666027
|
ARBOR WASHER (METAL)
|
N/A | View Replacement | |
| 28 |
X1685028
Replaced By PSS16M
|
SET SCREW M8-1.25 X 10
|
N/A | View Replacement | |
| 29 |
X1685029
Replaced By PX1666029
|
OUTLET GASKET 8 HOLE V1
|
N/A | View Replacement | |
| 29A |
X1685029A
Replaced By PX1666029A
|
OUTLET GASKET 6 HOLE V2.01.2
|
N/A | View Replacement | |
| 30 | X1685030 | OUTLET FLANGE 6 HOLE | $21.10 | ||
| 31 |
X1685031
Replaced By PX1666031
|
HOSE CLAMP 5"
|
N/A | View Replacement | |
| 32 |
X1685032
Replaced By PX1666032
|
TRANSFER HOSE 5"
|
N/A | View Replacement | |
| 33 |
X1685033
Replaced By PX1666033
|
SEPARATOR
|
N/A | View Replacement | |
| 33-1 |
X1685033-1
Replaced By PX1666033-1
|
CURVED SHOP FOX NAME PLATE
|
N/A | View Replacement | |
| 34 |
X1685034
Replaced By PX1666034V2
|
BAG CLAMP POLYPROPYLENE V2.07.10
|
N/A | View Replacement | |
| 34V2 |
X1685034V2
Replaced By PX1666034V2
|
BAG CLAMP POLYPROPYLENE V2.07.10
|
N/A | View Replacement | |
| 35 |
X1685035
Replaced By D1795
|
Dust Collection Bag-Shop Fox® Logo
|
N/A | View Replacement | |
| 36 |
X1685036
Replaced By D1796
|
Lower Bag for W1666
|
N/A | View Replacement | |
| 38 | X1685038 | IMPELLER HOUSING | $47.90 | ||
| 38-1 |
X1685038-1
Replaced By PX1666038-1
|
SWITCH BOX
|
N/A | View Replacement | |
| 38-2 |
X1685038-2
Replaced By PX1666038-2
|
SWITCH BOX COVER
|
N/A | View Replacement | |
| 38-3 |
X1685038-3
Replaced By PX1666038-3
|
IMPELLER COVER GASKET
|
N/A | View Replacement | |
| 39 |
X1685039
Replaced By PX1666039
|
HAND/INLET WARNING LABEL
|
N/A | View Replacement | |
| 40 |
X1685040
Replaced By PLABEL-12A
|
READ MANUAL 2W X 3.3H V2.07.05
|
N/A | View Replacement | |
| 41 | X1685041 | MACHINE ID LABEL | $13.60 | ||
| 42 |
X1685042
Replaced By PWR810
|
WRENCH 8 X 10MM OPEN-ENDS
|
N/A | View Replacement | |
| 43 |
X1685043
Replaced By PWR1113
|
WRENCH 11 X 13MM OPEN-ENDS
|
N/A | View Replacement | |
| 45 | X1685045 | CARTON FOR W1685 | $18.50 | ||
| 48 |
X1685048
Replaced By PS09M
|
PHLP HD SCR M5-.8 X 10
|
N/A | View Replacement | |
| 49 |
X1685049
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 50 |
X1685050
Replaced By PB08M
|
HEX BOLT M6-1 X 20
|
N/A | View Replacement | |
| MAN | X1685MAN | MANUAL FOR W1685 01/06 | $17.00 | ||
| MANV2 |
X1685MANV2
Replaced By PX1666MANV3
|
MAN FOR W1666 MFG 10/02-01/15 V3.06.13
|
N/A | View Replacement | |
| MANV4 |
X1685MANV4
Replaced By PX1666MANV4
|
MANUAL FOR W1666 MFD 02/15+ V4.04.15
|
N/A | View Replacement |
