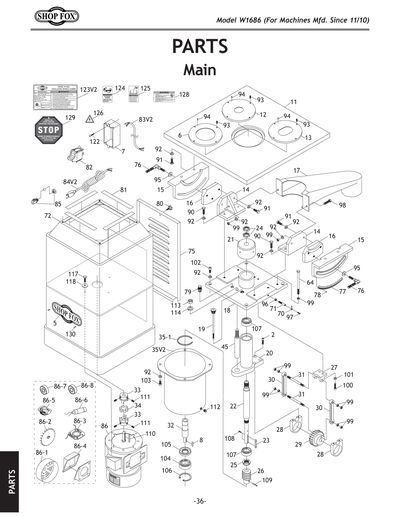

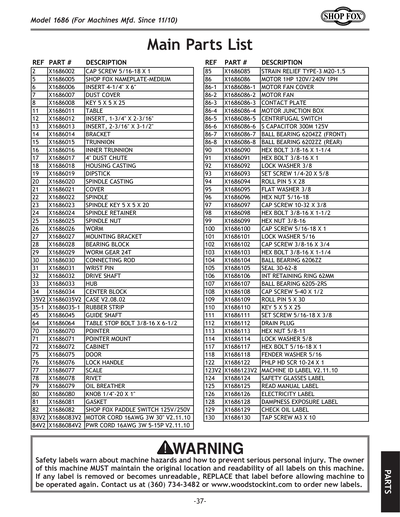

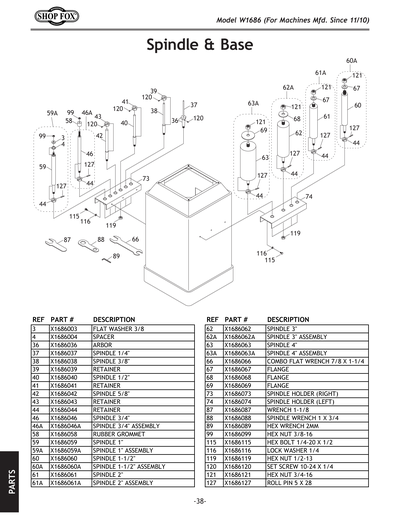

Parts for W1686 1 HP Oscillating Spindle Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PN07
HEX NUT 10-24
Price
N/A
2
CAP SCREW 5/16-18 X 1
Price
N/A
3
Now: PW02
FLAT WASHER 3/8
Price
N/A
4
SPACER
5
Now: D3376
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
6
INSERT 4-1/4" X 6"
7
DUST COVER
8
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
9
PHLP HD SCR 3/16-24 X 5/8
11
TABLE
12
INSERT 1-3/4" X 2-3/16"
13
INSERT 2-3/16" X 3-1/2"
14
BRACKET
15
TRUNNION
16
INNER TRUNNION
17
DUST HOOD
18
HOUSING CASTING
19
DIPSTICK
20
SPINDLE CASTING
21
COVER
22
SPINDLE
23
SPINDLE KEY 5 X 5 X 50MM
24
SPINDLE RETAINER
25
SPINDLE NUT
26
WORM
Price
N/A
27
MOUNTING BRACKET
Price
N/A
28
BEARING BLOCK
29
WORM GEAR 24T
30
CONNECTING ROD
31
WRIST PIN
Price
N/A
32
DRIVE SHAFT
33
HUB
Price
N/A
34
CENTER BLOCK
35
CASE
35-1
RUBBER STRIP
35V2
CASE
Price
N/A
36
ARBOR
Price
N/A
37
SPINDLE 1/4"
38
SPINDLE 3/8"
Price
N/A
39
RETAINER
Price
N/A
40
SPINDLE 1/2"
41
RETAINER
Price
N/A
42
SPINDLE 5/8"
43
RETAINER
44
RETAINER
Price
N/A
45
GUIDE SHAFT
46
SPINDLE 3/4"
46A
SPINDLE 3/4" ASSEMBLY
58
RUBBER GROMMET
59
SPINDLE 1"
59A
SPINDLE 1" ASSEMBLY
60
SPINDLE 1 1/2"
60A
SPINDLE 1-1/2" ASSEMBLY
61
SPINDLE 2"
Price
N/A
61A
SPINDLE 2"
Price
N/A
62
SPINDLE 3"
62A
SPINDLE 3"
Price
N/A
63
SPINDLE 4"
Price
N/A
63A
SPINDLE 4" ASSEMBLY
64
HEX BOLT 3/8-16 X 6-1/2
65
GREASE FITTING
66
COMBO FLAT WRENCH 7/8 X 1-1/4
67
FLANGE
68
FLANGE
69
FLANGE
70
POINTER
71
POINTER MOUNT
72
CABINET
73
SPINDLE HOLDER (RIGHT)
74
SPINDLE HOLDER (LEFT)
75
DOOR
76
LOCK HANDLE
77
SCALE
78
RIVET
79
OIL BREATHER
79A
WRENCH 32 X 22
80
KNOB 1/4"-20 X 1"
80A
FLAT WASHER 1/4 X 13 X 1
81
GASKET
82
Now: D2751
Paddle Switch 125V/250V
Price
N/A
83
SWITCH-MOTOR CORD V1
83V2
MOTOR CORD 16AWG 3C 30" V2.11.10
84
POWER CORD V1
84V2
POWER CORD 16AWG 3C 12FT 5-15 V2.11.10
Price
N/A
85
STRAIN RELIEF TYPE-3 M20-1.5
86
MOTOR 1HP 120V/240V 1 PH
86-1
MOTOR FAN COVER
86-2
MOTOR FAN
86-3
CONTACT PLATE
86-4
MOTOR JUNCTION BOX
86-5
CENTRIFUGAL SWITCH
86-6
S CAPACITOR 300M 125V
86-7
BALL BEARING 6204ZZ
Price
N/A
86-8
BALL BEARING 6202ZZ
Price
N/A
87
WRENCH 1-1/8
88
SPINDLE WRENCH 1 X 3/4
89
HEX WRENCH 2MM
Price
N/A
90
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
91
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
92
Now: PLW04
LOCK WASHER 3/8
Price
N/A
93
Now: PSS10
SET SCREW 1/4-20 X 5/8
Price
N/A
94
ROLL PIN 5 X 28
Price
N/A
95
Now: PW02
FLAT WASHER 3/8
Price
N/A
96
Now: PN02
HEX NUT 5/16-18
Price
N/A
97
CAP SCREW 10-32 X 3/8
Price
N/A
98
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
99
Now: PN08
HEX NUT 3/8-16
Price
N/A
100
CAP SCREW 5/16-18 X 1
Price
N/A
101
Now: PLW01
LOCK WASHER 5/16
Price
N/A
102
CAP SCREW 3/8-16 X 3/4
Price
N/A
103
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
104
BALL BEARING 6206ZZ
Price
N/A
105
SEAL 30-62-8
106
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
107
***SEE EXT. DESCRIPTION***
Price
N/A
108
CAP SCREW 5-40 X 1/2
Price
N/A
109
ROLL PIN 5 X 30
Price
N/A
110
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
111
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
112
DRAIN PLUG
113
Now: PN04
HEX NUT 5/8-11
Price
N/A
114
Now: PLW06
LOCK WASHER 5/8
Price
N/A
115
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
116
Now: PLW02
LOCK WASHER 1/4
Price
N/A
117
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
118
Now: PWF01
FENDER WASHER 5/16
Price
N/A
119
Now: PN13
HEX NUT 1/2-13
Price
N/A
120
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
121
Now: PN03
HEX NUT 3/4-16
Price
N/A
122
Now: PS03
PHLP HD SCR 10-24 X 1
Price
N/A
123
MACHINE ID LABEL V1
123V2
MACHINE ID LABEL V2.11.10
124
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
125
READ MANUAL LABEL
126
ELECTRICITY 1.4W X 1.2H
Price
N/A
127
ROLL PIN 5 X 28
Price
N/A
128
DAMPNESS EXPOSURE LABEL
129
STOP OIL FILL TAG 4W X 4H
Price
N/A
130
TAP SCREW M3 X 10
Price
N/A
200
CARTON FOR W1686
201
STYROFOAM FOR W1686
MANUAL
MANUAL W1686 MFD-06.02-05.08 V1.08.02
MANV2
MANUAL W1686 MFD-06.08 V2.07.18
PXP1686104
BALL BEARING 6206ZZ
Price
N/A
