Parts for W1702 3 HP Shaper

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

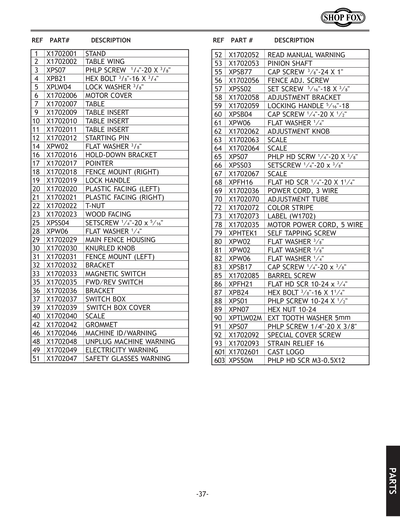

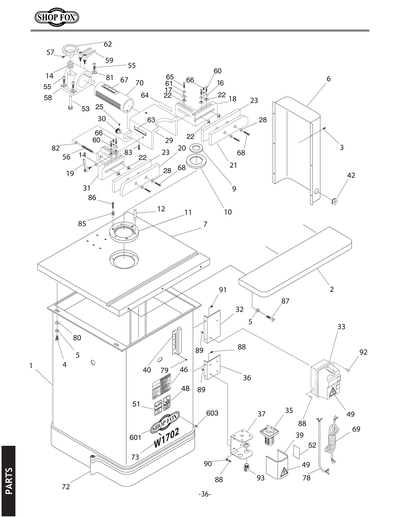

1
STAND
2
EXTENSION WING
Price
N/A
3
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
4
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
5
Now: PLW04
LOCK WASHER 3/8
Price
N/A
6
MOTOR COVER V1.04.03
6V2
STAND SIDE COVER V2.01.06
Price
N/A
7
TABLE
9
TABLE INSERT 1-1/2" ID
Price
N/A
10
TABLE INSERT 2-15/16" ID
Price
N/A
11
TABLE INSERT RING 4-1/4" ID
Price
N/A
12
STARTING PIN
14
Now: PW02
FLAT WASHER 3/8
Price
N/A
16
HOLD DOWN BRACKET
17
POINTER
Price
N/A
18
RIGHT FENCE MOUNT
19
LOCK HANDLE
20
LEFT PLASTIC FACING
20-1
LEFT PLASTIC FACING
Price
N/A
20-2
RIGHT PLASTIC FACING
Price
N/A
20A
LEFT PLASTIC FACING
Price
N/A
20B
RIGHT PLASTIC FACING
Price
N/A
21
RIGHT PLASTIC FACING
22
T-SLOT NUT 1/4-20
Price
N/A
23
WOOD FACING
25
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
28
Now: PW06
FLAT WASHER 1/4
Price
N/A
29
MAIN FENCE HOUSING
29-1
FENCE FACINGS W/HARDWARE BAG
30
KNURLED KNOB 8MM D32
Price
N/A
31
FENCE MOUNT LEFT
Price
N/A
32
MAGNETIC SWITCH MOUNT BRACKET
Price
N/A
33
MAGNETIC SWITCH
33V2
MAGNETIC SWITCH V2.09.10
33V2-1
CONTACTOR SDE MP-09
33V2-2
RELAY RA-20 12-18A
35
FWD/REV SWITCH V1.04.03
35V2
*DISCD*FWD/REV SWITCH V2.08.10
Item is no longer available
Price
N/A
35V3
FWD/REV SWITCH V3.09.10
36
SWITCH MOUNT BRACKET
Price
N/A
37
SWITCH BOX
Price
N/A
39
*DISCD*U SWITCH BOX COVER 4" V1.10.95
Price
N/A
40
SPINDLE HEIGHT SCALE
Price
N/A
42
GROMMET
46
MACHINE ID/WARNING V1.04.03
46V2
MACHINE ID/WARNING CSA V2.08.10
48
DISCONNECT 220V 2W X 3.3H
Price
N/A
49
ELECTRICITY 1.4W X 1.2H
Price
N/A
51
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
52
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
53
PINION SHAFT
55
CAP SCREW 3/8-24 X 1
Price
N/A
56
FENCE ADJ SCREW 1/2-13 X 4-1/4 V2.12.95
Price
N/A
57
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
58
ADJUSTMENT BRACKET
59
LOCK HANDLE
Price
N/A
60
CAP SCREW 1/4-20 X 1/2
Price
N/A
61
Now: PW06
FLAT WASHER 1/4
Price
N/A
62
ADJUSTMENT KNOB
63
FENCE HOUSING SCALE RIGHT
Price
N/A
64
FENCE HOUSING SCALE LEFT
Price
N/A
65
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
66
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
67
SCALE
68
Now: PFH16
FLAT HD SCR 1/4-20 X 1-1/4
Price
N/A
69
POWER CORD V1.04.03
69V2
MOTOR CORD 14G 3C 6-15 V2.08.10
70
FENCE RAM
Price
N/A
72
COLOR STRIPE
73
MODEL NUMBER LABEL
78
MOTOR CORD 5 WIRE V1.04.03
78V2
MOTOR CORD 14G 4C V2.08.10
79
TAP SCREW #6 X 1/2
Price
N/A
80
Now: PW02
FLAT WASHER 3/8
Price
N/A
81
Now: PW02
FLAT WASHER 3/8
Price
N/A
82
Now: PW06
FLAT WASHER 1/4
Price
N/A
83
CAP SCREW 1/4-20 X 3/8
Price
N/A
85
BARREL SCREW 7/16-14 X 1/2
Price
N/A
86
Now: PFH21
FLAT HD SCR 10-24 X 3/4
Price
N/A
87
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
88
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
89
Now: PN07
HEX NUT 10-24
Price
N/A
90
EXT TOOTH WASHER 5MM
Price
N/A
91
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
92
MAGNETIC SWITCH COVER SCREW
93
STRAIN RELIEF TYPE-3 M16
Price
N/A
94
STEEL PLATE
Price
N/A
95
REAR STAND PANEL
Price
N/A
96
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
97
SWITCH PADLOCK

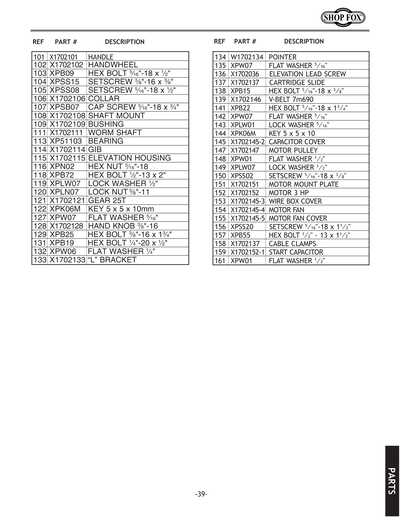

101
HANDWHEEL HANDLE V2.01.06
Price
N/A
102
HANDWHEEL V2.01.06
Price
N/A
103
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
104
Now: PSS15
SET SCREW 3/8-16 X 3/8
Price
N/A
105
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
106
LOCK COLLAR
Price
N/A
107
CAP SCREW 5/16-18 X 3/4
Price
N/A
108
SHAFT MOUNT
Price
N/A
109
BUSHING 24 X 19 X 24
Price
N/A
111
WORM SHAFT
Price
N/A
113
THRUST BEARING 51103
Price
N/A
114
GIB
Price
N/A
115
ELEVATION HOUSING GREEN V2.10.98
Price
N/A

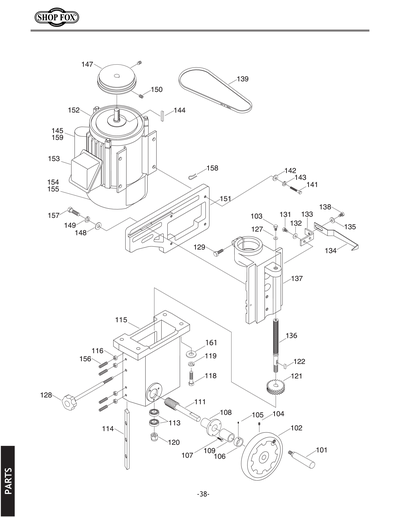

116
Now: PN02
HEX NUT 5/16-18
Price
N/A
118
Now: PB72
HEX BOLT 1/2-13 X 2
Price
N/A
119
Now: PLW07
LOCK WASHER 1/2
Price
N/A
120
Now: PLN07
LOCK NUT 5/8-11
Price
N/A
121
ELEVATION BEVEL GEAR
Price
N/A
122
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
127
Now: PW07
FLAT WASHER 5/16
Price
N/A
128
LOCK KNOB BOLT
Price
N/A
129
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
131
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
132
Now: PW06
FLAT WASHER 1/4
Price
N/A
133
POINTER MOUNT
Price
N/A
134
POINTER V2.02.98
Price
N/A
135
Now: PW07
FLAT WASHER 5/16
Price
N/A
136
ELEVATION LEADSCREW 3/4 X 7-1/2
Price
N/A
137
SPINDLE BRACKET
Price
N/A
138
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
139
V-BELT 7 X 690
Price
N/A
141
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
142
Now: PW07
FLAT WASHER 5/16
Price
N/A
143
Now: PLW01
LOCK WASHER 5/16
Price
N/A
144
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
145-2
CAPACITOR COVER
Price
N/A
145-3
MOTOR JUNCTION BOX
Price
N/A
145-4
*DISCD*MOTOR FAN
Price
N/A
145-5
MOTOR FAN COVER
Price
N/A
146
V-BELT 7 X 690
Price
N/A
147
MOTOR PULLEY
Price
N/A
148
Now: PW01
FLAT WASHER 1/2
Price
N/A
149
Now: PLW07
LOCK WASHER 1/2
Price
N/A
151
MOTOR MOUNT PLATE
Price
N/A
152
MOTOR 3HP 220V 1-PH
Price
N/A
152-1
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
157
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
158
CABLE CLAMPS
161
Now: PW01
FLAT WASHER 1/2
Price
N/A
202
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A

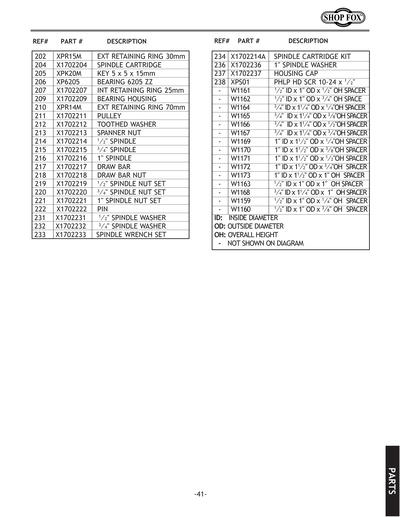

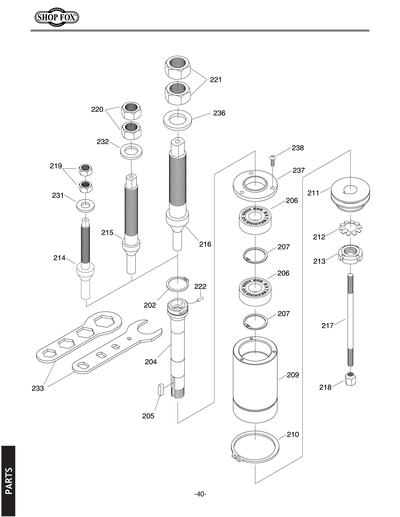

204
SPINDLE CARTRIDGE
Price
N/A
204-1
COMPLETE CARTRIDGE SPINDLE ASSY
205
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
206
BALL BEARING 6205ZZ
Price
N/A
207
Now: PR66M
INT RETAINING RING 25MM
Price
N/A
209
SPINDLE HOUSING
Price
N/A
210
Now: PR14M
EXT RETAINING RING 70MM
Price
N/A
211
SPINDLE PULLEY
Price
N/A
212
EXT TOOTH WASHER 3/4 ZINC
Price
N/A
213
SPANNER NUT 3/4-10
Price
N/A
214
SPINDLE 1/2"
Price
N/A
214A
*DISCD*SPINDLE CARTRIDGE KIT
Item is no longer available
Price
N/A
215
SPINDLE 3/4"
Price
N/A
216
SPINDLE 1"
Price
N/A
217
DRAWBAR 3/8-24 X 7-3/4
Price
N/A
218
DRAWBAR NUT 3/8-24
Price
N/A
219
SPINDLE NUT 1/2" 2PC SET
Price
N/A
220
SPINDLE NUT 3/4" 2PC SET
Price
N/A
221
SPINDLE NUT 1"-8 2PC SET
Price
N/A
222
PIN
Price
N/A
231
SPINDLE WASHER 1/2"
Price
N/A
232
SPINDLE WASHER 3/4"
Price
N/A
233
SPINDLE WRENCH SET
Price
N/A
236
SPINDLE WASHER 1 X 38 X 3
Price
N/A
237
QUILL FLANGE
Price
N/A
238
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A

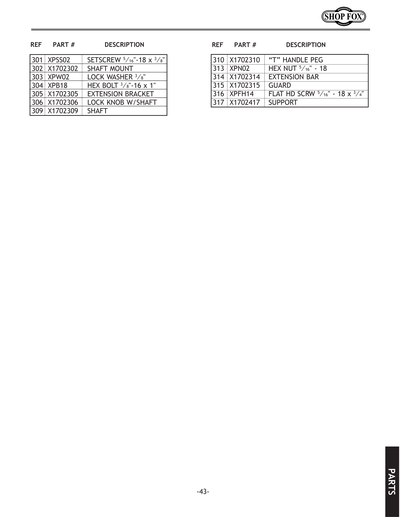

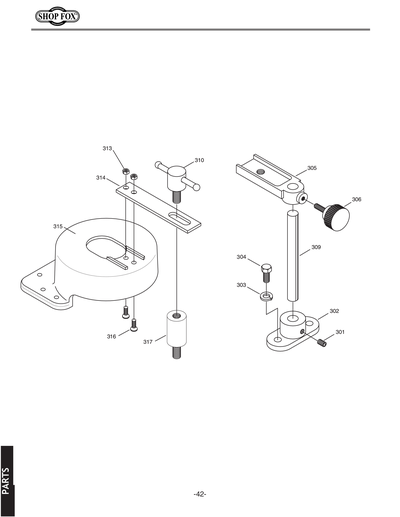

301
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
302
SHAFT MOUNT
Price
N/A
303
Now: PLW04
LOCK WASHER 3/8
Price
N/A
304
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
305
EXTENSION BRACKET
Price
N/A
306
LOCK KNOB SHAFT ASSY
Price
N/A
309
SHAFT
Price
N/A
310
HANDLE PEG W/ SHAFT
Price
N/A
313
Now: PN02
HEX NUT 5/16-18
Price
N/A
314
EXTENSION BAR
315
SAFETY GUARD V1
Price
N/A
315V2
OVERHEAD SAFETY GUARD V2.08.10
316
Now: PFH12
FLAT HD SCR 1/4-20 X 1
Price
N/A
316V2
Now: PFH05
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
317
Now: PW06
FLAT WASHER 1/4
Price
N/A
318
KNOB BOLT 1/4-20 X 3/8
Price
N/A
319
TOP SAFETY GUARD (PLASTIC)
Price
N/A
320
FRONT SAFETY GUARD
321
THREADED SUPPORT
Price
N/A

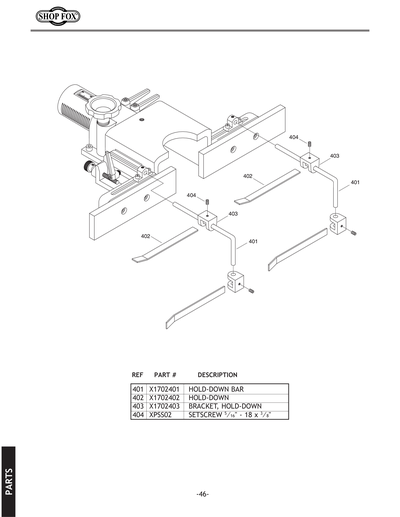

401
HOLD-DOWN BAR
Price
N/A
402
HOLD DOWN
Price
N/A
403
HOLD-DOWN BRACKET
Price
N/A
404
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
417
THREADED SUPPORT
Price
N/A
601
Now: D3377
Nameplate - Large
Price
N/A
601A
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A

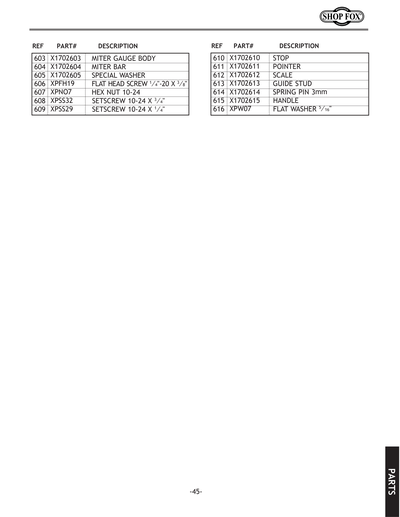

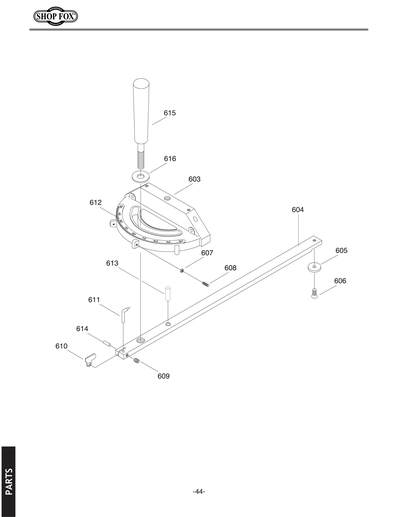

602
MACHINE ID/ WARNING
603
MITER GAUGE BODY
603-1
MITER GAUGE ASSY
604
MITER BAR
605
MITER BAR WASHER
606
Now: PFH19
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
607
Now: PN07
HEX NUT 10-24
Price
N/A
608
Now: PSS32
SET SCREW 10-24 X 3/4
Price
N/A
609
Now: PSS29
SET SCREW 10-24 X 1/4
Price
N/A
610
STOP
611
POINTER
612
MITER GAUGE SCALE
Price
N/A
613
*DISCD*GUIDE STUD
614
ROLL PIN 3 X 6
Price
N/A
615
HANDLE
Price
N/A
616
Now: PW07
FLAT WASHER 5/16
Price
N/A
700
COMPLETE HARDWARE BOX
700-1
HARDWARE BAG V1
700-1V2
HARDWARE BAG V2.08.10
700-2
SPACER BAG 8
700-3
SPACER BAG 10
701
CARTON FOR W1702
702
*DISCD*STYROFOAM 2PC V1
Item is no longer available
Price
N/A
702V2
STYROFOAM 1PC V2.12.10
703
COMPLETE FENCE ASSY
MAN
MANUAL FOR W1702 08/03
MANUAL
MANUAL FOR W1702 08/03
MITER
MITER GAUGE ASSY
