Parts for W1704 - 8" x 13" Benchtop Wood Lathe

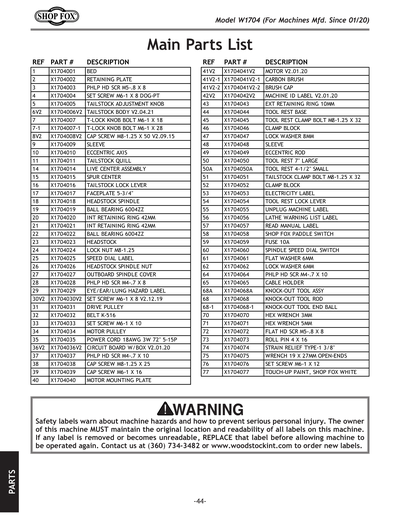

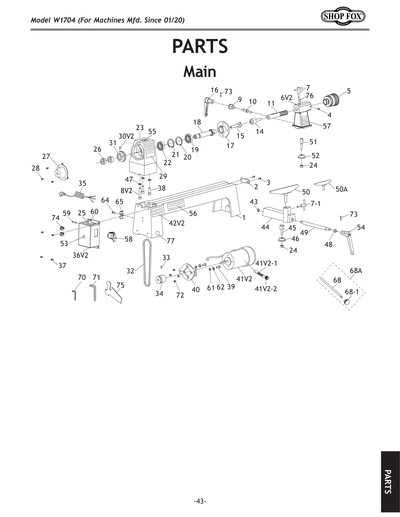

Part Diagram for W1704
Part Diagram for W1704
Part Diagram for W1704
Part Diagram for W1704

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BED
Price
$166.25
2
RETAINING PLATE
Price
N/A
3
PHLP HD SCR M5-.8 X 8
Price
N/A
4
SET SCREW M6-1 X 8 DOG-PT
Price
N/A
5
TAILSTOCK ADJUSTMENT KNOB
Price
$19.55
6
*DISCD*TAILSTOCK BODY
Item is no longer available
Price
N/A
6V2
TAILSTOCK BODY V2.04.21
Price
$47.75
7
T-LOCK KNOB BOLT M6-1 X 18
Price
$9.50
7-1
T-LOCK KNOB BOLT M6-1 X 28
Price
$1.90
8
CAP SCREW M8-1.25 X 60
Price
N/A
8V2
CAP SCREW M8-1.25 X 50
Price
N/A
9
LEVER BUSHING
Price
N/A
10
ECCENTRIC AXIS
Price
$4.05
11
TAILSTOCK QUILL
Price
$21.85
12
TAPER ROD
Price
$8.35
13
BEARING BALL 1080900
Price
$5.45
14
LIVE CENTER ASSEMBLY
Price
$10.95
14-1
*DISCD*LIVE CENTER POINT
Item is no longer available
Price
N/A
15
SPUR CENTER
Price
$10.95
16
TAILSTOCK LOCK HANDLE
Price
$4.85
17
FACEPLATE 5-3/4"
Price
$14.40
18
HEADSTOCK SPINDLE
Price
$23.10
19
BALL BEARING 6004ZZ
Price
N/A
20
INT RETAINING RING 42MM
Price
N/A
21
INT RETAINING RING 42MM
Price
N/A
22
BALL BEARING 6004ZZ
Price
N/A
23
HEADSTOCK
Price
$24.85
24
LOCK NUT M8-1.25
Price
N/A
25
SPEED DIAL LABEL
Price
$1.25
26
HEADSTOCK SPINDLE NUT
Price
$2.90
27
OUTBOARD SPINDLE COVER
Price
$1.90
28
PHLP HD SCR M4-.7 X 8
Price
N/A
29
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
30
SET SCREW M6-1 X 10
Price
N/A
30V2
SET SCREW M6-1 X 8
Price
N/A
31
DRIVE PULLEY
Price
$6.35
32
BELT K-516
Price
$4.50
33
SET SCREW M6-1 X 10
Price
N/A
34
MOTOR PULLEY
Price
$8.35
35
POWER CORD18AWG 3W 72" 5-15P
Price
$5.75
36
*DISCD*CIRCUIT BOARD W/BOX V1
Item is no longer available
Price
N/A
36-1
*DISCD*CIRCUIT BOARD ONLY
Item is no longer available
Price
N/A
36-2
*DISCD*CIRCUIT BOX ONLY
Item is no longer available
Price
N/A
36V2
CIRCUIT BOARD W/BOX V2.01.20
Price
$76.20
37
PHLP HD SCR M4-.7 X 10
Price
N/A
38
CAP SCREW M8-1.25 X 25
Price
N/A
39
CAP SCREW M6-1 X 16
Price
N/A
40
MOTOR MOUNTING PLATE
Price
$3.75
41
MOTOR V1
Price
$107.10
41-1
MOTOR BRUSH RETAINER
Price
$2.20
41-2V2
MOTOR BRUSH V2.12.11
Price
$4.90
41V2
MOTOR V2.01.20
Price
$98.05
41V2-1
CARBON BRUSH
Price
$8.15
41V2-2
BRUSH CAP
Price
$1.90
42
MACHINE ID LABEL V1
Price
$2.50
42V2
MACHINE ID LABEL V2.01.20
Price
$16.40
43
EXT RETAINING RING 10MM
Price
N/A
44
TOOL REST BASE
Price
$21.05
45
PLATE BOLT M8-1.25 X 32
Price
$2.60
46
CLAMP BLOCK
Price
$4.70
47
LOCK WASHER 8MM
Price
N/A
48
SLEEVE
Price
$1.85
49
ECCENTRIC ROD
Price
$8.95
50
TOOL REST 7" LARGE
Price
$16.90
50A
TOOL REST SMALL 4-1/2"
Price
$14.95
51
TAILSTOCK CLAMP BOLT M8-1.25 X 32
Price
N/A
52
CLAMP BLOCK
Price
$3.55
53
ELECTRICITY LABEL
Price
$1.25
54
LOCK LEVER
Price
N/A
55
UNPLUG MACHINE LABEL
Price
$1.25
56
LATHE WARNING LIST LABEL
Price
$2.40
57
READ MANUAL LABEL
Price
$1.25
58
Paddle Switch 125V/250V
Price
N/A
58-1
PADDLE SWITCH KEY
Price
N/A
59
FUSE 10A
Price
$2.15
60
SPEED SWITCH W/KNOB
Price
$11.50
60-1
KNOB
Price
$5.45
61
FLAT WASHER 6MM
Price
N/A
62
LOCK WASHER 6MM
Price
N/A
63
CAP SCREW M8-1.25 X 15
Price
N/A
64
PHLP HD SCR M4-.7 X 10
Price
N/A
65
CABLE HOLDER
Price
$2.20
66
CARTON FOR W1704
Price
$18.70
67
STYROFOAM 2PCS
Price
$50.35
68
KNOCK-OUT TOOL ROD
Price
N/A
68-1
KNOCK-OUT TOOL END BALL
Price
N/A
68A
COMPLETE KNOCK OUT TOOL ASSY
Price
$2.25
69
COUPLER
Price
$6.15
70
HEX WRENCH 3MM
Price
N/A
71
HEX WRENCH 5MM
Price
N/A
72
FLAT HD SCR M5-.8 X 8
Price
N/A
73
ROLL PIN 4 X 16
Price
N/A
74
STRAIN RELIEF TYPE-1 3/8"
Price
$1.90
75
WRENCH 19 X 27MM OPEN-ENDS
Price
N/A
76
SET SCREW M6-1 X 12
Price
N/A
77
SHOP FOX YELLOWISH WHITE W1704
Price
N/A
MANUAL
MANUAL W1704 MFD-09.03-12.19 V1.12.03
Price
$15.65
MANV2
MANUAL W1704 MFD-01.20+ V2.01.20
Price
$17.55
PKG1
BOX FOR W1704
Price
$18.70
PKG2
STYROFOAM FOR W1704 BOX
Price
$18.70
