Parts for W1706 - 1 HP 14" Bandsaw

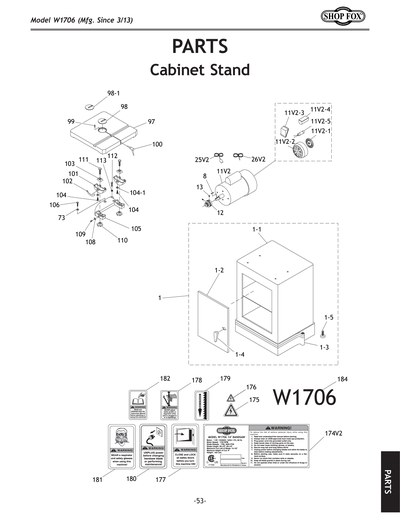

Part Diagram for W1706

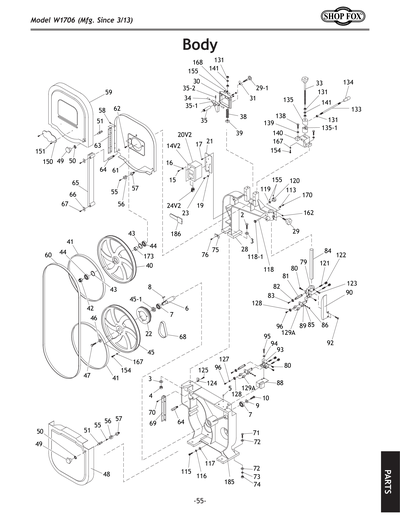

Part Diagram for W1706

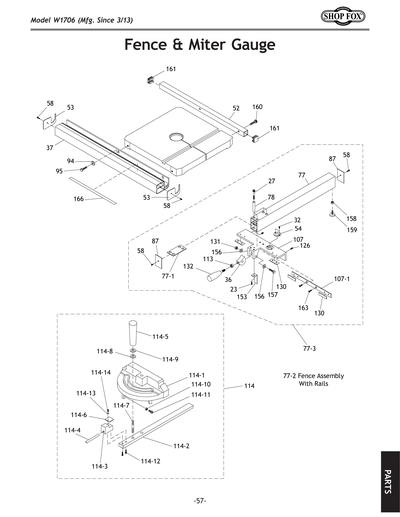

Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706
Part Diagram for W1706

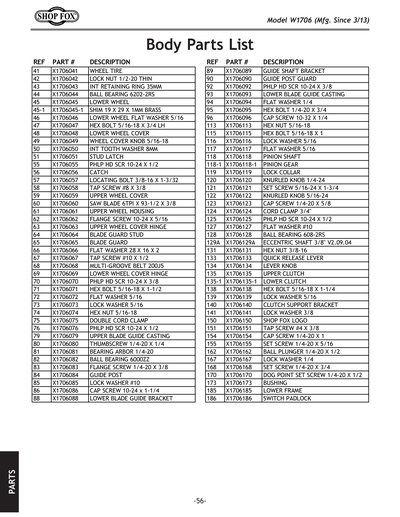

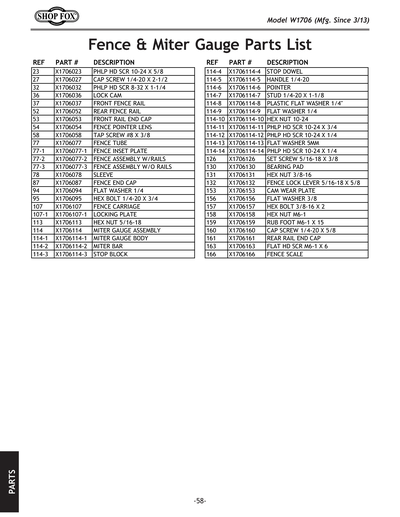

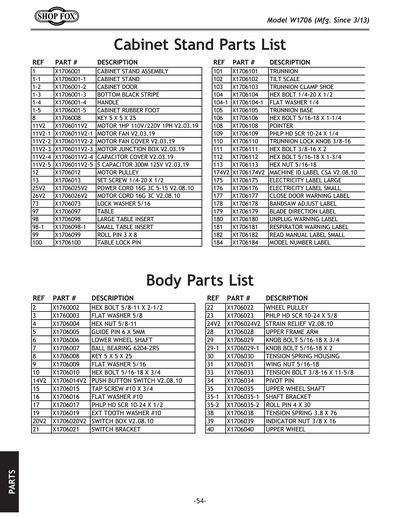

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
COMPLETE STAND ASSEMBLY BOX 2
Price
$507.90
1-1
CABINET STAND
Price
$623.10
1-2
CABINET DOOR
Price
$36.50
1-3
BOTTOM BLACK STRIPE
Price
$33.00
1-4
HANDLE
Price
$30.10
1-5
RUBBER FOOT
Price
N/A
1-6
HEX NUT 3/8-16
Price
N/A
1A
CABINET STAND
Price
N/A
1B
CABINET DOOR
Price
N/A
1C
BOTTOM BLACK STRIPE
Price
N/A
1D
HANDLE
Price
N/A
2
X1706002
Now: PB64
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
2V2
HEX BOLT 5/8-11 X 3 V2.11.22
Price
N/A
3
X1706003
Now: PW14
FLAT WASHER 5/8
Price
N/A
3V2
FLAT WASHER 16.5 X 38 X 8MM V2.11.22
Price
N/A
4
X1706004
Now: PN04
HEX NUT 5/8-11
Price
N/A
5
GUIDE PIN 6 X 15MM
Price
N/A
6
LOWER WHEEL SHAFT
Price
N/A
7
BALL BEARING 6204-2RS
Price
N/A
8
KEY 5 X 5 X 25
Price
N/A
9
X1706009
Now: PW07
FLAT WASHER 5/16
Price
N/A
10
X1706010
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
11
MOTOR 1HP 110V/220V 1PH
Price
N/A
11-1
MOTOR FAN
Price
N/A
11-2
FAN COVER
Price
N/A
11-3
MOTOR JUNCTION BOX
Price
$3.45
11-4
CAPACITOR COVER
Price
$2.10
11-5
S CAPACITOR 300M 125V
Price
$15.95
11V2
MOTOR 1HP 110V/220V 1PH
Price
$470.95
11V2-1
MOTOR FAN
Price
$4.60
11V2-2
MOTOR FAN COVER
Price
$16.60
11V2-3
MOTOR JUNCTION BOX
Price
$4.15
11V2-4
CAPACITOR COVER
Price
$3.05
11V2-5
S CAPACITOR 300M 125V
Price
$15.95
12
MOTOR PULLEY
Price
$14.00
13
SET SCREW 1/4-20 X 1/2
Price
N/A
14V2
PUSH BUTTON SWITCH V2.08.10
Price
$44.60
15
TAP SCREW #10 X 3/4
Price
N/A
16
X1706016
Now: PW03
FLAT WASHER #10
Price
N/A
17
X1706017
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
18
LOCK WASHER 5/8
Price
N/A
19
EXT TOOTH WASHER #10
Price
N/A
20V2
SWITCH BOX V2.08.10
Price
$15.40
21
SWITCH BRACKET
Price
$1.80
22
WHEEL PULLEY
Price
$29.55
23
X1706023
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
24V2
STRAIN RELIEF V2.08.10
Price
$2.65
25
*DISCD*POWER CORD W/PLUG V1
Price
$7.60
25V2
POWER CORD 16G 3C 5-15 V2.08.10
Price
$21.50
26
*DISCD*MOTOR CORD V1
Price
$3.80
26V2
MOTOR CORD 16G 3C V2.08.10
Price
$10.30
27
CAP SCREW 1/2-12 X 1-3/4
Price
N/A
28
UPPER FRAME ARM
Price
$163.10
29
STAR KNOB BOLT 5/16-18 X 3/4
Price
N/A
29-1
KNOB BOLT 5/16-18 X 2
Price
$2.05
30
TENSION SPRING HOUSING
Price
$17.75
30A
SLIDING HOUSING ASSY
Price
$25.40
31
WING NUT 5/16-18
Price
N/A
32
X1706032
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
33
TENSION BOLT 3/8-16 X 11-5/8
Price
N/A
34
PIVOT PIN ROUND V1
Price
$1.80
34V2
PIVOT PIN W/FLAT SIDE V2.07.12
Price
$2.20
35
UPPER WHEEL SHAFT
Price
N/A
35-1
SHAFT BRACKET
Price
N/A
35-2
ROLL PIN 4 X 30
Price
N/A
35A
UPPER WHEEL SHAFT
Price
N/A
35B
SHAFT BRACKET
Price
N/A
35C
ROLL PIN 4 X 30
Price
N/A
36
LOCK CAM
Price
N/A
37
FRONT FENCE RAIL
Price
$73.70
38
TENSION SPRING 3.8 X 76
Price
$3.75
39
INDICATOR NUT 3/8 X 16
Price
N/A
40
UPPER WHEEL
Price
$136.20
40-1
*DISCD*SHIM 16 X 30 X 1MM BRASS
Price
$2.10
41
WHEEL TIRE
Price
N/A
42
LOCK NUT 1/2"-20 THIN
Price
N/A
43
INT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202-2RS
Price
N/A
45
LOWER WHEEL
Price
$134.25
45-1
SHIM 19 X 29 X 1MM BRASS
Price
$4.20
46
X1706046
Now: PW07
FLAT WASHER 5/16
Price
N/A
47
HEX BOLT 5/16-18 X 3/4 LH
Price
N/A
48
LOWER WHEEL GUARD
Price
$31.40
49
KNOB 5/16-18
Price
N/A
50
INT TOOTH WASHER 8MM
Price
N/A
51
***USE P0555LX051***
Price
$3.80
52
REAR FENCE RAIL
Price
$14.70
53
FRONT RAIL END CAP
Price
$5.75
54
FENCE POINTER LENS
Price
$2.85
55
X1706055
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
57
LOCATING BOLT
Price
N/A
58
TAP SCREW #8 X 3/8
Price
N/A
59
UPPER WHEEL COVER
Price
$33.50
60
SAW BLADE 6TPI X 93-1/2 X 3/8
Price
$27.60
61
UPPER WHEEL HOUSING
Price
$28.10
62
FLANGE SCREW 10-24 X 5/16
Price
N/A
63
UPPER WHEEL COVER HINGE
Price
$4.90
64
BLADE GUARD BOLT
Price
$2.15
65
BLADE GUARD
Item is no longer available
Price
N/A
66
FLAT WASHER 28 X 16 X 2
Price
$1.49
67
TAP SCREW #10 X 1/2
Price
N/A
68
RIBBED V-BELT 200J5
Price
N/A
69
LOWER WHEEL COVER HINGE
Price
$6.50
70
X1706070
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
71
X1706071
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
72
X1706072
Now: PW07
FLAT WASHER 5/16
Price
N/A
73
LOCK WASHER 5/16
Price
N/A
74
X1706074
Now: PN02
HEX NUT 5/16-18
Price
N/A
75
CORD CLAMP
Price
N/A
76
X1706076
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
77
FENCE TUBE
Price
$47.50
77-1
FENCE INSET PLATE
Price
$1.80
77-2
FENCE ASSEMBLY W/RAILS
Price
$176.25
77-3
FENCE ASSEMBLY W/O RAILS
Price
$129.90
78
SLEEVE
Price
$2.80
79
UPPER BLADE GUIDE CASTING
Price
N/A
80
THUMBSCREW 1/4-20 X 1/4
Price
N/A
81
BEARING ARBOR
Price
N/A
82
BALL BEARING 6000ZZ
Price
N/A
83
FLANGE SCREW 1/4-20 X 3/8
Price
N/A
84
GUIDE POST
Price
$36.60
85
LOCK WASHER #10
Price
N/A
86
CAP SCREW 10-24 X 1-1/4
Price
N/A
87
FENCE END CAP
Price
$1.49
88
LOWER BLADE GUIDE BRACKET
Price
$5.80
89
GUIDE SHAFT BRACKET
Price
N/A
90
UPPER BLADE GUARD
Price
N/A
92
X1706092
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
93
LOWER BRACKET POST
Price
N/A
94
X1706094
Now: PW06
FLAT WASHER 1/4
Price
N/A
95
X1706095
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
96
CAP SCREW 10-32 X 1/4
Price
N/A
97
TABLE
Price
$307.95
98
TABLE INSERT W/LARGE SLOT
Price
N/A
98-1
TABLE INSERT W/SMALL SLOT
Price
N/A
98A
***USE P0555LX198***
Price
N/A
99
ROLL PIN 3 X 8
Price
N/A
100
TABLE LOCK PIN
Price
N/A
101
TRUNNION
Price
$10.65
102
TILT SCALE
Price
$1.49
103
TRUNNION CLAMP SHOE
Price
$4.30
104
X1706104
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
104-1
FLAT WASHER 1/4
Price
N/A
105
TRUNNION BASE
Price
N/A
106
X1706106
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
107
FENCE CARRIAGE
Price
$44.30
107-1
LOCKING PLATE
Price
$10.00
107A
LOCKING PLATE
Price
N/A
108
POINTER
Price
$1.80
109
X1706109
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
110
KNOB 3/8-16, 6-LOBE, D2-1/4
Price
N/A
111
TRUNNION HEX BOLT 3/8-16 X 2
Price
N/A
112
X1706112
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
113
X1706113
Now: PN02
HEX NUT 5/16-18
Price
N/A
114
*DISCD*MITER GAUGE ASSY
Price
N/A
114-1
MITER GAUGE BODY
Price
$33.50
114-10
HEX NUT 10-24
Price
N/A
114-11
PHLP HD SCR 10-24 X 3/4
Price
N/A
114-12
PHLP HD SCR 10-24 X 1/4
Price
N/A
114-13
FLAT WASHER 5MM
Price
N/A
114-14
PHLP HD SCR 10-24 X 1/4
Price
N/A
114-2
MITER BAR
Price
$5.75
114-3
STOP BLOCK
Price
N/A
114-4
STOP DOWEL
Price
N/A
114-5
MITER HANDLE 1/4-20
Price
N/A
114-6
POINTER
Price
$4.50
114-7
STUD-SE 1/4-20 X 1-1/8 1/2
Price
N/A
114-8
PLASTIC WASHER 1/4-16
Price
N/A
114-9
FLAT WASHER 1/4
Price
N/A
115
X1706115
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
116
LOCK WASHER 5/16
Price
N/A
117
X1706117
Now: PW07
FLAT WASHER 5/16
Price
N/A
118
PINION SHAFT
Price
$20.50
118-1
PINION GEAR
Price
$6.25
119
LOCK COLLAR
Price
$1.49
120
KNURLED KNOB 1/4-24
Price
$18.40
121
SET SCREW 5/16-24 X 1-3/4
Price
N/A
122
KNURLED NUT 5/16-24
Price
$4.95
123
CAP SCREW 1/4-20 X 5/8
Price
N/A
124
CORD CLAMP 3/8
Price
N/A
125
X1706125
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
126
SET SCREW 5/16-18 X 3/8
Price
N/A
127
X1706127
Now: PW03
FLAT WASHER #10
Price
N/A
128
BALL BEARING 608-2RS
Price
N/A
129
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
129A
ECCENTRIC 3/8"
Price
N/A
129B
ECCENTRIC 1/4"
Price
N/A
130
BEARING PAD
Price
N/A
131
X1706131
Now: PN08
HEX NUT 3/8-16
Price
N/A
132
HANDLE BOLT 5/16-18
Price
N/A
133
STUD-UDE 3/8-16 X 10 1, 3/4
Price
N/A
134
LEVER KNOB
Price
$2.95
135-1
LOWER CLUTCH
Price
N/A
136
BUTTON CAP SCREW 5/16"-18 X 3/4"L
Price
$1.80
138
X1706138
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
139
LOCK WASHER 5/16
Price
N/A
140
CLUTCH SUPPORT BRACKET
Price
N/A
141
LOCK WASHER 3/8
Price
N/A
143
BOTTOM CAP SCREW 5/16"-18 X 3/4"L
Price
$1.80
147
UNPLUG BANDSAW LABEL
Price
$0.95
150
Shop Fox Nameplate - Small
Price
N/A
151
TAP SCREW #8 X 5/8
Price
N/A
153
CAM WEAR PLATE
Price
N/A
154
CAP SCREW 1/4-20 X 3/4
Price
N/A
155
SET SCREW 1/4-20 X 5/16
Price
N/A
156
X1706156
Now: PW02
FLAT WASHER 3/8
Price
N/A
157
X1706157
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
158
HEX NUT M6-1
Price
N/A
159
RUB FOOT M6-1 X 15
Price
$1.49
160
CAP SCREW 1/4-20 X 5/8
Price
N/A
161
REAR RAIL END CAP
Price
N/A
162
BALL PLUNGER 1/4-20 X 1/2
Price
$2.10
163
FLAT HD SCR M6-1 X 6
Price
N/A
166
FENCE SCALE
Price
$7.55
167
LOCK WASHER 1/4
Price
N/A
168
SET SCREW 1/4-20 X 3/4
Price
N/A
170
DOG POINT SET SCREW 1/4-20 X 1/2"
Price
$1.70
173
BUSHING
Price
$3.20
174
MACHINE ID LABEL V1
Price
$16.40
174V2
MACHINE ID LABEL CSA V2.08.10
Price
$16.40
175
ELECTRICITY 1.4W X 1.2H
Price
N/A
176
ELECTRICITY 0.5W X 0.4H
Price
N/A
177
KEEP DOOR CLOSED 2W X 3.3H
Price
N/A
178
BANDSAW ADJUST LABEL 3.8W X 2H
Price
N/A
179
BLADE CUT DIRECTION LABEL
Price
N/A
180
DISCONNECT 220V 2W X 3.3H
Price
N/A
181
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
182
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
183
COMPLETE BOLT & HARDWARE BAG V1
Price
$15.20
183V2
COMPLETE BOLT & HARDWARE BAG V2.08.10
Price
$29.50
184
MODEL NUMBER LABEL
Price
$47.10
185
LOWER FRAME
Price
$235.00
186
SWITCH PADLOCK W/KEYS
Price
$16.75
200
CARTON FOR W1706
Price
$27.70
201
STYROFOAM FOR W1706
Price
$48.50
202
CARTON FOR W1706 STAND
Price
$27.70
203
STYROFOAM FOR W1706 STAND
Price
$3.55
MANUAL
MANUAL FOR W1706 11/10
Price
$18.00
