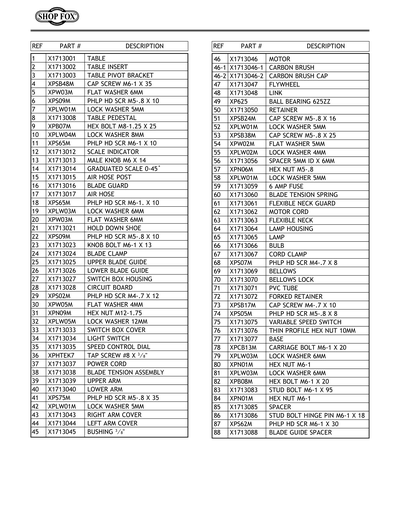

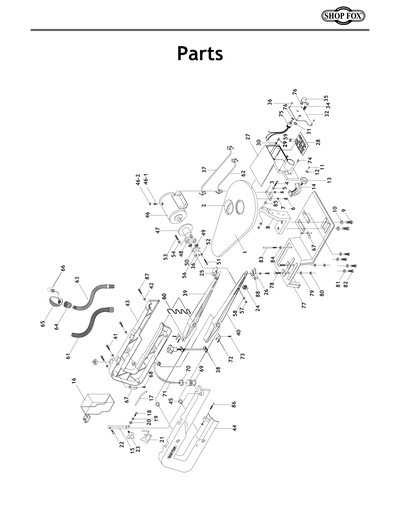

Parts for W1713 16" Variable-Speed Scroll Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
TABLE
2
TABLE INSERT
3
TABLE PIVOT BRACKET
4
CAP SCREW M6-1 X 35
Price
N/A
5
Now: PW03M
FLAT WASHER 6MM
Price
N/A
6
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
7
LOCK WASHER 5MM
Price
N/A
8
TABLE PEDESTAL
9
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
10
LOCK WASHER 8MM
Price
N/A
11
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
12
SCALE INDICATOR
Item is no longer available
Price
N/A
13
KNOB BOLT M6-1 X 14
14
GRADUATED SCALE 0-45 DEGREES
15
AIR HOSE POST
16
BLADE GUARD
17
AIR HOSE
Item is no longer available
Price
N/A
18
Now: PS81M
PHLP HD SCR M6-1 X 40
Price
N/A
19
LOCK WASHER 6MM
Price
N/A
20
Now: PW03M
FLAT WASHER 6MM
Price
N/A
21
HOLDDOWN SHOE
22
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
23
KNOB BOLT M6-1 X 13
24
BLADE ADAPTER
24-1
BLADE 18TPI
24-2
BLADE 15TPI
25
UPPER BLADE HOLDER
26
LOWER BLADE HOLDER
27
SWITCH BOX HOUSING
28
CIRCUIT BOARD
29
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
30
Now: PW05M
FLAT WASHER 4MM
Price
N/A
31
VARIABLE SPEED SWITCH ASSY
Price
N/A
32
LOCK WASHER 12MM
Price
N/A
33
SWITCH BOX COVER
34
LIGHT SWITCH
35
SPEED CONTROL DIAL
36
TAP SCREW #8 X 3/8
Price
N/A
37
POWER CORD
Item is no longer available
Price
N/A
38
BLADE TENSION ASSEMBLY
38-1
BLADE TENSION BODY
38-2
THREADED PLATE
38-3
NON-THREADED PLATE
39
UPPER ARM
40
LOWER ARM
41
Now: PS75M
PHLP HD SCR M5-.8 X 35
Price
N/A
42
LOCK WASHER 5MM
Price
N/A
43
RIGHT ARM COVER
Item is no longer available
Price
N/A
44
LEFT ARM COVER
Item is no longer available
Price
N/A
45
BUSHING 3/8"
45-1
RUBBER BUSHING COVER
46
MOTOR 1/8HP 110V 60HZ
46-1
CARBON BRUSH (SINGLE)
46-2
CARBON BRUSH CAP
47
FLYWHEEL
48
BEARING HOUSING
49
Router Bit Bearing 5/8" x 5mm
Price
N/A
50
BEARING RETAINER
51
CAP SCREW M5-.8 X 16
Price
N/A
52
LOCK WASHER 5MM
Price
N/A
53
CAP SCREW M5-.8 X 25
Price
N/A
54
Now: PW02M
FLAT WASHER 5MM
Price
N/A
55
LOCK WASHER 4MM
Price
N/A
56
SPACER 5 X 6MM
57
Now: PN06M
HEX NUT M5-.8
Price
N/A
58
LOCK WASHER 5MM
Price
N/A
59
FUSE 6A (100-120V)
Price
N/A
60
BLADE TENSION SPRING
61
FLEX NECK/HOUSING ASSEMBLY
Price
N/A
62
MOTOR CORD
Item is no longer available
Price
N/A
63
FLEX NECK/HOUSING ASSEMBLY
Price
N/A
63-1
FLEX NECK/HOUSING ASSEMBLY
64
FLEX NECK/HOUSING ASSEMBLY
Price
N/A
65
LAMP HOOD
66
LIGHT BULB 120V/10W
67
CORD CLAMP
Item is no longer available
Price
N/A
68
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
69
BELLOWS
70
BELLOWS LOCK
71
PVC TUBE
72
FORKED RETAINER
73
CAP SCREW M4-.7 X 10
Price
N/A
74
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
75
VARIABLE SPEED SWITCH ASSY
Price
N/A
75A
VARIABLE SPEED SWITCH ASSY
76
THIN PROFILE HEX NUT 10MM
77
BASE
78
CARRIAGE BOLT M6-1 X 20
Price
N/A
79
LOCK WASHER 6MM
Price
N/A
80
Now: PN01M
HEX NUT M6-1
Price
N/A
81
LOCK WASHER 6MM
Price
N/A
82
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
83
STUD-SE M6-1 X 80 30
84
Now: PN01M
HEX NUT M6-1
Price
N/A
85
*DISCD*SPACER
Item is no longer available
Price
N/A
86
STANDOFF STUD M6-1 X 18
87
Now: PS62M
PHLP HD SCR M6-1 X 30
Price
N/A
88
BLADE GUIDE SPACER
89
WRENCH T-HANDLE HEX 3MM
90
BASE COVER
91
MACHINE ID LABEL
92
BLADE TENSION LABEL
93
UNPLUG POWER CORD LABEL
94
SPACER
95
LOCK WASHER 4MM
Price
N/A
96
CAP SCREW M4-.7 X 20
Price
N/A
97
CLAMP PLATE
Item is no longer available
Price
N/A
98
LAMP NECK BASE
Item is no longer available
Price
N/A
99
STRAIN RELIEF TYPE-6 ST
Item is no longer available
Price
N/A
100
CARTON FOR W1713
Item is no longer available
Price
N/A
101
STYROFOAM
Item is no longer available
Price
N/A
102
LAMP NECK BASE HEX NUT
Item is no longer available
Price
N/A
103
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
104
SET SCREW M5-.8 X 6
Price
N/A
105
EYE/LUNG CAUTION LABEL
Item is no longer available
Price
N/A
106
CONTROL PANEL LABEL
107
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
108
DISCONNECT POWER LABEL
109
HEX WRENCH 4MM
Price
N/A
110
BEARING CAPS
MAN
MANUAL FOR W1713 01/10
MANUAL
MANUAL FOR W1713 01/10
