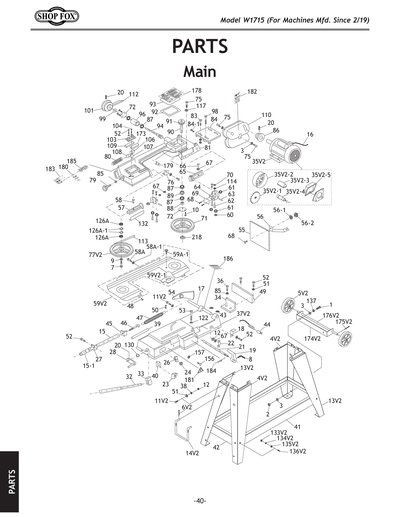

Parts for W1715 - 4-1/2" x 6" 3/4 HP Metal-Cutting Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 X1715001
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
2 X1715002
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
3 X1715003
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
4 X1715004 STAND LEG (RIGHT) $62.00
4V2 X1715004V2 STAND LEG (RIGHT) V2.09.17 $17.25
5 X1715005 WHEEL ASSY $1.75
5V2 X1715005V2 WHEEL V2.09.17 $10.25
6 X1715006 COTTER PIN $1.00
6V2 X1715006V2 COTTER PIN M4 X 30 V2.09.17 $1.75
7 X1715007
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
8 X1715008 LOCKING LEVER $1.00
9 X1715009
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
10 X1715010
Replaced By PFH19M
FLAT HD SCR M4-.7 X 10
N/A View Replacement
11 X1715011
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
11V2 X1715011V2
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
12 X1715012
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
13 X1715013 STAND LEG (LEFT) $12.50
13V2 X1715013V2 STAND LEG (LEFT) V2.09.17 $17.25
14 X1715014 TRANSPORT HANDLE $3.00
14V2 X1715014V2 TRANSPORT HANDLE V2.09.17 $3.50
15 X1715015 ADJUSTING ROD $1.00
15-1 X1715015-1 RUBBER HANDLE GRIP $3.00
16 X1715016 MOTOR CORD $4.75
17 X1715017 PIVOTING ROD $2.00
18 X1715018 SUPPORT PLATE $3.75
19 X1715019 WORK STOP $11.00
20 X1715020
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
21 X1715021 STOCK STOP ROD $1.25
22 X1715022 WIRE RELIEF RETAINER $1.00
23 X1715023 SWITCH $7.50
24 X1715024
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
26 X1715026 SWITCH PANEL $1.75
27 X1715027 ADJUSTING ROD SUPPORT $1.00
28 X1715028 HAND WHEEL $2.00
30 X1715030
Replaced By PR47M
EXT RETAINING RING 13MM
N/A View Replacement
32 X1715032 LEADSCREW M16-4 X 358 $12.50
33 X1715033 VISE NUT M6-4 $8.75
34 X1715034 FRONT VISE JAW $3.00
35-2 X1715035-2
Replaced By PX1715035V2-2
FAN COVER V2.04.10
N/A View Replacement
35-3 X1715035-3
Replaced By PX1715035V2-3
CAPACITOR COVER V2.04.10
N/A View Replacement
35-4 X1715035-4
Replaced By PC035A
R CAPACITOR 35M 250V 1-1/2 X 2-3/4
N/A View Replacement
35V2 X1715035V2 MOTOR W/D SHAPE FAN SHAFT V2.04.10 $204.75
35V2-1 X1715035V2-1 FAN D SHAPE HOLE V2.04.10 $1.25
35V2-2 X1715035V2-2 FAN COVER V2.04.10 $7.00
35V2-3 X1715035V2-3 CAPACITOR COVER V2.04.10 $2.00
35V2-4 X1715035V2-4
Replaced By PC035A
R CAPACITOR 35M 250V 1-1/2 X 2-3/4
N/A View Replacement
36 X1715036
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
37 X1715037 BED $119.50
37V2 X1715037V2 BED V2.09.17 $136.50
38 X1715038
Replaced By PK131M
KEY 5 X 5 X 28
N/A View Replacement
39 X1715039 SCALE $1.00
40 X1715040 ELECTRIC CORD COVER $1.50
41 X1715041 LONG BRACE $10.25
42 X1715042 SHORT BRACE $5.25
43 X1715043 GASKET $1.00
44 X1715044 POWER CORD $3.75
45 X1715045 NUT PLATE $1.00
46 X1715046 SPRING ADJUST SCREW M5-.8 X 40 $1.00
47 X1715047 EXTENSION SPRING 22 X 4.5 X 215 $12.00
48 X1715048
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
49 X1715049 REAR VISE JAW $3.75
50 X1715050
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
51 X1715051
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
52 X1715052
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
53 X1715053
Replaced By PB43M
HEX BOLT M12-1.75 X 75
N/A View Replacement
54 X1715054 PIVOT $20.25
55 X1715055 TABLE $18.50
56 X1715056 TABLE BRACKET $1.00
56-1 X1715056-1
Replaced By PWF06M
FENDER WASHER 6MM
N/A View Replacement
56-2 X1715056-2
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
57 X1715057 ADJUSTABLE BRACKET TOP $5.50
58 X1715058 KNOB BOLT M10-1.5 X 25 $1.00
58A X1715058A
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
58A-1 X1715058A-1
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
59 X1715059 BLADE BACK SAFETY COVER V1 $6.50
59A X1715059A
Replaced By PX1715059V2
BLADE BACK SAFETY COVER ASSY
N/A View Replacement
59A-1 X1715059A-1
Replaced By PX1715059V2
BLADE BACK SAFETY COVER ASSY
N/A View Replacement
59V2 X1715059V2 BLADE BACK SAFETY COVER ASSY $15.50
59V2-1 X1715059V2-1
Replaced By PX1715059V2
BLADE BACK SAFETY COVER ASSY
N/A View Replacement
60 X1715060
Replaced By PR39M
EXT RETAINING RING 8MM
N/A View Replacement
61 X1715061
Replaced By P629ZZ
BALL BEARING 629ZZ
N/A View Replacement
62 X1715062 GUIDE PIVOT $1.75
63 X1715063 BEARING SHAFT PIN 8 X 40MM $1.00
64 X1715064 BLADE ADJUSTABLE SEAT $11.50
65 X1715065 ADJUSTABLE BRACKET $11.75
66 X1715066 GUIDE BEARING LOCK $1.00
67 X1715067
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
68 X1715068
Replaced By PFH02M
FLAT HD SCR M6-1 X 12
N/A View Replacement
69 X1715069 BLADE GUARD $4.00
70 X1715070
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
71 X1715071 FRONT BLADE WHEEL $32.25
72 X1715072 BLADE WHEEL BEARING COVER $1.25
73 X1715073
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
75 X1715075
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
75-1 X1715075-1 MOTOR PLATE PIN $1.50
75-2 X1715075-2 MOTOR PLATE BOLT M12-1.75 X 1-3/16 $1.00
76 X1715076 SWITCH CUT OFF TIP $1.00
77 X1715077 REAR BLADE WHEEL V1 $15.50
77V2 X1715077V2 REAR BLADE WHEEL V2.02.08 $40.00
79 X1715079 BLADE TENSION KNOB $7.00
80 X1715080 COMPRESSION SPRING 14.5 X 2 X 76 $1.00
81 X1715081 BODY FRAME $48.25
83 X1715083
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
84 X1715084 MOTOR MOUNT PLATE $9.50
84-1 X1715084-1 MOTOR MOUNT PLATE HEX BOLT M12-1.75 X 30 $1.75
85 X1715085
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
86 X1715086 MOTOR PULLEY $16.25
87 X1715087
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
88 X1715088 BEARING BUSHING $1.00
89 X1715089 OIL SEAL $1.00
90 X1715090 TRANSMISSION WHEEL SHAFT $10.50
91 X1715091 TRANSMISSION GEAR $41.00
92 X1715092 GEAR BOX GASKET $4.25
93 X1715093 GEAR BOX COVER $1.25
94 X1715094 WORM GEAR $38.50
96 X1715096 BEARING BUSHING $1.00
98 X1715098
Replaced By PB22M
HEX BOLT M8-1.25 X 50
N/A View Replacement
99 X1715099 RUBBER O-RING 15 X 7 $2.50
101 X1715101 WORM GEAR PULLEY $10.50
103 X1715103 BLADE TENSION PLATE $3.50
104 X1715104
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
105 X1715105
Replaced By PRP35M
ROLL PIN 5 X 10
N/A View Replacement
106 X1715106 SLIDING PLATE DRAW BLOCK $1.50
106-1 X1715106-1 *DISCD*ROLL PIN $1.75
107 X1715107 BLADE WHEEL SHAFT $1.75
108 X1715108 SHAFT BLOCK $1.00
109 X1715109 BLADE TENSION SLIDING GUIDES $3.75
110 X1715110 MOTOR PULLEY COVER $14.25
112 X1715112 V-BELT 3L215 $4.50
113 X1715113 BLADE 1/2 X .025 X 64-1/2 $34.25
114 X1715114
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
117 X1715117
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
118 X1715118
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
120 X1715120
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
122 X1715122
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
126 X1715126 BUSHING $2.50
126A X1715126A
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
126A-1 X1715126A-1
Replaced By PR21M
INT RETAINING RING 35MM
N/A View Replacement
132 X1715132 BLADE SAFE GUARD $5.00
133 X1715133
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
133V2 X1715133V2
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
134 X1715134
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
134V2 X1715134V2
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
135 X1715135
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
135V2 X1715135V2
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
136 X1715136
Replaced By PCB22M
CARRIAGE BOLT M6-1 X 16
N/A View Replacement
136V2 X1715136V2
Replaced By PCB06M
CARRIAGE BOLT M8-1.25 X 16
N/A View Replacement
137 X1715137
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
156 X1715156
Replaced By PS22M
PHLP HD SCR M5-.8 X 25
N/A View Replacement
157 X1715157
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
170 X1715170 TOOL PLATE $5.25
171 X1715171
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
172 X1715172
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
173 X1715173
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
174 X1715174 WHEEL STAND $1.75
174V2 X1715174V2 WHEEL STAND V2.09.17 $5.25
175 X1715175 COTTER PIN $1.00
175V2 X1715175V2
Replaced By PX1715006V2
COTTER PIN M4 X 30 V2.09.17
N/A View Replacement
176 X1715176 AXLE $1.25
176V2 X1715176V2 AXLE V2.09.17 $9.00
177 X1715177 CORNER BRACKET $1.00
178 X1715178 MACHINE ID LABEL $13.60
179 X1715179
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
180 X1715180 SAFETY GLASSES LABEL $1.75
181 X1715181
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
182 X1715182 UNPLUG MACHINE LABEL $1.00
183 X1715183 RPM LABEL $1.00
184 X1715184 BLADE TRAVEL LABEL $1.00
185 X1715185 BLADE SAFETY LABEL $1.00
186 X1715186 TIPPING HAZARD LABEL $1.00
187 X1715187 STYROFOAM 2PC $21.00
188 X1715188 CARTON FOR W1715 $44.25
189 X1715189 SAFETY BRACKET PIN $1.75
190 X1715190 SAFETY BRACKET PIN CHAIN $1.75
191 X1715191 HEAD LOCKING PIN $1.75
192 X1715192 HEAD LOCKING PIN CHAIN $1.75
193 X1715193 BOLT BAG $3.75
MANUAL X1715MANUAL MANUAL FOR W1715 05/09 $2.30
MANV2 X1715MANV2 MANUAL W1715 MFD-09.17+ V2.12.18 $17.20
