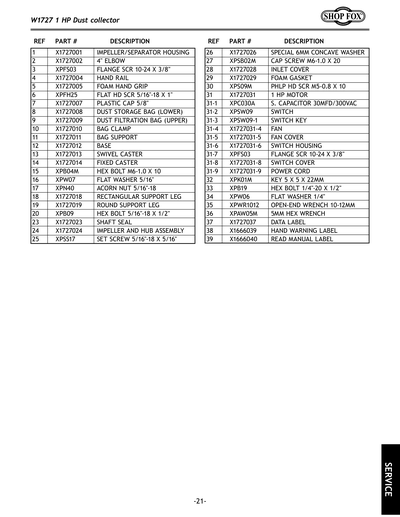

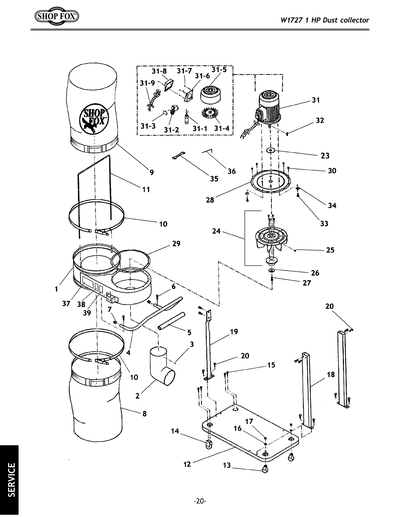

Parts for W1727 1 HP Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
IMPELLER/SEPARATOR HOUSING
2
PLASTIC ELBOW 4" 90DEG
Price
N/A
3
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
4
HAND RAIL
5
FOAM HAND GRIP
6
Now: PFH25
FLAT HD SCR 5/16-18 X 1
Price
N/A
7
PLASTIC CAP 5/8"
8
Now: D3545
Replacement Lower Bag for W1727 Dust Collector
Price
N/A
9
DUST FILTRATION BAG UPPER
10
BAG CLAMP
11
BAG SUPPORT
12
BASE
13
***USE P0583Z016***
14
FIXED CASTER
15
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
16
Now: PW07
FLAT WASHER 5/16
Price
N/A
17
Now: PN40
ACORN NUT 5/16-18
Price
N/A
18
RECTANGULAR SUPPORT LEG
19
ROUND SUPPORT LEG
20
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
23
SHAFT SEAL
24
IMPELLER & HUB ASSEMBLY
25
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
26
IMPELLAR CONCAVE WASHER 6MM
27
CAP SCREW M6-1 X 20
Price
N/A
28
INLET COVER
29
FOAM GASKET
30
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
31
MOTOR 1HP
31-1
R CAPACITOR 30M 300V 1-7/8 X 4
Price
N/A
31-2
Now: D2751
Paddle Switch 125V/250V
Price
N/A
31-3
PADDLE SWITCH KEY
Price
N/A
31-4
FAN
31-5
FAN COVER
Price
N/A
31-6
SWITCH HOUSING
31-7
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
31-8
SWITCH COVER
Price
N/A
31-9
POWER CORD
32
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
33
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
34
Now: PW06
FLAT WASHER 1/4
Price
N/A
35
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
36
HEX WRENCH 5MM
Price
N/A
37
DATA LABEL
38
HAND WARNING LABEL
39
READ MANUAL LABEL
40
BOLT & HARDWARE BAG
41
CASTER & BOLT BAG W/HARDWARE
100
CARTON FOR W1727
101
STYROFOAM
MAN
MANUAL FOR W1727 11/04
MANUAL
MANUAL FOR W1727 11/04
Price
N/A
