Parts for W1740 12" 1-1/2 HP Benchtop Drum Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

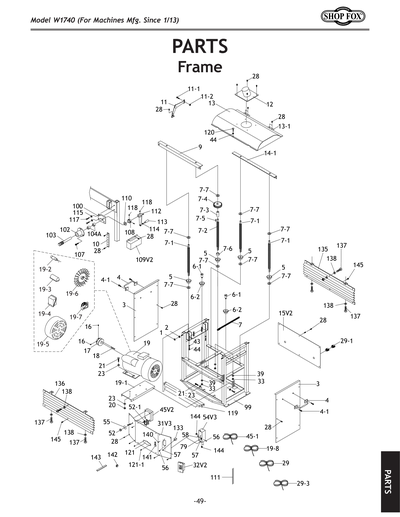

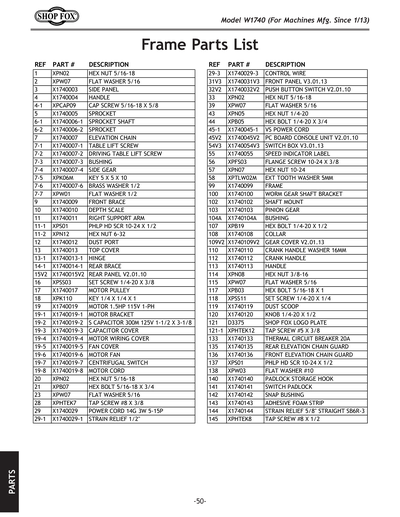

1
Now: PN02
HEX NUT 5/16-18
Price
N/A
2
Now: PW07
FLAT WASHER 5/16
Price
N/A
3
SIDE PANEL
4
HANDLE
4-1
CAP SCREW 5/16-18 X 5/8
Price
N/A
5
SPROCKET
6-1
SPROCKET SHAFT
6-2
SPROCKET
7
ELEVATION CHAIN
7-1
TABLE LEAD SCREW 1
Price
N/A
7-2
DRIVING TABLE LIFT SCREW
7-3
BUSHING
7-4
SIDE GEAR
7-5
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
7-6
BRASS WASHER 1/2
7-7
Now: PW01
FLAT WASHER 1/2
Price
N/A
9
FRONT BRACE
10
DEPTH SCALE
11
RIGHT SUPPORT ARM
11-1
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
11-2
Now: PN12
HEX NUT 6-32
Price
N/A
12
DUST PORT
13
TOP COVER
13-1
HINGE
14-1
REAR BRACE
15
REAR PANEL
15V2
REAR PANEL V2.01.10
16
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
17
MOTOR PULLEY
18
Now: PK110
KEY 1/4 X 1/4 X 1
Price
N/A
19
MOTOR 1.5HP 115V 1-PH
19-1
MOTOR BRACKET
19-2
S CAPACITOR 300M 125V 1-1/2 X 3-1/8
Price
N/A
19-3
CAPACITOR COVER
19-4
MOTOR WIRING COVER
19-5
FAN COVER
19-6
MOTOR FAN
19-7
CENTRIFUGAL SWITCH
19-8
MOTOR CORD
20
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
22
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
23
Now: PW07
FLAT WASHER 5/16
Price
N/A
24
Now: PN05
HEX NUT 1/4-20
Price
N/A
25
SPRING PLATE
26
ADJUST PLATE
27
GROMMET
28
TAP SCREW #8 X 3/8
Price
N/A
29
POWER CORD
29-1
STRAIN RELIEF 1/2"
29-2
DC MOTOR CORD
29-3
CONTROL WIRE
31
FRONT PANEL V1
31V2
FRONT PANEL V2.01.10
31V3
FRONT PANEL V3.01.13
32
Now: D2751
Paddle Switch 125V/250V
Price
N/A
32V2
PUSH BUTTON SWITCH V2.01.10
33
Now: PN02
HEX NUT 5/16-18
Price
N/A
34
Now: PN03
HEX NUT 3/4-16
Price
N/A
35
TABLE FRAME
36
Now: PW06
FLAT WASHER 1/4
Price
N/A
37

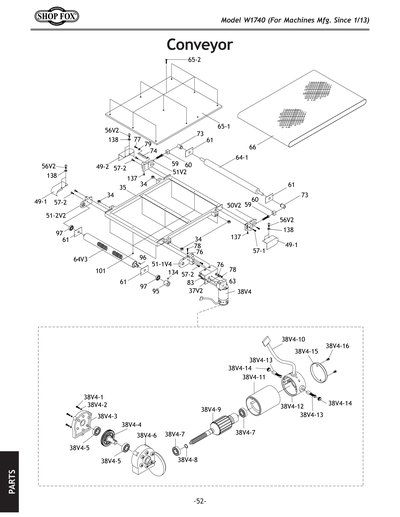

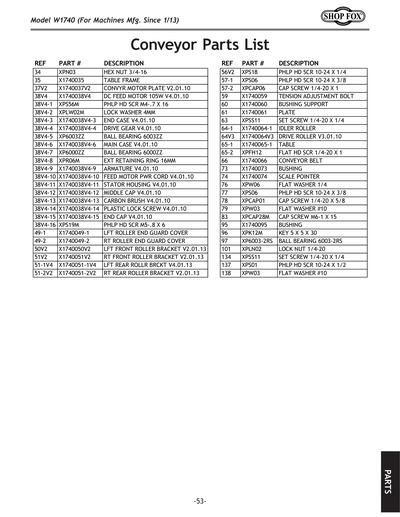

CONVEYOR MOTOR PLATE
37V2
CONVYR MOTOR PLATE V2.01.10
38V4
DC FEED MOTOR 105W V4.11.09
Price
N/A
38V4-1
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
38V4-10
FEED MOTOR PWR CORD V4.01.10
38V4-11
STATOR HOUSING V4.01.10
38V4-12
MIDDLE CAP V4.01.10
38V4-13
CARBON BRUSH (SET OF 2)
38V4-14
PLASTIC LOCK SCREW V4.01.10
38V4-15
END CAP V4.01.10
38V4-16
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
38V4-2
LOCK WASHER 4MM
Price
N/A
38V4-3
END CASE V4.01.10
38V4-4
DRIVE GEAR V4.01.10
38V4-5
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
38V4-6
MAIN CASE V4.01.10
38V4-7
BALL BEARING 6000ZZ
Price
N/A
38V4-8
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
38V4-9
ARMATURE V4.01.10
39
Now: PW07
FLAT WASHER 5/16
Price
N/A
40
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
42
CONVEYOR MOTOR CHAIN V1
Price
N/A
43
Now: PN05
HEX NUT 1/4-20
Price
N/A
44
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
45
PC BOARD CONSOLE UNIT V1
45-1
VS POWER CORD
45V2
PC BOARD CONSOLE UNIT V2.01.10
46
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
48
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
49-1
LEFT ROLLER END GUARD COVER
49-2
RIGHT ROLLER END GUARD COVER
50
LEFT FRONT ROLLER BRACKET V1
50V2
LEFT FRONT ROLLER BRACKET V2.01.13
51
RIGHT FRONT ROLLER BRACKET V1
51-1V3
LEFT REAR ROLLER BRACKET V3.01.10
51-1V4
LEFT REAR ROLLER BRACKET V4.01.13
51-2
RIGHT REAR ROLLER BRACKET V1
51-2V2
RIGHT REAR ROLLER BRACKET V2.01.13
51V2
RIGHT FRONT ROLLER BRACKET V2.01.13
52
VARIABLE SPEED CONTROL KNOB
Price
N/A
52-1
POTENTIOMETER B20K
Price
N/A
54
SWITCH BOX V1
54A
SWITCH BOX V2.01.10
54V2
SWITCH BOX V2.01.10
Price
N/A
54V3
SWITCH BOX V3.01.13
55
SPEED INDICATOR LABEL
Price
N/A
56
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
56V2
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
57
Now: PN07
HEX NUT 10-24
Price
N/A
57-1
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
57-2
CAP SCREW 1/4-20 X 1
Price
N/A
58
EXT TOOTH WASHER 5MM
Price
N/A
59
TENSION ADJUSTMENT BOLT
60
BUSHING SUPPORT
61
PLATE
Price
N/A
63
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
64
DRIVE ROLLER V3.01.10
Price
N/A
64-1
IDLER ROLLER
64V3
DRIVE ROLLER V3.01.10
65-1
***USE P04596066***
Price
N/A
65-2
Now: PFH12
FLAT HD SCR 1/4-20 X 1
Price
N/A
66
CONVEYOR BELT 1220 X 312MM
Price
N/A
69
PRESSURE ROLLER
70

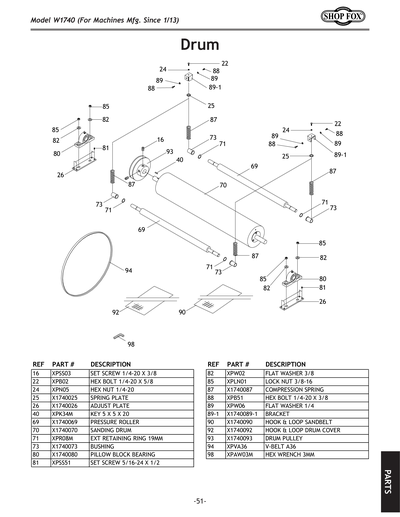

SANDING DRUM
71
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
73
BUSHING
Price
N/A
74
SCALE POINTER
76
Now: PW06
FLAT WASHER 1/4
Price
N/A
77
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
78
CAP SCREW 1/4-20 X 5/8
Price
N/A
79
Now: PW03
FLAT WASHER #10
Price
N/A
80
BEARING BLOCK
Price
N/A
81
Now: PSS51
SET SCREW 5/16-24 X 1/2
Price
N/A
82
Now: PW02
FLAT WASHER 3/8
Price
N/A
83
CAP SCREW M6-1 X 15
Price
N/A
85
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
87
COMPRESSION SPRING
88
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
89
Now: PW06
FLAT WASHER 1/4
Price
N/A
89-1
BRACKET
Price
N/A
90
HOOK & LOOP SANDBELT
92
HOOK & LOOP DRUM COVER
93
DRUM PULLEY
94
Now: PVA36
V-BELT A36
Price
N/A
95
BUSHING
96
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
97
BALL BEARING 6003-2RS
Price
N/A
98
HEX WRENCH 3MM
Price
N/A
99
FRAME
100
WORM GEAR SHAFT BRACKET
101
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
102
SHAFT MOUNT
103
WORM GEAR
Price
N/A
104
BUSHING
104A
BUSHING
107
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
108
COLLAR
109
GEAR COVER V1
109V2
GEAR COVER V2.01.13
110
CRANK HANDLE WASHER 16MM
111
WIRES
112
CRANK HANDLE
113
HANDLE
114
Now: PN08
HEX NUT 3/8-16
Price
N/A
115
Now: PW07
FLAT WASHER 5/16
Price
N/A
117
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
118
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
119
DUST SCOOP
120
KNOB 1/4-20 X 1/2
121
Now: D3375
Shop Fox Nameplate - Small
Price
N/A
121-1
TAP SCREW #5 X 3/8
Price
N/A
122

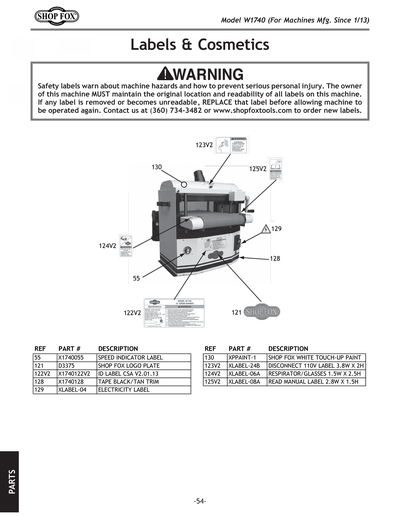

MACHINE ID LABEL V1
122V2
MACHINE ID LABEL CSA V2.01.13
123
DISCONNECT POWER LABEL V1
123V2
DISCONNECT 110V 3.8W X 2H
Price
N/A
124
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
124V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
125
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
125V2
READ MANUAL 2.8W X 1.5H
Price
N/A
126
SANDER BELT PINCH 5.3W X 2.8H
Price
N/A
127
SANDER KICKBACK LABEL
128
TAPE BLACK/TAN TRIM
129
ELECTRICITY 1.4W X 1.2H
Price
N/A
130
SHOP FOX WHITE M1006
Price
N/A
131
CARTON FOR W1740
132
STYROFOAM FOR W1740
133
THERMAL CIRCUIT BREAKER 20A
134
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
135
REAR ELEVATION CHAIN GUARD
Price
N/A
136
FRONT ELEVATION CHAIN GUARD
Price
N/A
137
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
138
Now: PW03
FLAT WASHER #10
Price
N/A
140
PADLOCK STORAGE HOOK
Price
N/A
141
SWITCH PADLOCK
142
SNAP BUSHING
143
ADHESIVE FOAM STRIP
144
STRAIN RELIEF 5/8" STRAIGHT SB6R-3
145
TAP SCREW #8 X 1/2
Price
N/A
KIT
*DISCD*FEED MOTOR CONVERSION KIT
Item is no longer available
Price
N/A
KIT-1
CONVEYOR MOTOR PLATE
KIT-2
CONVEYOR MOTOR CHAIN DRIVEN
Item is no longer available
Price
N/A
KIT-3
CONVEYOR MOTOR CHAIN
Item is no longer available
Price
N/A
KIT-4
PC BOARD CONSOLE UNIT
Item is no longer available
Price
N/A
