Parts for W1745 6" x 46" Jointer with Mobile Base

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

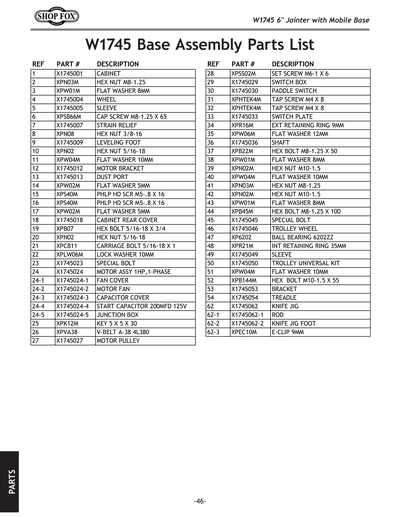

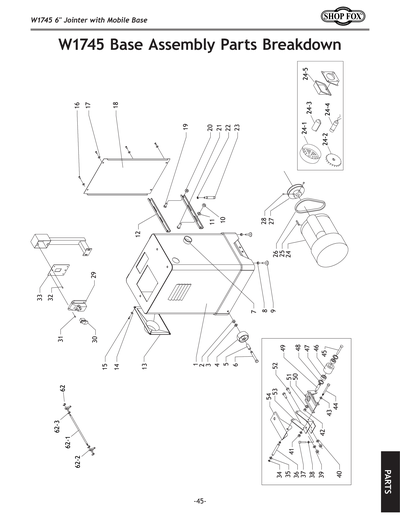

1
CABINET
1A
COMPLETE STAND ASSEMBLY BOX 2
2
Now: PN03M
HEX NUT M8-1.25
Price
N/A
3
Now: PW01M
FLAT WASHER 8MM
Price
N/A
4
WHEEL
5
SLEEVE
6
CAP SCREW M8-1.25 X 65
Price
N/A
7
STRAIN RELIEF
8
Now: PN08
HEX NUT 3/8-16
Price
N/A
9
LEVELING FOOT
10
Now: PN02
HEX NUT 5/16-18
Price
N/A
11
Now: PW04M
FLAT WASHER 10MM
Price
N/A
12
MOTOR BRACKET
13
DUST PORT
14
Now: PW02M
FLAT WASHER 5MM
Price
N/A
15
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
16
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
17
Now: PW02M
FLAT WASHER 5MM
Price
N/A
18
CABINET REAR COVER
19
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
20
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
Now: PCB11
CARRIAGE BOLT 5/16-18 X 1
Price
N/A
22
LOCK WASHER 10MM
Price
N/A
23
MOTOR BRACKET BOLT
24
MOTOR 1HP 120V 1-PH
Price
N/A
24-1
MOTOR FAN COVER
24-2
MOTOR FAN
24-3
CAPACITOR COVER
24-4
S CAPACITOR 200M 125V
24-5
MOTOR JUNCTION BOX
24-6
CENTRIFUGAL SWITCH 20MM 3450
24-7
CONTACT PLATE 20MM
24-8
BALL BEARING 6204ZZ
Price
N/A
24-9
BALL BEARING 6204ZZ
Price
N/A
25
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
26
Now: PVA38
V-BELT A38
Price
N/A
27
MOTOR PULLEY
28
SET SCREW M6-1 X 6
Price
N/A
29
SWITCH BOX
30
Now: D2751
Paddle Switch 125V/250V
Price
N/A
30-1
POWER LIGHT
31
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
32
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
33
SWITCH PLATE
34
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
35
Now: PW06M
FLAT WASHER 12MM
Price
N/A
36
SHAFT
37
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
38
Now: PW01M
FLAT WASHER 8MM
Price
N/A
39
Now: PN02M
HEX NUT M10-1.5
Price
N/A
40
Now: PW04M
FLAT WASHER 10MM
Price
N/A
41
Now: PN03M
HEX NUT M8-1.25
Price
N/A
42
Now: PN02M
HEX NUT M10-1.5
Price
N/A
43
Now: PW01M
FLAT WASHER 8MM
Price
N/A
44
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
45
TROLLEY WHEEL BOLT M10-1.5 X 15
46
TROLLEY WHEEL
47
BALL BEARING 6202ZZ
Price
N/A
48
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
49
SLEEVE
50
TROLLEY UNIVERSAL KIT
51
Now: PW04M
FLAT WASHER 10MM
Price
N/A
52
HEX BOLT M10-1.5 X 55
Price
N/A
53
BRACKET
54
TREADLE
55

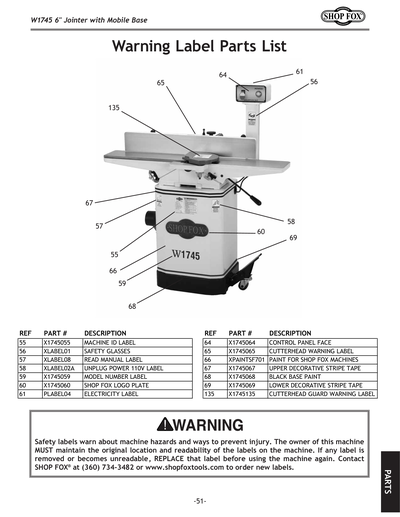

MACHINE ID LABEL NO-CSA V1
55V2
MACHINE ID LABEL CSA V2.07.12
56
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
57
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
58
DISCONNECT 110V 3.8W X 2H
Price
N/A
59
MODEL NUMBER LABEL
60
Now: D3377
Nameplate - Large
Price
N/A
61
ELECTRICITY 1.4W X 1.2H
Price
N/A
62
KNIFE JIG
62-1
ROD
62-2
KNIFE JIG FOOT
62-3
E-CLIP 9MM
Price
N/A
64
CONTROL PANEL FACE
65
CUTTERHEAD WARNING LABEL
67
UPPER DECORATIVE STRIPE TAPE
68
GLOSSY BLACK
Price
N/A
69
LOWER DECORATIVE STRIPE TAPE

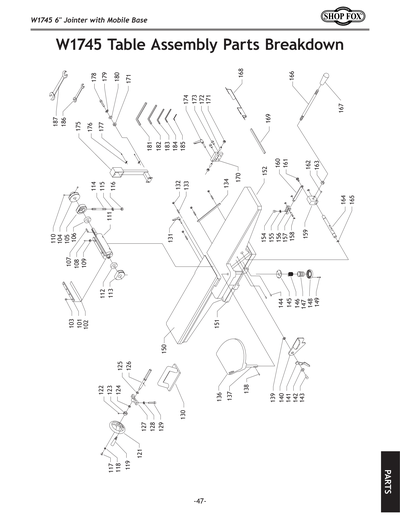

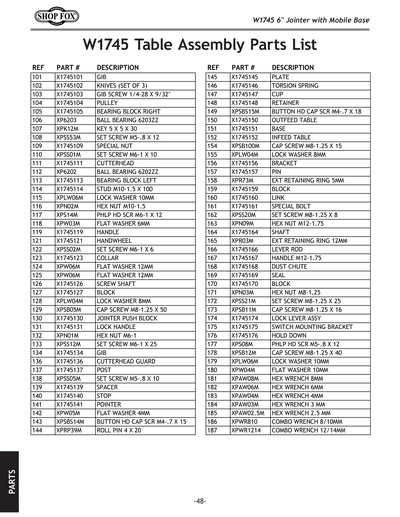

101
GIB
102
KNIVES 3PC
103
GIB SCREW 1/4-28 X 9/32"
104
PULLEY
105
BEARING BLOCK RIGHT
106
BALL BEARING 6203ZZ
Price
N/A
107
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
108
SET SCREW M5-.8 X 12
Price
N/A
109
CUTTERHEAD NUT M5
110
SET SCREW M6-1 X 10
Price
N/A
111
CUTTERHEAD 6" 3-KNIFE
Price
N/A
112
BALL BEARING 6202ZZ
Price
N/A
113
BEARING BLOCK LEFT
114
STUD-DE M10-1.5 X 100 25
115
LOCK WASHER 10MM
Price
N/A
116
Now: PN02M
HEX NUT M10-1.5
Price
N/A
117
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
118
Now: PW03M
FLAT WASHER 6MM
Price
N/A
119
HANDLE
121
HANDWHEEL
122
SET SCREW M6-1 X 6
Price
N/A
123
COLLAR
124
Now: PW06M
FLAT WASHER 12MM
Price
N/A
125
Now: PW06M
FLAT WASHER 12MM
Price
N/A
126
SCREW SHAFT
127
BLOCK
128
LOCK WASHER 8MM
Price
N/A
129
CAP SCREW M8-1.25 X 50
Price
N/A
130
JOINTER PUSH BLOCK
131
LOCK HANDLE
132
Now: PN01M
HEX NUT M6-1
Price
N/A
133
SET SCREW M6-1 X 25
Price
N/A
134
GIB
135
CUTTERHEAD GUARD WARNING LABEL
136
CUTTERHEAD GUARD
136A
COMPLETE CUTTERHEAD GUARD ASSEMBLY
137
POST
138
SET SCREW M5-.8 X 10
Price
N/A
139
SPACER
140
STOP
141
POINTER
142
Now: PW05M
FLAT WASHER 4MM
Price
N/A
143
BUTTON HD CAP SCR M4-.7 X 16
Price
N/A
144
ROLL PIN 4 X 20
Price
N/A
145
PLATE
146
TORSION SPRING
147
CUP
148
RETAINER
149
Now: PS01M
PHLP HD SCR M4-.7 X 18
Price
N/A
150
OUTFEED TABLE
151
BASE
152
INFEED TABLE
154
CAP SCREW M8-1.25 X 15
Price
N/A
155
LOCK WASHER 8MM
Price
N/A
156
BRACKET
157
PIN
158
Now: PR73M
EXT RETAINING RING 5MM
Price
N/A
159
BLOCK
160
LINK
161
LINK BOLT
162
SET SCREW M8-1.25 X 8
Price
N/A
163
Now: PN09M
HEX NUT M12-1.75
Price
N/A
164
SHAFT
165
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
166
LEVER ROD
167
HANDLE M12-1.75
168
DUST CHUTE
169
SEAL
170
BLOCK
171
Now: PN03M
HEX NUT M8-1.25
Price
N/A
172
SET SCREW M8-1.25 X 25
Price
N/A
173
CAP SCREW M8-1.25 X 16
Price
N/A
174
LOCK LEVER ASSY
175
SWITCH MOUNTING BRACKET
176
HOLD DOWN
177
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
178
CAP SCREW M8-1.25 X 40
Price
N/A
179
LOCK WASHER 10MM
Price
N/A
180
Now: PW04M
FLAT WASHER 10MM
Price
N/A
181
HEX WRENCH 8MM
Price
N/A
182
HEX WRENCH 6MM
Price
N/A
183
HEX WRENCH 4MM
Price
N/A
184
HEX WRENCH 3MM
Price
N/A
185
HEX WRENCH 2.5MM
Price
N/A
186
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
187
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
188

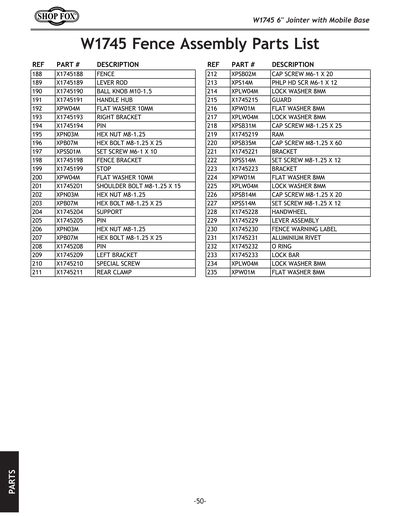

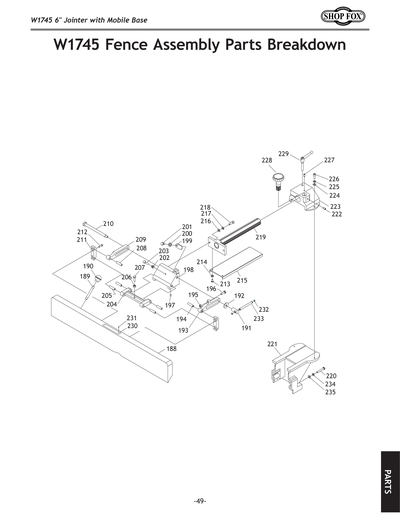

FENCE
189
LEVER ROD
190
BALL KNOB M10-1.5
191
HANDLE HUB
192
Now: PW04M
FLAT WASHER 10MM
Price
N/A
193
RIGHT BRACKET
194
PIN
195
Now: PN03M
HEX NUT M8-1.25
Price
N/A
196
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
197
SET SCREW M6-1 X 10
Price
N/A
198
FENCE BRACKET
199
STOP
200
Now: PW04M
FLAT WASHER 10MM
Price
N/A
201
SHOULDER BOLT M8-1.25 X 15
202
Now: PN03M
HEX NUT M8-1.25
Price
N/A
203
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
204
SUPPORT
205
PIN
206
Now: PN03M
HEX NUT M8-1.25
Price
N/A
207
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
208
PIN
209
LEFT BRACKET
210
FENCE BRACKET SCREW
211
REAR CLAMP
212
CAP SCREW M6-1 X 20
Price
N/A
213
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
214
LOCK WASHER 8MM
Price
N/A
215
GUARD
216
Now: PW01M
FLAT WASHER 8MM
Price
N/A
217
LOCK WASHER 8MM
Price
N/A
218
CAP SCREW M8-1.25 X 25
Price
N/A
219
RAM
220
CAP SCREW M8-1.25 X 60
Price
N/A
221
BRACKET
222
SET SCREW M8-1.25 X 12
Price
N/A
223
BRACKET
224
Now: PW01M
FLAT WASHER 8MM
Price
N/A
225
LOCK WASHER 8MM
Price
N/A
226
CAP SCREW M8-1.25 X 20
Price
N/A
227
SET SCREW M8-1.25 X 12
Price
N/A
228
HAND KNOB
229
LEVER ASSEMBLY
230
FENCE WARNING LABEL
231
ALUMINIUM RIVET
232
O-RING
233
LOCK BAR
234
LOCK WASHER 8MM
Price
N/A
235
Now: PW01M
FLAT WASHER 8MM
Price
N/A
236
LOCKING FOOT PEDAL ASSY
237
POWER CORD 16G X 3W 73"L
Price
N/A
238
POWER CORD STRAIN RELIEF
300
COMPLETE TABLE ASSY BOX 1
301
*DISCD*STYROFOAM FOR W1745 BOX 1 2PC
Item is no longer available
Price
N/A
302
COMPLETE STAND ASSY BOX 2
303
*DISCD*STYROFOAM W1745 STAND BOX 2 6PC
Item is no longer available
Price
N/A
304
*DISCD*CARTON FOR W1745 TABLE
Item is no longer available
Price
N/A
305
*DISCD*CARTON FOR W1745 STAND
Item is no longer available
Price
N/A
BAG1
HARDWARE BAG FOR STAND
BAG2
HARDWARE BAG FOR LOCKING FOOT PEDAL
BAG3
WRENCH BAG
MAN
MANUAL FOR W1745 01/06
