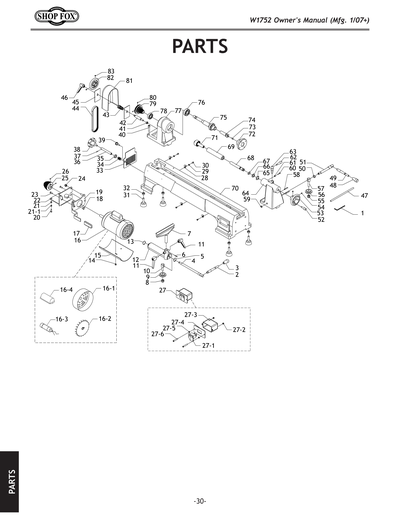

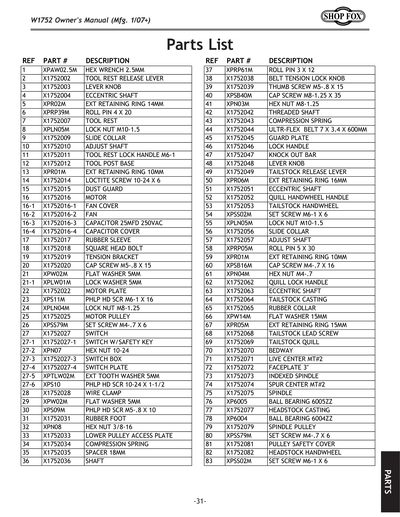

Parts for W1752 10" x 15" Benchtop Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HEX WRENCH 2.5MM
Price
N/A
2
TOOL REST RELEASE LEVER
3
LEVER KNOB
Item is no longer available
Price
N/A
4
ECCENTRIC SHAFT
5
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
6
ROLL PIN 4 X 20
Price
N/A
7
TOOL REST
8
LOCK NUT M10-1.5
Price
N/A
9
SLIDE COLLAR
10
ADJUST SHAFT
11
TOOL REST LOCK HANDLE M6-1 V1
11V2
TOOL REST LOCK HANDLE M6-1 V2.05.16
Item is no longer available
Price
N/A
12
TOOL POST BASE V1
12V2
TOOL POST BASE V2.05.16
Item is no longer available
Price
N/A
13
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
14
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
15
DUST GUARD
16
MOTOR 1/2HP 120V 1-PH
16-1
MOTOR FAN COVER
16-2
MOTOR FAN
16-3
S CAPACITOR 25M 250V
16-4
CAPACITOR COVER
Item is no longer available
Price
N/A
16-5
BALL BEARING 6202ZZ
Price
N/A
16-6
BALL BEARING 6200ZZ
Price
N/A
17
RUBBER SLEEVE
18
SQUARE BOLT M8-1.25 X 30
Item is no longer available
Price
N/A
19
TENSION BRACKET
20
CAP SCREW M5-.8 X 15
Price
N/A
21
Now: PW02M
FLAT WASHER 5MM
Price
N/A
21-1
LOCK WASHER 5MM
Price
N/A
22
MOTOR PLATE
Item is no longer available
Price
N/A
23
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
24
LOCK NUT M8-1.25
Price
N/A
25
MOTOR PULLEY
26
SET SCREW M4-.7 X 6
Price
N/A
27
Now: D2751
Paddle Switch 125V/250V
Price
N/A
27-1
SWITCH W/SAFETY KEY
27-2
Now: PN07
HEX NUT 10-24
Price
N/A
27-3
SWITCH BOX
Item is no longer available
Price
N/A
27-4
SWITCH PLATE
Item is no longer available
Price
N/A
27-5
EXT TOOTH WASHER 5MM
Price
N/A
27-6
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
28
WIRE CLAMP
29
Now: PW02M
FLAT WASHER 5MM
Price
N/A
30
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
31
RUBBER FOOT
32
Now: PN08
HEX NUT 3/8-16
Price
N/A
33
LOWER PULLEY ACCESS PLATE
34
COMPRESSION SPRING
35
SPACER 18MM
36
SHAFT
37
ROLL PIN 3 X 12
Price
N/A
38
BELT TENSION LOCK KNOB
39
THUMBSCREW M5-.8 X 15
40
CAP SCREW M8-1.25 X 35
Price
N/A
41
Now: PN03M
HEX NUT M8-1.25
Price
N/A
42
THREADED SHAFT
43
COMPRESSION SPRING
44
ULTR-FLEX BELT 7 X 3.4 X 600MM
45
GUARD PLATE
Item is no longer available
Price
N/A
46
LOCK HANDLE
47
KNOCK OUT BAR
48
LEVER KNOB
49
TAILSTOCK RELEASE LEVER
50
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
51
ECCENTRIC SHAFT
Item is no longer available
Price
N/A
52
QUILL HANDWHEEL HANDLE V1
52V2
TAILSTOCK HANDWHEEL HANDLE V2.06.16
Item is no longer available
Price
N/A
53
TAILSTOCK HANDWHEEL V1
53V2
TAILSTOCK HANDWHEEL V2.06.16
Item is no longer available
Price
N/A
54
SET SCREW M6-1 X 6
Price
N/A
55
LOCK NUT M10-1.5
Price
N/A
56
SLIDE COLLAR
57
ADJUST SHAFT
58
ROLL PIN 5 X 30
Price
N/A
59
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
60
CAP SCREW M4-.7 X 16
Price
N/A
61
Now: PN04M
HEX NUT M4-.7
Price
N/A
62
QUILL LOCK HANDLE
63
ECCENTRIC SHAFT
64
TAILSTOCK CASTING
65
RUBBER COLLAR
66
Now: PW14M
FLAT WASHER 14MM
Price
N/A
67
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
68
TAILSTOCK LEAD SCREW
69
TAILSTOCK QUILL
Item is no longer available
Price
N/A
70
BEDWAY
Item is no longer available
Price
N/A
71
LIVE CENTER MT#2 V1
71-1
LIVE CENTER POINT 11MM
71V2
LIVE CENTER MT#2 V2.06.16
72
FACEPLATE 3"
73
SPUR CENTER POINT 8MM
74
SPUR CENTER MT#2 V1
74V2
SPUR CENTER MT#2 V2.06.16
Item is no longer available
Price
N/A
75
SPINDLE
76
BALL BEARING 6005ZZ
Price
N/A
77
HEADSTOCK CASTING
Item is no longer available
Price
N/A
78
BALL BEARING 6004ZZ
Price
N/A
79
SPINDLE PULLEY
80
SET SCREW M4-.7 X 6
Price
N/A
81
PULLEY SAFETY COVER
82
HEADSTOCK HANDWHEEL
83
SET SCREW M6-1 X 6
Price
N/A
87
MACHINE ID LABEL NO-CSA V1
Item is no longer available
Price
N/A
87V2
MACHINE ID LABEL CSA V2.08.12

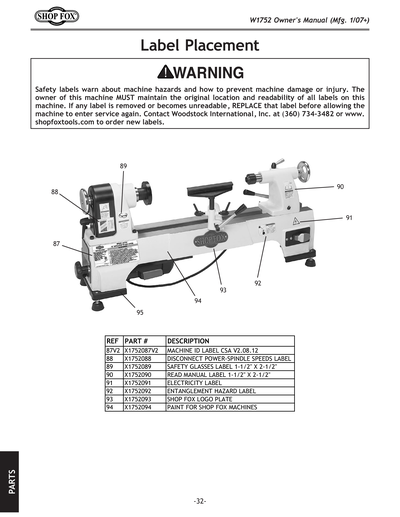

88
DISCONNECT POWER-SPINDLE SPEEDS LABEL
89
SAFETY GLASSES LABEL 1-1/2" X 2-1/2"
Item is no longer available
Price
N/A
90
READ MANUAL LABEL 1-1/2" X 2-1/2"
Item is no longer available
Price
N/A
91
ELECTRICITY LABEL
Item is no longer available
Price
N/A
92
ENTANGLEMENT HAZARD LABEL
Item is no longer available
Price
N/A
93
Now: D3375
Shop Fox Nameplate - Small
Price
N/A
94
SHOP FOX OFF WHITE REF G9970 G9971
Price
N/A
95
GLOSSY BLACK
Price
N/A
96
CARTON FOR W1752
Item is no longer available
Price
N/A
97
STYROFOAM FOR W1752
Item is no longer available
Price
N/A
98
POWER CORD 18G 3W 72" 5-15P
Item is no longer available
Price
N/A
99
STRAIN RELIEF 5/16" TYPE-1
Item is no longer available
Price
N/A
MAN
W1752 MANUAL NO CSA V1.01.07-06.09
Item is no longer available
Price
N/A
MANV2
W1752 MANUAL CSA V2.07.09
Item is no longer available
Price
N/A
