Parts for W1758 - 16" x 46" 2 HP Variable-Speed Wood Lathe

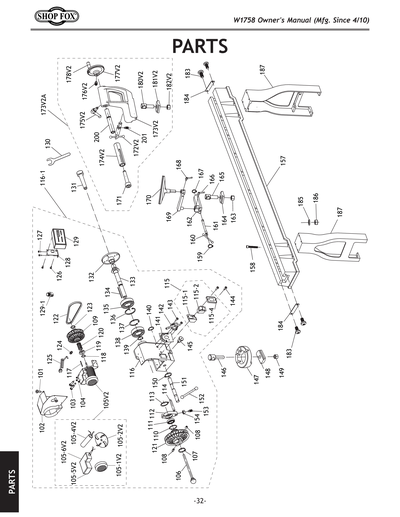

Part Diagram for W1758
Part Diagram for W1758
Part Diagram for W1758
Part Diagram for W1758
Part Diagram for W1758
Part Diagram for W1758

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

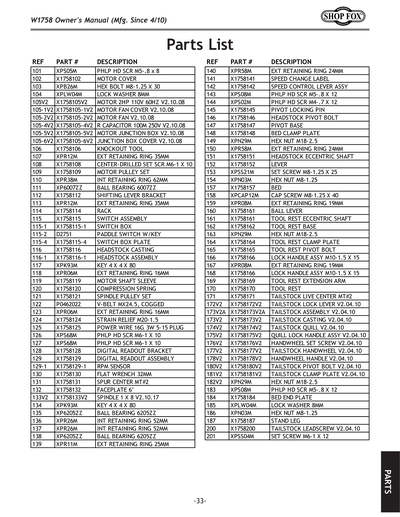

Ref #
Part #
Description
101
PHLP HD SCR M5-.8 X 8
Price
N/A
102
MOTOR COVER
Price
$29.50
103
HEX BOLT M8-1.25 X 30
Price
N/A
104
LOCK WASHER 8MM
Price
N/A
105-1V2
MOTOR FAN COVER V2.10.08
Price
$23.40
105-2V2
MOTOR FAN V2.10.08
Price
$3.70
105-3V2
WOOD SCREW 3/16-18 X 3/4" V2.10.08
Price
$3.25
105-4
*DISCD*S CAPACITOR 300M 150V V1.06.07
Price
$21.70
105-4V2
R CAPACITOR 100M 250V 2 X 3-3/4 V2.01.09
Price
N/A
105-5
*DISCD*R CAPACITOR 80M 300V V1.06.07
Price
$21.70
105-5V2
MOTOR JUNCTION BOX V2.10.08
Price
$7.95
105-6V2
JUNCTION BOX COVER V2.10.08
Price
$6.15
105V2
MOTOR 2HP 110V 1-PH V2.01.09
Price
N/A
106
KNOCKOUT TOOL
Price
$5.45
106-6V2
JUNCTION BOX COVER V2.10.08
Price
N/A
107
EXT RETAINING RING 35MM
Price
N/A
108
CENTER-DRILLED SET SCR M6-1 X 10
Price
$1.90
109
MOTOR PULLEY SET
Price
$77.10
110
INT RETAINING RING 62MM
Price
N/A
111
BALL BEARING 6007ZZ
Price
N/A
112
SHIFTING LEVER BRACKET
Price
N/A
113
EXT RETAINING RING 35MM
Price
N/A
114
RACK
Price
$6.65
115
SWITCH ASSEMBLY
Price
$26.60
115-1
SWITCH BOX
Price
N/A
115-2
Paddle Switch 125V/250V
Price
N/A
115-4
SWITCH BOX PLATE
Price
$4.05
116
HEADSTOCK CASTING
Price
$327.45
116-1
HEADSTOCK ASSEMBLY
Price
$904.05
117
KEY 4 X 4 X 80
Price
N/A
118
EXT RETAINING RING 16MM
Price
N/A
119
MOTOR SHAFT SLEEVE
Price
$9.75
120
COMPRESSION SPRING
Item is no longer available
Price
N/A
121
SPINDLE PULLEY SET
Price
$61.85
122
V-BELT MX24.5, COGGED
Price
N/A
123
EXT RETAINING RING 16MM
Price
N/A
124
STRAIN RELIEF M20-1.5
Price
$1.90
125
POWER CORD 16G X 3W 73"L
Price
N/A
126
PHLP HD SCR M6-1 X 10
Price
N/A
127
PHLP HD SCR M6-1 X 10
Price
N/A
128
DIGITAL READOUT BRACKET
Price
N/A
129
DIGITAL READOUT ASSEMBLY
Price
$80.00
129-1
RPM SENSOR
Price
$42.85
130
FLAT WRENCH 32MM
Price
N/A
131
SPUR CENTER MT#2
Price
N/A
132
FACEPLATE 6" (STEEL) V2.02.23
Price
N/A
132V2
FACEPLATE 6" (STEEL) V2.02.23
Price
N/A
133
SPINDLE 1 X 8" V2.10.17
Price
N/A
133V2
SPINDLE 1 X 8" V2.10.17
Price
$69.50
134
KEY 4 X 4 X 80
Price
N/A
135
BALL BEARING 6205ZZ
Price
N/A
136
INT RETAINING RING 52MM
Price
N/A
137
INT RETAINING RING 52MM
Price
N/A
138
BALL BEARING 6205ZZ
Price
N/A
139
EXT RETAINING RING 25MM
Price
N/A
140
EXT RETAINING RING 24MM
Price
N/A
141
SPEED CHANGE LABEL
Price
$1.90
142
SPEED CONTROL LEVER ASSY
Price
$37.40
143
PHLP HD SCR M5-.8 X 12
Price
N/A
144
PHLP HD SCR M4-.7 X 12
Price
N/A
145
PIVOT LOCKING PIN
Price
$6.90
146
HEADSTOCK PIVOT BOLT
Price
$2.15
147
PIVOT BASE
Price
$18.40
148
BED CLAMP PLATE
Price
$15.85
149
HEX NUT M18-2.5
Price
N/A
150
EXT RETAINING RING 24MM
Price
N/A
151
HEADSTOCK ECCENTRIC SHAFT
Price
N/A
152
LEVER
Price
$5.45
153
SET SCREW M8-1.25 X 25
Price
N/A
154
HEX NUT M8-1.25
Price
N/A
157
BED
Price
$964.25
158
CAP SCREW M8-1.25 X 40
Price
N/A
159
EXT RETAINING RING 19MM
Price
N/A
160
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
161
***SEE EXT. DESCRIPTION***
Price
$23.60
162
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
162V2
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
163
HEX NUT M18-2.5
Price
N/A
164
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
165
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
166
LOCK HANDLE ASSY M10-1.5 X 15
Price
$10.85
167
EXT RETAINING RING 19MM
Price
N/A
168
LOCK HANDLE ASSY M10-1.5 X 15
Price
N/A
169
*DISCD*TOOL REST EXTENSION ARM V1
Item is no longer available
Price
N/A
169V2
*DISCD*TOL REST EXT. ARM (1") V2.10.17
Item is no longer available
Price
N/A
170
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
170V2
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
171
TAILSTOCK LIVE CENTER MT#2
Price
N/A
172
*DISCD*TAILSTOCK LOCK LEVER V1.12.05
Price
$9.50
172V2
TAILSTOCK LOCK LEVER V2.04.10
Price
$7.50
173V2
TAILSTOCK CASTING V2.04.10
Price
$102.20
173V2A
TAILSTOCK ASSEMBLY V2.04.10
Price
$186.20
174
*DISCD*TAILSTOCK QUILL V1.12.05
Item is no longer available
Price
N/A
174V2
TAILSTOCK QUILL V2.04.10
Price
$22.45
175V2
QUILL LOCK HANDLE ASSY V2.04.10
Price
$8.65
176V2
HANDWHEEL SET SCREW V2.04.10
Price
$1.90
177V2
TAILSTOCK HANDWHEEL V2.04.10
Price
$10.85
178
HANDWHEEL HANDLE V2.04.10
Price
N/A
178V2
HANDWHEEL HANDLE V2.04.10
Price
$6.50
179
EXT RETAINING RING 10MM
Price
N/A
180V2
TAILSTOCK PIVOT BOLT V2.04.10
Price
N/A
181V2
TAILSTOCK CLAMP PLATE V2.04.10
Price
$5.20
182
HEX NUT M10-1.5
Price
N/A
182V2
HEX NUT M18-2.5
Price
N/A
183
PHLP HD SCR M5-.8 X 12
Price
N/A
184
BED END PLATE
Price
$2.30
185
LOCK WASHER 8MM
Price
N/A
186
HEX NUT M8-1.25
Price
N/A
187
STAND LEG
Price
$378.45
188
STAND LEG
Price
N/A

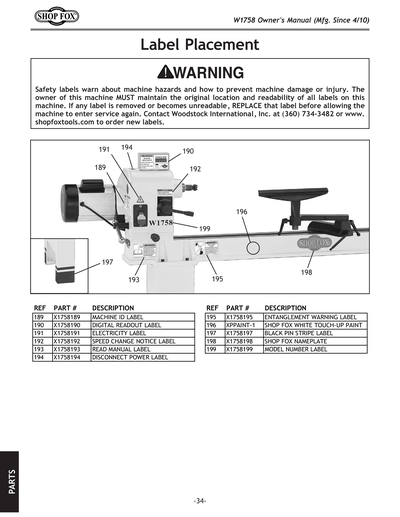

189
MACHINE ID LABEL
Price
$16.40
190
DIGITAL READOUT LABEL
Price
$2.70
191
ELECTRICITY 1.4W X 1.2H
Price
N/A
192
SPEED CHANGE NOTICE LABEL
Price
$1.25
193
READ MANUAL LABEL
Price
$1.25
194
DISCONNECT POWER LABEL
Price
$1.25
195
ENTANGLEMENT WARNING LABEL
Price
$1.25
196
SHOP FOX WHITE M1006
Price
N/A
198
SHOP FOX NAMEPLATE
Price
$7.60
199
MODEL NUMBER LABEL
Price
$2.50
200
TAILSTOCK LEADSCREW V2.04.10
Price
$50.05
201
SET SCREW M6-1 X 12
Price
N/A
202
CARTON FOR W1758 LEGS
Price
N/A
203
STYROFOAM-SMALL
Price
N/A
204
ECCENTRIC BUSHING
Price
N/A
205
SLIDE BUSHING
Price
N/A
206
LOCK WASHER 5MM
Price
N/A
207
TOOL REST BASE PLATE
Price
N/A
300
CARTON FOR W1758 LATHE
Price
$57.20
301
STYROFOAM-LARGE
Price
$66.90
302
CARTON FOR W1758 LEGS
Price
$21.95
303
STYROFOAM-SMALL
Price
$24.45
BOX2
COMPLETE STAND ASSEMBLY BOX 2
Price
$427.35
KIT
UPGRADE TOOL REST KIT FOR G0462/W1758
Price
N/A
MAN
MANUAL FOR W1758 04/10
Price
$16.40
