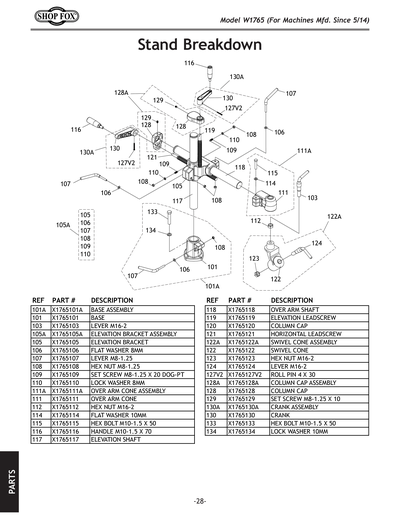

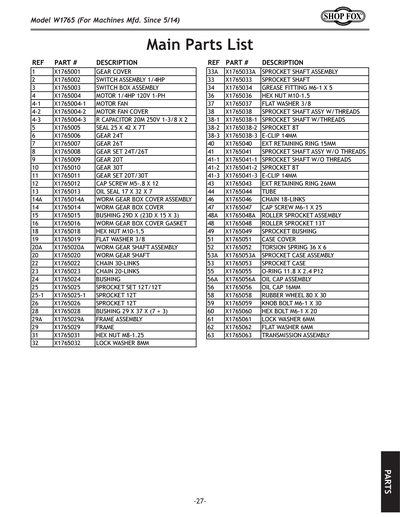

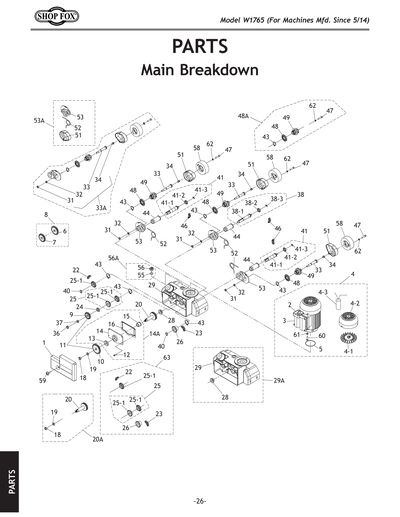

Parts for W1765 1/4 HP 4-Speed 3-Roller Power Feeder, Single-Phase

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
GEAR COVER
2
SWITCH ASSEMBLY 1/4HP
3
SWITCH BOX ASSEMBLY
4
MOTOR 1/4HP 120V 1-PH
4-1
MOTOR FAN
Price
N/A
4-2
MOTOR FAN COVER
Price
N/A
4-3
R CAPACITOR 20M 250V 1-3/16 X 2-1/8
5
SEAL 25 X 42 X 7T
6
GEAR 24T
7
GEAR 26T
8
GEAR SET 24T/26T
9
***USE P4176517***
10
GEAR 30T
11
GEAR SET 20T/30T
12
CAP SCREW M5-.8 X 12
Price
N/A
13
OIL SEAL 17 X 32 X 7
14
WORM GEAR BOX COVER
14A
WORM GEAR BOX COVER ASSEMBLY
15
BUSHING 29D X (23D X 15 X 3)
16
WORM GEAR BOX COVER GASKET
18
Now: PN02M
HEX NUT M10-1.5
Price
N/A
19
Now: PW02
FLAT WASHER 3/8
Price
N/A
20
WORM GEAR SHAFT
Price
N/A
20A
WORM GEAR SHAFT ASSEMBLY
22
CHAIN 30-LINKS
23
CHAIN 22S
Price
N/A
24
BUSHING
Price
N/A
25
DOUBLE SPROCKET 12T
Price
N/A
25-1
DOUBLE SPROCKET 12T
Price
N/A
26
SPROCKET 12T
28
BUSHING 29 X 37 X (7 + 3)
Price
N/A
29
FRAME
29A
FRAME ASSEMBLY
31
Now: PN03M
HEX NUT M8-1.25
Price
N/A
32
LOCK WASHER 8MM
Price
N/A
33
SPROCKET SHAFT
33A
SPROCKET SHAFT ASSEMBLY
Price
N/A
34
GREASE FITTING M6-1 X 5
Price
N/A
36
Now: PN02M
HEX NUT M10-1.5
Price
N/A
37
Now: PW02
FLAT WASHER 3/8
Price
N/A
38
SPROCKET SHAFT ASSY W/THREADS
38-1
SPROCKET SHAFT W/THREADS
Price
N/A
38-2
SPROCKET 8T
38-3
E-CLIP 14MM
Price
N/A
40
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
41
SPROCKET SHAFT ASSY W/O THREADS
41-1
SPROCKET SHAFT W/O THREADS
41-2
SPROCKET 8T
Price
N/A
41-3
E-CLIP 14MM
Price
N/A
43
Now: PR58M
EXT RETAINING RING 24MM
Price
N/A
44
TUBE
Price
N/A
46
CHAIN 18-LINKS
47
CAP SCREW M6-1 X 25
Price
N/A
48
ROLLER SPROCKET 13T
48A
ROLLER SPROCKET ASSEMBLY
49
SPROCKET BUSHING
51
CASE COVER
52
TORSION SPRING 36 X 6
53
SPROCKET CASE
Price
N/A
53A
SPROCKET CASE ASSEMBLY
55
O-RING 11.8 X 2.4 P12
Price
N/A
56
OIL CAP 16MM
56A
OIL CAP ASSEMBLY
58
Now: D3871
Extra Roller for W1765 Power Feeder
Price
N/A
59
KNOB BOLT M6-1 X 30
60
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
61
LOCK WASHER 6MM
Price
N/A
63
TRANSMISSION ASSEMBLY
Price
N/A
101
BASE
101A
BASE ASSEMBLY
102
Now: PW01M
FLAT WASHER 8MM
Price
N/A
103
LEVER M16-2
105
ELEVATION BRACKET
105A
ELEVATION BRACKET ASSEMBLY
106
Now: PW01M
FLAT WASHER 8MM
Price
N/A
107
LEVER M8-1.25
108
HEX NUT M8-1.25
109
SET SCREW M8-1.25 X 20 DOG-PT
Price
N/A
110
LOCK WASHER 8MM
Price
N/A
111
OVER ARM CONE
111A
OVER ARM CONE ASSEMBLY
112
Now: PN13M
HEX NUT M16-2
Price
N/A
113
CAP SCREW M6-1 X 25
Price
N/A
114
Now: PW04M
FLAT WASHER 10MM
Price
N/A
115
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
116
***USE P4176649***
117
ELEVATION SHAFT V1
117V2
ELEVATING SHAFT V2.11.16
Price
N/A
118
OVER ARM SHAFT V1
118V2
OVER ARM SHAFT V2.11.16
119
***USE P4176715***
120
COLUMN CAP
121
HORIZONTAL LEADSCREW
122
SWIVEL CONE
122A
SWIVEL CONE ASSEMBLY
123
Now: PN13M
HEX NUT M16-2
Price
N/A
124
LEVER M16-2
Price
N/A
127
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
127V2
ROLL PIN 4 X 30
Price
N/A
128
COLUMN CAP V1
128A
COLUMN CAP ASSEMBLY V1
128AV2
COLUMN CAP ASSEMBLY V2.11.16
128V2
COLUMN CAP V2.11.16
129
SET SCREW M8-1.25 X 10
Price
N/A
130
CRANK
130A
CRANK ASSEMBLY
131
LOCK WASHER 4MM
Price
N/A
132
Now: PN04M
HEX NUT M4-.7
Price
N/A
133
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
134
LOCK WASHER 10MM
Price
N/A
135
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
136
BUSHING
200
MACHINE ID LABEL CSA V2.10.12
Price
N/A
200V2
MACHINE ID LABEL CSA V2.10.12
201

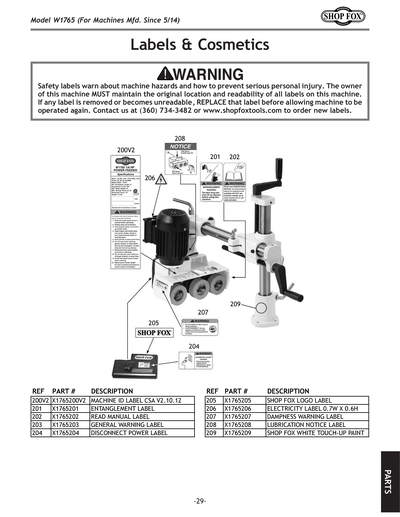

ENTANGLEMENT LABEL
202
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
203
MACHINE ID LABEL CSA V2.10.12
Price
N/A
204
DISCONNECT POWER LABEL
205
SHOP FOX LOGO LABEL
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
DAMPNESS WARNING LABEL
208
LUBRICATION NOTICE LABEL
209
SHOP FOX WHITE M1006
Price
N/A
300
CARTON FOR W1765
301
STYROFOAM FOR W1765
MAN
MANUAL FOR W1765
MANV2
MANUAL W1765 MFD-12.13+ V2.04.14
TEMPLATE
MOUNTING TEMPLATE STICKER
