Parts for W1770 21" 5 HP Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

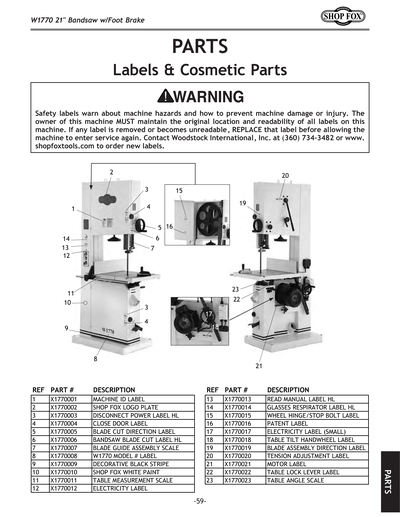

1
MACHINE ID LABEL
2
Now: D3376
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
3
DISCONNECT POWER LABEL HL
4
DOOR CLOSED BLADE 2W X 3.3H
Price
N/A
5
BLADE CUT DIRECTION LABEL
Price
N/A
6
BANDSAW BLADE CUT LABEL HL
8
MODEL NUMBER LABEL
9
DECORATIVE BLACK STRIPE
10
SHOP FOX WHITE M1006
Price
N/A
11
TABLE MEASUREMENT SCALE
12
ELECTRICITY 1.4W X 1.2H
Price
N/A
13
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
14
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
15
WHEEL HINGE/STOP BOLT LABEL
16
PATENT LABEL
17
ELECTRICITY 0.7W X 0.6H
Price
N/A
18
TABLE TILT HANDWHEEL LABEL
19
BLADE ASSEMBLY DIRECTION LABEL
20
TENSION ADJUSTMENT LABEL
22
TABLE LOCK LEVER LABEL
23
TABLE ANGLE SCALE

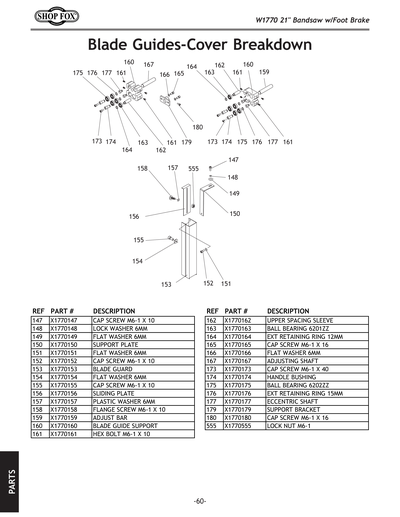

147
CAP SCREW M6-1 X 10
Price
N/A
148
LOCK WASHER 6MM
Price
N/A
149
Now: PW03M
FLAT WASHER 6MM
Price
N/A
150
SUPPORT PLATE
151
Now: PW03M
FLAT WASHER 6MM
Price
N/A
152
CAP SCREW M6-1 X 10
Price
N/A
153
BLADE GUARD
154
Now: PW03M
FLAT WASHER 6MM
Price
N/A
155
CAP SCREW M6-1 X 10
Price
N/A
156
SLIDING PLATE
157
PLASTIC WASHER 6MM
158
FLANGE SCREW M6-1 X 10
Price
N/A
159
ADJUST BAR (ROUND) V2.10.05
Price
N/A
160
BLADE GUIDE SUPPORT
161
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
162
UPPER SPACING SLEEVE
163
BALL BEARING 6201ZZ
Price
N/A
164
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
165
CAP SCREW M6-1 X 16
Price
N/A
166
Now: PW03M
FLAT WASHER 6MM
Price
N/A
167
ADJUSTING SHAFT V2.10.04
Price
N/A
173
CAP SCREW M6-1 X 40
Price
N/A
174
HANDLE BUSHING
175
BALL BEARING 6202ZZ
Price
N/A
176
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
177
ECCENTRIC SHAFT
179
SUPPORT BRACKET
180
CAP SCREW M6-1 X 16
Price
N/A

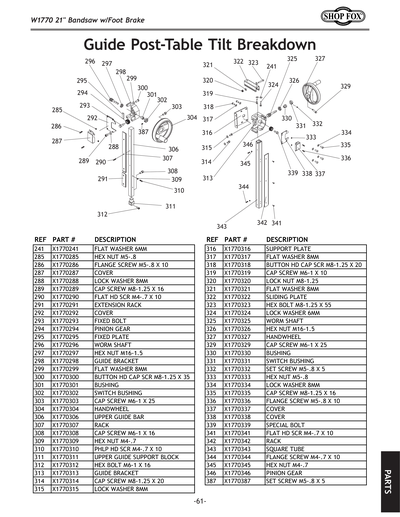

241
Now: PW03M
FLAT WASHER 6MM
Price
N/A
285
Now: PN06M
HEX NUT M5-.8
Price
N/A
286
FLANGE SCREW M5-.8 X 10
Price
N/A
287
COVER
288
LOCK WASHER 8MM
Price
N/A
289
CAP SCREW M8-1.25 X 16
Price
N/A
290
FLAT HD SCR M4-.7 X 10
Price
N/A
291
EXTENSION RACK
292
COVER
293
FIXED BOLT 12 X 43 X 10MM 1.5P
294
PINION GEAR
295
FIXED PLATE
296
WORM SHAFT
297
Now: PN05M
HEX NUT M16-1.5
Price
N/A
298
GUIDE BRACKET
299
Now: PW01M
FLAT WASHER 8MM
Price
N/A
300
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
301
BUSHING
302
SWITCH BUSHING
303
CAP SCREW M6-1 X 25
Price
N/A
304
HANDWHEEL
306
UPPER GUIDE BAR
307
RACK
Price
N/A
308
CAP SCREW M6-1 X 16
Price
N/A
309
Now: PN04M
HEX NUT M4-.7
Price
N/A
310
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
311
UPPER GUIDE SUPPORT BLOCK
312
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
313
GUIDE BRACKET 16MM V2.06.09
Price
N/A
314
CAP SCREW M8-1.25 X 20
Price
N/A
315
LOCK WASHER 8MM
Price
N/A
316
SUPPORT PLATE
317
Now: PW01M
FLAT WASHER 8MM
Price
N/A
318
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
319
CAP SCREW M6-1 X 10
Price
N/A
320
LOCK NUT M8-1.25
Price
N/A
321
Now: PW01M
FLAT WASHER 8MM
Price
N/A
322
SLIDING PLATE
323
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
324
LOCK WASHER 6MM
Price
N/A
325
WORM SHAFT
326
Now: PN05M
HEX NUT M16-1.5
Price
N/A
327
HANDWHEEL
329
CAP SCREW M6-1 X 25
Price
N/A
330
BUSHING
331
SWITCH BUSHING
332
SET SCREW M5-.8 X 5
Price
N/A
333
Now: PN06M
HEX NUT M5-.8
Price
N/A
334
LOCK WASHER 8MM
Price
N/A
335
CAP SCREW M8-1.25 X 16
Price
N/A
336
FLANGE SCREW M5-.8 X 10
Price
N/A
337
COVER
338
COVER
339
GUIDE BRACKET BOLT 12 X 43 X M10-1.5
341
FLAT HD SCR M4-.7 X 10
Price
N/A
342
RACK
343
SQUARE TUBE
344
FLANGE SCREW M4-.7 X 10
Price
N/A
345
Now: PN04M
HEX NUT M4-.7
Price
N/A
346
PINION GEAR
387
SET SCREW M5-.8 X 5
Price
N/A
447
NYLON PIECE
455V2
FENCE
Price
N/A

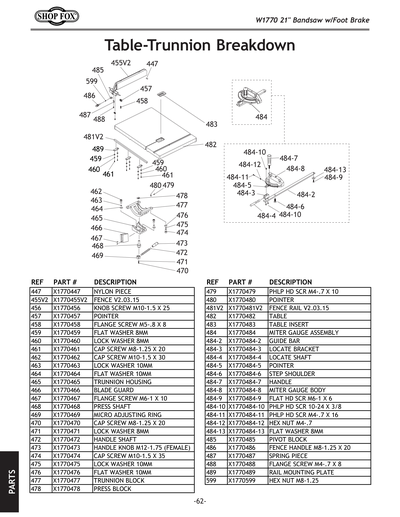

456
KNOB SCREW M10-1.5 X 25
Price
N/A
457
POINTER
458
FLANGE SCREW M5-.8 X 8
Price
N/A
459
Now: PW01M
FLAT WASHER 8MM
Price
N/A
460
LOCK WASHER 8MM
Price
N/A
461
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
462
CAP SCREW M10-1.5 X 30
Price
N/A
463
LOCK WASHER 10MM
Price
N/A
464
Now: PW04M
FLAT WASHER 10MM
Price
N/A
465
TRUNNION HOUSING
466
BLADE GUARD
467
FLANGE SCREW M6-1 X 10
Price
N/A
468
PRESS SHAFT
469
MICRO ADJUSTING RING
470
CAP SCREW M8-1.25 X 20
Price
N/A
471
LOCK WASHER 8MM
Price
N/A
472
HANDLE SHAFT
473
FEMALE HANDLE KNOB M12-1.75
474
CAP SCREW M10-1.5 X 35
Price
N/A
475
LOCK WASHER 10MM
Price
N/A
476
Now: PW04M
FLAT WASHER 10MM
Price
N/A
477
TRUNNION BLOCK
478
PRESS BLOCK
479
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
480
POINTER
481
FENCE RAIL V1
481V2
FENCE RAIL V2.03.15
482
TABLE
483
TABLE INSERT
484
MITER GAUGE ASSEMBLY
484-10
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
484-11
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
484-12
Now: PN04M
HEX NUT M4-.7
Price
N/A
484-13
Now: PW01M
FLAT WASHER 8MM
Price
N/A
484-2
MITER GAUGE ASSEMBLY
Price
N/A
484-3
MITER GAUGE ASSEMBLY
Price
N/A
484-4
MITER GAUGE ASSEMBLY
Price
N/A
484-5
MITER GAUGE ASSEMBLY
Price
N/A
484-6
MITER GAUGE ASSEMBLY
Price
N/A
484-7
MITER GAUGE ASSEMBLY
Price
N/A
484-8
MITER GAUGE ASSEMBLY
Price
N/A
484-9
Now: PFH9M
FLAT HD SCR M6-1 X 6
Price
N/A
485
PIVOT BLOCK
486
FENCE HANDLE M8-1.25 X 20
487
SPRING PIECE
488
FLANGE SCREW M4-.7 X 8
Price
N/A
489
RAIL MOUNTING PLATE

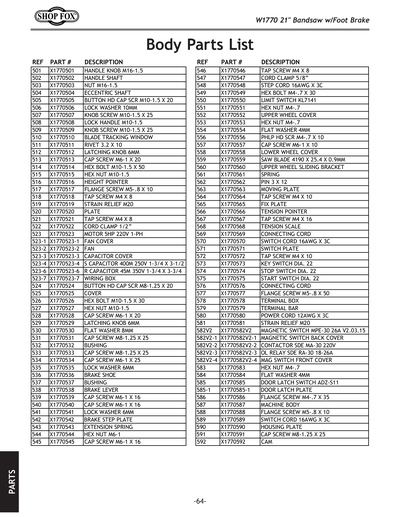

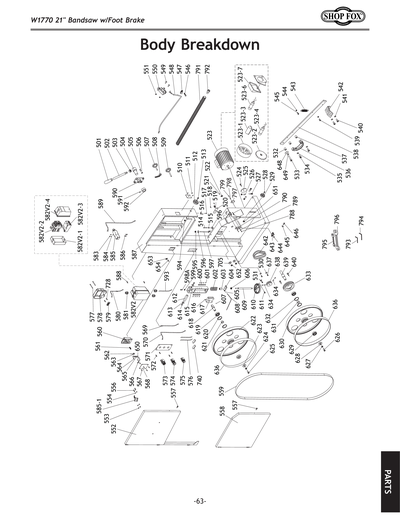

501
HANDLE KNOB M16-1.5
502
HANDLE SHAFT
503
NUT M16-1.5
504
ECCENTRIC SHAFT
505
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
506
LOCK WASHER 10MM
Price
N/A
507
KNOB SCREW M10-1.5 X 25
508
LOCK HANDLE M10-1.5
509
KNOB SCREW M10-1.5 X 25
510
BLADE TRACKING WINDOW
511
RIVET 3.2 X 10
512
LATCHING KNOB 6MM
513
CAP SCREW M6-1 X 20
Price
N/A
514
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
515
Now: PN02M
HEX NUT M10-1.5
Price
N/A
516
HEIGHT POINTER
517
FLANGE SCREW M5-.8 X 10
Price
N/A
518
TAP SCREW M4 X 8
Price
N/A
519
STRAIN RELIEF M20
520
PLATE
521
TAP SCREW M4 X 8
Price
N/A
522
CORD CLAMP 1/2
523
MOTOR 5HP 220V 1PH XU JIAN
523-1
MOTOR FAN COVER
Price
N/A
523-2
FAN
523-3
CAPACITOR COVER
523-4
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
523-6
R CAPACITOR 45M 350V 1-3/4 X 3-3/4
523-7
WIRING BOX
524
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
525
COVER
526
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
527
Now: PN02M
HEX NUT M10-1.5
Price
N/A
528
CAP SCREW M6-1 X 20
Price
N/A
529
LATCHING KNOB 6MM
530
Now: PW01M
FLAT WASHER 8MM
Price
N/A
531
CAP SCREW M8-1.25 X 25
Price
N/A
532
BUSHING
533
CAP SCREW M8-1.25 X 25
Price
N/A
534
CAP SCREW M6-1 X 25
Price
N/A
535
LOCK WASHER 6MM
Price
N/A
536
BRAKE SHOE
537
BUSHING
538
BRAKE LEVER
539
CAP SCREW M6-1 X 16
Price
N/A
540
CAP SCREW M6-1 X 16
Price
N/A
541
LOCK WASHER 6MM
Price
N/A
542
BRAKE STEP PLATE
543
EXTENSION SPRING
544
Now: PN01M
HEX NUT M6-1
Price
N/A
545
CAP SCREW M6-1 X 16
Price
N/A
546
TAP SCREW M4 X 8
Price
N/A
547
CORD CLAMP 5/8
548
STEP CORD 16AWG X 3C
549
Now: PB41M
HEX BOLT M4-.7 X 30
Price
N/A
550
LIMIT SWITCH KL7141
551
Now: PN04M
HEX NUT M4-.7
Price
N/A
552
UPPER WHEEL COVER
552A
UPPER WHEEL COVER W/LABELS
553
Now: PN04M
HEX NUT M4-.7
Price
N/A
554
Now: PW05M
FLAT WASHER 4MM
Price
N/A
555
LOCK NUT M6-1
Price
N/A
556
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
557
CAP SCREW M6-1 X 10
Price
N/A
558
LOWER WHEEL COVER
558A
LOWER WHEEL COVER W/LABELS
559
SAW BLADE 4190 X 25.4 X 0.9MM
560
UPPER WHEEL SLIDING BRACKET
561
SPRING
562
PIN 3 X 12
563
MOVING PLATE
564
TAP SCREW M4 X 10
Price
N/A
565
FIX PLATE
566
TENSION POINTER
567
TAP SCREW M4 X 16
Price
N/A
568
TENSION SCALE
569
CONNECTING CORD
570
SWITCH CORD 16AWG X 3C
571
SWITCH PLATE
572
TAP SCREW M4 X 10
Price
N/A
573
***USE P0514X041***
Price
N/A
574
E-STOP BUTTON 250V 10A
Price
N/A
575
START SWITCH DIA. 22
576
CONNECTING CORD
577
FLANGE SCREW M5-.8 X 50
Price
N/A
578
TERMINAL BOX
Price
N/A
579
TERMINAL BAR
580
POWER CORD 12AWG X 3C
581
STRAIN RELIEF M20
582
MAGNETIC SWITCH MPE-18 22A
582-1
*DISCD*MAGNETIC SWITCH BACK COVER
Item is no longer available
Price
N/A
582-2
CONTACTOR SDE MA-18 220V
582-3
OL RELAY SDE RA-30 18-26A V2.11.10
Price
N/A
582-4
*DISCD*MAG SWITCH FRONT COVER
Item is no longer available
Price
N/A
582V2
MAGNETIC SWITCH MPE-30 26A V2.03.15
582V2-1
MAGNETIC SWITCH BACK COVER
582V2-2
CONTACTOR SDE MA-30 220V
582V2-3
***USE P0636X105-3V2***
Price
N/A
582V2-4
MAG SWITCH FRONT COVER
583
Now: PN04M
HEX NUT M4-.7
Price
N/A
584
Now: PW05M
FLAT WASHER 4MM
Price
N/A
585
DOOR LATCH SWITCH ADZ-S11
585-1
DOOR LATCH PLATE
586
FLANGE SCREW M4-.7 X 35
Price
N/A
587
MACHINE BODY
588
FLANGE SCREW M5-.8 X 10
Price
N/A
589
SWITCH CORD 16AWG X 3C
590
HOUSING PLATE
591
CAP SCREW M8-1.25 X 25
Price
N/A

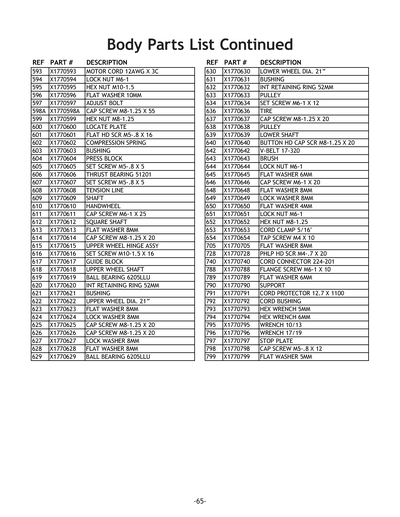

592
CAM
593
MOTOR CORD 12AWG X 3C
594
LOCK NUT M6-1
Price
N/A
595
Now: PN02M
HEX NUT M10-1.5
Price
N/A
596
Now: PW04M
FLAT WASHER 10MM
Price
N/A
597
ADJUST BOLT 20 X 30 X 45MM
598A
CAP SCREW M8-1.25 X 55
Price
N/A
599
Now: PN03M
HEX NUT M8-1.25
Price
N/A
600
LOCATE PLATE
601
FLAT HD SCR M5-.8 X 16
Price
N/A
602
COMPRESSION SPRING
603
BUSHING
604
PRESS BLOCK
605
SET SCREW M5-.8 X 5
Price
N/A
606
THRUST BEARING 51201
Price
N/A
607
SET SCREW M5-.8 X 5
Price
N/A
608
TENSION LINE
609
SHAFT
610
HANDWHEEL
611
CAP SCREW M6-1 X 25
Price
N/A
612
SQUARE SHAFT
613
Now: PW01M
FLAT WASHER 8MM
Price
N/A
614
CAP SCREW M8-1.25 X 20
Price
N/A
615
UPPER WHEEL HINGE ASSY
616
SET SCREW M10-1.5 X 16
Price
N/A
617
GUIDE BLOCK
618
UPPER WHEEL SHAFT
619
BALL BEARING 6205RS
Price
N/A
620
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
621
BUSHING
622
UPPER WHEEL DIA. 21
623
Now: PW01M
FLAT WASHER 8MM
Price
N/A
624
LOCK WASHER 8MM
Price
N/A
625
CAP SCREW M8-1.25 X 20
Price
N/A
626
CAP SCREW M8-1.25 X 20
Price
N/A
627
LOCK WASHER 8MM
Price
N/A
628
Now: PW01M
FLAT WASHER 8MM
Price
N/A
629
BALL BEARING 6205RS
Price
N/A
630
LOWER WHEEL DIA. 21
631
BUSHING
632
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
633
PULLEY
634
SET SCREW M6-1 X 12
Price
N/A
636
TIRE YELLOW
Price
N/A
637
CAP SCREW M8-1.25 X 20
Price
N/A
638
PULLEY
639
LOWER SHAFT
640
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
642
Now: PVA30
V-BELT A30
Price
N/A
643
BRUSH
644
LOCK NUT M6-1
Price
N/A
645
Now: PW03M
FLAT WASHER 6MM
Price
N/A
646
CAP SCREW M6-1 X 20
Price
N/A
648
Now: PW01M
FLAT WASHER 8MM
Price
N/A
649
LOCK WASHER 8MM
Price
N/A
650
Now: PW05M
FLAT WASHER 4MM
Price
N/A
651
LOCK NUT M6-1
Price
N/A
652
Now: PN03M
HEX NUT M8-1.25
Price
N/A
653
CORD CLAMP 5/16"
654
TAP SCREW M4 X 10
Price
N/A
705
Now: PW01M
FLAT WASHER 8MM
Price
N/A
728
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
740
CORD CONNECTOR 224-201
788
FLANGE SCREW M6-1 X 10
Price
N/A
789
Now: PW03M
FLAT WASHER 6MM
Price
N/A
790
SUPPORT V2.10.04
Price
N/A
791
CORD PROTECTOR 12.7 X 1100
792
CORD BUSHING
793
HEX WRENCH 5MM
Price
N/A
794
HEX WRENCH 6MM
Price
N/A
795
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
796
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
797
STOP PLATE
798
CAP SCREW M5-.8 X 12
Price
N/A
799
Now: PW02M
FLAT WASHER 5MM
Price
N/A

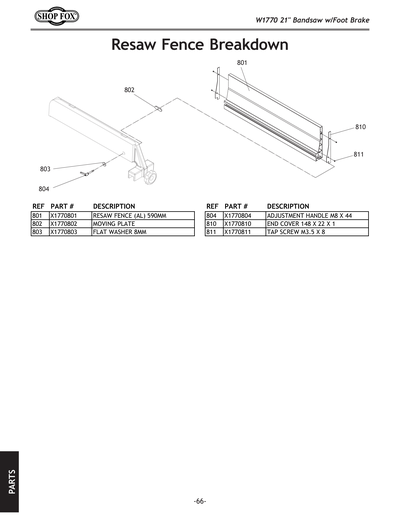

801
RESAW FENCE AL 590MM
802
MOVING PLATE
803
Now: PW01M
FLAT WASHER 8MM
Price
N/A
804
ADJUSTMENT HANDLE M8 X 44
810
END COVER 148 X 22 X 1
811
TAP SCREW M3.5 X 8
Price
N/A
MAN
MANUAL FOR W1770 09/08
